Editing Poe Port; Poe Timer Configuration - Edge-Core ECS2020 Series Web Management Manual

8.2.1 Editing POE port

Click on the " " icon can be configured selected port:

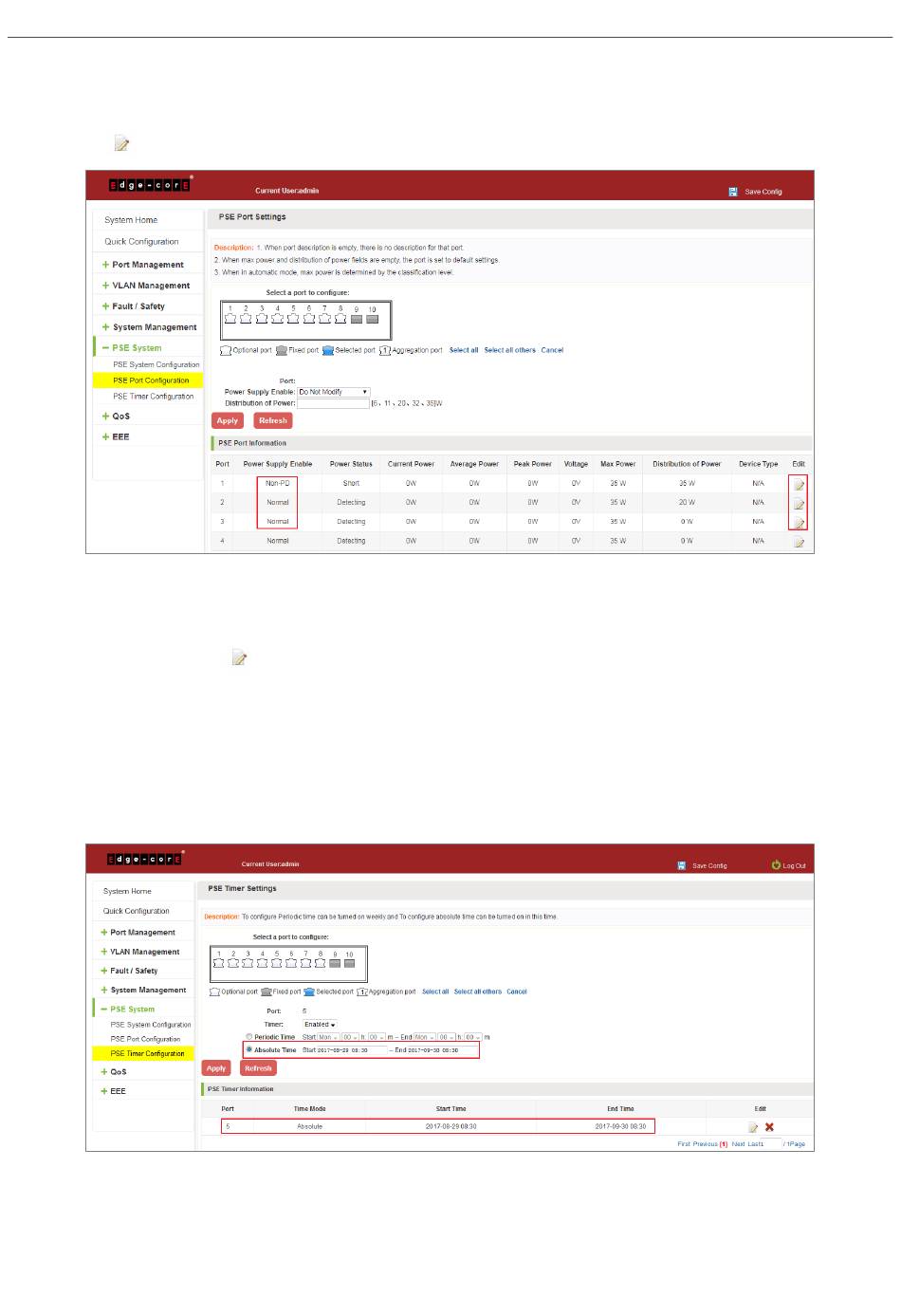

Figure 8-6: Edit the PoE Port
Modify POE port settings follow these steps:
Step 1: Select port and Click" "icon.
Step 2: In the power supply enable, choose disable.

8.3 POE TIMER CONFIGURATION

Click the "PSE System Management" "PoE Timer Configuration" to configure the PoE port absolute and periodic time
on the switch:
Figure 8-7: PoE Timer Absolute Time Configuration
105
