Summary of Contents for Edge-Core ECS2000-50P

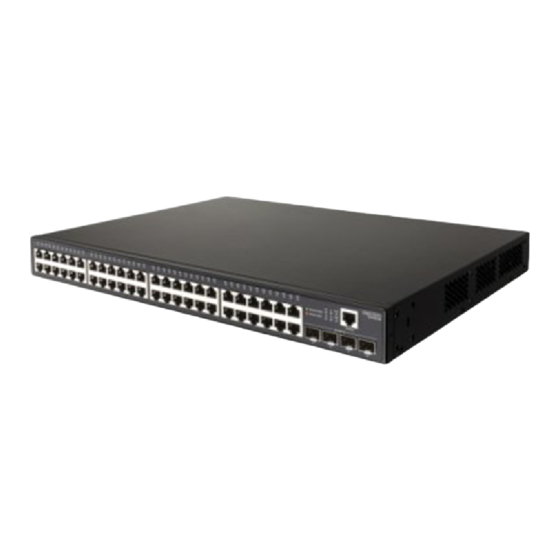

- Page 1 ECS2000-50P 50-Port Layer 2 Installation Guide Gigabit Ethernet PoE Switch www.edge-core.com...
- Page 3 N S T A L L A T I O N U I D E ECS2000-50P G IGABIT THERNET WITCH Layer 2 PoE Switch with 48 10/100/1000BASE-T Ports, and 2 Small Form Factor Pluggable (SFP) Transceiver Slots ECS2000-50P E082012-MW-R01...
-
Page 5: Compliances And Safety Statements
OMPLIANCES AND AFETY TATEMENTS FCC - C LASS This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 6 OMPLIANCES AND AFETY TATEMENTS CE M (EEC) ECLARATION OF ONFORMANCE FOR AFETY This information technology equipment complies with the requirements of the Council Directive 204/108/EC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 2006/95/EC for electrical equipment used within certain voltage limits.
- Page 7 OMPLIANCES AND AFETY TATEMENTS AFETY OMPLIANCE Warning: Fiber Optic Port Safety When using a fiber optic port, never look at the transmit laser while it is powered on. Also, never look directly at the CLASS I fiber TX port and fiber cable ends when they are powered LASER DEVICE Avertissment: Ports pour fibres optiques - sécurité...
- Page 8 OMPLIANCES AND AFETY TATEMENTS OWER AFETY Please read the following safety information carefully before installing the switch: Installation and removal of the unit must be carried out by qualified WARNING: personnel only. The unit must be connected to an earthed (grounded) outlet to comply with ◆...
- Page 9 OMPLIANCES AND AFETY TATEMENTS Power Cord Set U.S.A. and Canada The cord set must be UL-approved and CSA certified. The minimum specifications for the flexible cord are: - No. 18 AWG - not longer than 2 meters, or 16 AWG. - Type SV or SJ - 3-conductor The cord set must have a rated current capacity of at least 10 A...
- Page 10 OMPLIANCES AND AFETY TATEMENTS La prise secteur doit se trouver à proximité de l’appareil et son accès doit ◆ être facile. Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau de cette prise. L’appareil fonctionne à une tension extrêmement basse de sécurité qui est ◆...
- Page 11 OMPLIANCES AND AFETY TATEMENTS Bitte unbedingt vor dem Einbauen des Switches die folgenden Sicherheitsanweisungen durchlesen: Die Installation und der Ausbau des Geräts darf nur durch WARNUNG: Fachpersonal erfolgen. Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose ◆ angeschlossen werden. Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche ◆...
- Page 12 OMPLIANCES AND AFETY TATEMENTS ARNINGS AND AUTIONARY ESSAGES This product does not contain any serviceable user parts. ARNING Installation and removal of the unit must be carried out by ARNING qualified personnel only. When connecting this device to a power outlet, connect the ARNING field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.
- Page 13 OMPLIANCES AND AFETY TATEMENTS ND OF RODUCT This product is manufactured in such a way as to allow for the recovery and disposal of all included electrical components once the product has reached the end of its life. ANUFACTURING ATERIALS There are no hazardous nor ozone-depleting materials in this product.
- Page 14 OMPLIANCES AND AFETY TATEMENTS – 14 –...
-
Page 15: About This Guide
BOUT UIDE URPOSE This guide details the hardware features of the switch, including the physical and performance-related characteristics, and how to install the switch. UDIENCE The guide is intended for use by network administrators who are responsible for installing and setting up network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area Networks). - Page 16 BOUT UIDE – 16 –...
-
Page 17: Table Of Contents
ONTENTS OMPLIANCES AND AFETY TATEMENTS BOUT UIDE ONTENTS ABLES IGURES NTRODUCTION Overview Switch Architecture Network Management Options Power-over-Ethernet Description of Hardware ETWORK LANNING Introduction to Switching Application Examples Collapsed Backbone PoE Connections Network Aggregation Plan Application Notes NSTALLING THE WITCH Selecting a Site Ethernet Cabling Equipment Checklist... - Page 18 ONTENTS Rack-Mounting Connecting to a Power Source Installing an Optional SFP Transceiver AKING ETWORK ONNECTIONS Connecting Network Devices Twisted-Pair Devices Power-over-Ethernet Connections Cabling Guidelines Connecting to PCs, Servers, Hubs and Switches Network Wiring Connections Fiber Optic SFP Devices Connectivity Rules 1000BASE-T Cable Requirements 1000 Mbps Gigabit Ethernet Collision Domain 100 Mbps Fast Ethernet Collision Domain...
-
Page 19: Tables
ABLES Table 1: Supported SFP Transceivers Table 2: Port Status LEDs Table 3: System Status LEDs Table 4: Maximum 1000BASE-T Gigabit Ethernet Cable Length Table 5: Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths Table 6: Maximum 1000BASE-LX Gigabit Ethernet Cable Length Table 7: Maximum 1000BASE-LH Gigabit Ethernet Cable Length Table 8:... - Page 20 ABLES – 20 –...
-
Page 21: Figures
IGURES Figure 1: Front Panel Figure 2: Rear Panel Figure 3: Port and System LEDs Figure 4: Power Supply Inlet Figure 5: Collapsed Backbone Figure 6: Supplying PoE Power Figure 7: Network Aggregation Plan Figure 8: Remote Connections with Fiber Cable Figure 9: Making VLAN Connections Figure 10:... -
Page 22: Introduction
NTRODUCTION VERVIEW The ECS2000-50P is a Gigabit Ethernet Layer 2 PoE switch with 48 10/100/ 1000BASE-T ports, and 2 Small Form Factor Pluggable (SFP) transceiver slots, (see Figure 1, Ports 49-50). The ECS2000-50P also provides PoE power to connected devices. -
Page 23: Switch Architecture
OVER THERNET All 48 RJ-45 ports (1~48) of the ECS2000-50P switch support the IEEE 802.3at standard that enables DC power to be supplied to attached devices using wires in the connecting Ethernet cable. The total PoE power delivered by all ports cannot exceed the 375 W power budget. -
Page 24: Description Of Hardware
| Introduction HAPTER Overview ESCRIPTION OF ARDWARE 10/100/1000BASE-T P ORTS The switch contains 48 RJ-45 ports that operate at 10 Mbps or 100 Mbps, half or full duplex, and 1000 Mbps full duplex. Because all ports on this switch support automatic MDI/MDI-X operation, you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. -
Page 25: Table 1: Supported Sfp Transceivers
| Introduction HAPTER Overview Table 1: Supported SFP Transceivers Media Standard Fiber Diameter (microns) Wavelength (nm) Maximum Distance 1000BASE-SX 50/125 700 m 62.5/125 400 m 1000BASE-LX 50/125 1300 550 m 62.5/125 1300 550 m 9/125 1300 10 km 1000BASE-LH 9/125 1310 35 km 1550... -
Page 26: Table 2: Port Status Leds
| Introduction HAPTER Overview Table 2: Port Status LEDs Condition Status RJ-45 Gigabit Ethernet Ports (Ports 1-48) LINK/ACT On/Flashing Port has established a valid 10/100 Mbps network Amber connection. Flashing indicates activity. On/Flashing Port has established a valid 1000 Mbps network Green connection. -
Page 27: Figure 4: Power Supply Inlet
| Introduction HAPTER Overview UTTON When the Mode button is depressed one time, the port LEDs display PoE information. When the Mode button is depressed a second time, the port LEDs display link and activity information. LED Mode OWER UPPLY NLET There is one power inlet on the rear panel of the switch. -
Page 28: Network Planning
ETWORK LANNING NTRODUCTION TO WITCHING A network switch allows simultaneous transmission of multiple packets via non- crossbar switching. This means that it can partition a network more efficiently than bridges or routers. The switch has, therefore, been recognized as one of the most important building blocks for today’s networking technology. -
Page 29: Poe Connections
| Network Planning HAPTER Application Examples in the near future. In a basic stand-alone configuration, it can provide direct full- duplex connections for up to 50 workstations or servers. You can easily build on this basic configuration, adding direct full-duplex connections to workstations or servers. -
Page 30: Network Aggregation Plan
| Network Planning HAPTER Application Examples In the figure below, the switch is supplying power to three PoE devices. It is also providing dedicated 1000 Mbps full-duplex data connections to these devices. In addition, other non-PoE devices can be connected to the switch. Figure 6: Supplying PoE Power ETWORK GGREGATION... -
Page 31: Figure 8: Remote Connections With Fiber Cable
| Network Planning HAPTER Application Examples EMOTE ONNECTIONS WITH IBER ABLE Fiber optic technology allows for longer cabling than any other media type. A 1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a 1000BASE-LX (SMF) link up to 10 km, a 1000BASE-LH link up to 80 km, and a 100BASE-FX (SMF) link up to 20 km. -
Page 32: Application Notes
| Network Planning HAPTER Application Notes Figure 9: Making VLAN Connections When connecting to a switch that does not support IEEE 802.1Q VLAN tags, use untagged ports. PPLICATION OTES Full-duplex operation only applies to point-to-point access (such as when a switch is attached to a workstation, server, or another switch). - Page 33 | Network Planning HAPTER Application Notes 1000BASE-LH: 80 km (50 miles) for single-mode fiber. ■ 100BASE-FX: 20 km (12 miles) for single-mode fiber. ■ However, power budget constraints must also be considered when calculating the maximum cable length for your specific environment. –...
-
Page 34: Installing The Switch
NSTALLING THE WITCH This chapter describes how to install the switch. ELECTING A The site should: ◆ be at the center of all the devices you want to link and near a power ■ outlet. be able to maintain its temperature within 0 to 50 °C (32 to 122 °F) ■... -
Page 35: Ethernet Cabling
| Installing the Switch HAPTER Ethernet Cabling THERNET ABLING To ensure proper operation when installing the switch into a network, make sure that the current cables are suitable for 10BASE-T, 100BASE-TX, or 1000BASE-T operation. Check the following criteria against the current installation of your network: Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP) ◆... -
Page 36: Equipment Checklist
After unpacking this switch, check the contents to be sure you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment. 50-Port Layer 2 Gigabit Ethernet PoE Switch (ECS2000-50P) ◆ Four adhesive foot pads ◆... -
Page 37: Mounting
| Installing the Switch HAPTER Mounting OUNTING The switch can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site follow. OUNTING Before rack mounting the switch, pay particular attention to the following factors: Temperature: Since the temperature within a rack assembly may be higher ◆... -
Page 38: Figure 11: Attaching The Brackets
| Installing the Switch HAPTER Mounting To rack-mount devices: Attach the brackets to the device using the screws provided in the Bracket Mounting Kit. Figure 11: Attaching the Brackets Mount the device in the rack, using four rack-mounting screws (not provided). -
Page 39: Figure 13: Attaching The Adhesive Feet
| Installing the Switch HAPTER Mounting ESKTOP OR HELF OUNTING Attach the four adhesive feet to the bottom of the first switch. Figure 13: Attaching the Adhesive Feet Set the device on a flat surface near an AC power source, making sure there are at least two inches of space on all sides for proper air flow. -
Page 40: Connecting To A Power Source
| Installing the Switch HAPTER Mounting ONNECTING TO A OWER OURCE To connect a switch to a power source: Insert the power cable plug directly into the AC inlet located at the back of the switch. Figure 14: Power Inlet Plug the other end of the cable into a grounded, 3-pin, AC power source. -
Page 41: Installing An Optional Sfp Transceiver
| Installing the Switch HAPTER Mounting SFP T NSTALLING AN PTIONAL RANSCEIVER Figure 15: Installing an Optional SFP Transceiver into a Slot This switch supports 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, and 100BASE-FX SFP-compatible transceivers. To install an SFP transceiver, do the following: Consider network and cabling requirements to select an appropriate SFP transceiver type. -
Page 42: Making Network Connections
AKING ETWORK ONNECTIONS ONNECTING ETWORK EVICES This switch is designed to be connected to 10, 100, or 1000 Mbps network cards in PCs and servers, as well as to other switches and hubs. It may also be connected to remote devices using optional 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, or 100BASE-FX SFP transceivers. -
Page 43: Cabling Guidelines
| Making Network Connections HAPTER Twisted-Pair Devices The switch is to be connected only to PoE networks without ARNING routing to the outside plant. The switch controls the power and data on a port independently. Power can be requested from a device that already has a data link to the switch. Also, the switch can supply power to a device even if the port’s data connection has been disabled. -
Page 44: Network Wiring Connections
| Making Network Connections HAPTER Twisted-Pair Devices connected to the wiring closet. (See the section "Network Wiring Connections" on page 44.) Otherwise, attach the other end to an available port on the switch. Make sure each twisted pair cable does not exceed 100 meters (328 ft) in length. -
Page 45: Figure 17: Network Wiring Connections
| Making Network Connections HAPTER Twisted-Pair Devices Figure 17: Network Wiring Connections – 45 –... -
Page 46: Fiber Optic Sfp Devices
| Making Network Connections HAPTER Fiber Optic SFP Devices SFP D IBER PTIC EVICES An optional SFP transceiver (1000BASE-SX, 1000BASE-LX, 1000BASE-LH, or 100BASE-FX) can be used for a backbone connection between switches, or for connecting to a high-speed server. Each single-mode fiber port requires 9/125 micron single-mode fiber optic cable with an LC connector at both ends. -
Page 47: Figure 18: Making Fiber Port Connections
| Making Network Connections HAPTER Fiber Optic SFP Devices Figure 18: Making Fiber Port Connections As a connection is made, check the Link LED on the switch corresponding to the port to be sure that the connection is valid. The 1000BASE-SX/LX/LH fiber optic ports operate at 1 Gbps full duplex. The 100BASE-FX fiber optic ports operate at 100 Mbps full duplex. -
Page 48: Connectivity Rules
| Making Network Connections HAPTER Connectivity Rules ONNECTIVITY ULES When adding hubs (repeaters) to your network, please follow the connectivity rules listed in the manuals for these products. However, note that because switches break up the path for connected devices into separate collision domains, you should not include the switch or connected cabling in your calculations for cascade length involving other devices. -
Page 49: 100 Mbps Fast Ethernet Collision Domain
| Making Network Connections HAPTER Connectivity Rules Table 6: Maximum 1000BASE-LX Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length Connector 9/125 micron single- 2 m - 10 km (7 ft - 6.4 miles) LC mode fiber Table 7: Maximum 1000BASE-LH Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length... -
Page 50: Cable Labeling And Connection Records
| Making Network Connections HAPTER Cable Labeling and Connection Records ABLE ABELING AND ONNECTION ECORDS When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. Doing so will enable you to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption. - Page 51 | Making Network Connections HAPTER Cable Labeling and Connection Records – 51 –...
-
Page 52: Diagnosing Led Indicators
ROUBLESHOOTING LED I IAGNOSING NDICATORS Table 11: LED Indicators LED Status Action Power LED is Off ◆ Check connections between the switch, the power cord, and the wall outlet. ◆ Contact your dealer for assistance. Diag LED is ◆ Power cycle the switch to try and clear the condition. Flashing Amber ◆... -
Page 53: Troubleshooting
| Troubleshooting PPENDIX Installation NSTALLATION Verify that all system components have been properly installed. If one or more components appear to be malfunctioning (such as the power cord or network cabling), test them in an alternate environment where you are sure that all the other components are functioning properly. -
Page 54: Specifications
PECIFICATIONS HYSICAL HARACTERISTICS ORTS 48 10/100/1000BASE-T, with auto-negotiation 2 100/1000BASE-SFP transceiver slots ETWORK NTERFACE Ports 1-48: RJ-45 connector, auto MDI/MDI-X 10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) 1000BASE-T: RJ-45 (100-ohm, UTP cable; Category 5, 5e or better) *Maximum Cable Length - 100 m (328 ft) Ports 49-50: SFP transceiver slots 100BASE-FX, 1000BASE-SX,1000BASE-LX, 1000BASE-LH, 1000BASE-T... - Page 55 | Specifications PPENDIX Physical Characteristics System: Power, Diag, PoE Port: Status (Link, Activity, PoE) EIGHT 5.19 kg (11.43 lbs) (W x D x H) 44.0 x 35.0 x4.45 cm (17.32 x 13.77 x 1.75 in.) EMPERATURE Operating: 0°C to 50°C (32°F to 122°F) Storage: -40°C to 70°C (-40°F to 158°F) UMIDITY Operating: 15% to 95% (non-condensing)
-
Page 56: Switch Features
| Specifications PPENDIX Switch Features WITCH EATURES ORWARDING Store-and-forward HROUGHPUT Wire speed ONTROL Full Duplex: IEEE 802.3x Half Duplex: Back pressure ANAGEMENT EATURES ANAGEMENT Web, or SNMP manager TANDARDS IEEE 802.3-2005 Ethernet, Fast Ethernet, Gigabit Ethernet Full-duplex flow control Link Aggregation Control Protocol IEEE802.3at Power-over-Ethernet IEEE 802.1Q IEEE 802.1P... -
Page 57: Compliances
| Specifications PPENDIX Compliances OMPLIANCES CE M MISSIONS FCC Class A EN 55022 Class A CISPR 22/AS/NZS CISPR Class A VCCI Class A MMUNITY EN55024/CISPR 24 AFETY UL/C-UL (CSA 22.2 No 60950-1 & UL 60950-1) CB (IEC 60950-1/ EN60950-1) – 57 –... - Page 59 ECS2000-50P E082012-MW-R01...
