- Page 1 IR CONTROL 8 IR CONTROL 8 ™ INFRARED EXTENDER SET USER MANUAL GEBRAUCHSANLEITUNG GUIDE UTILISATEUR MODO DE EMPLEO MANUALE D’ISTRUZIONE 27 GEBRUIKSAANWIJZING 20326 / 20091221 • IR CONTROL 8 © ALL RIGHTS RESERVED MARMITEK ®...
- Page 2 © MARMITEK...
-
Page 3: Safety Warnings
The IR CONTROL 8™ makes it possible to control up to 8 A/V devices while these are in a closed cupboard or when your A/V equipment is out of sight. The IR CONTROL 8™ is a universal IR extender set and is exchangeable with several other IR products of Marmitek and many other makes. -
Page 4: Contents Of The Package

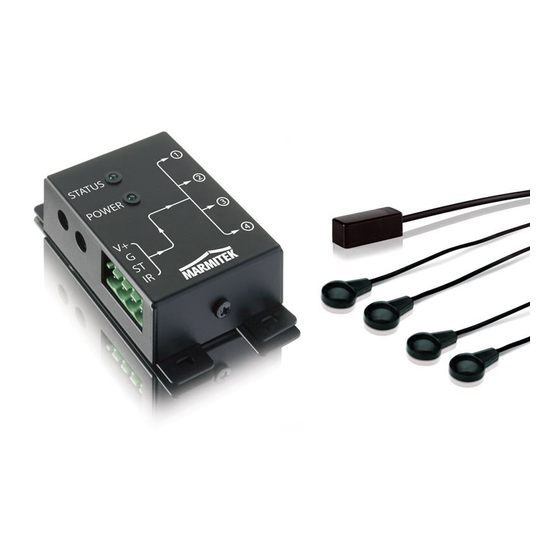

Connection for max. 3 IR receiver(s) (1 x supplied) 4. (EMITTERS 1 till 4) Connection for max. 4 IR Extension cables with each 2 IR LEDs. (2 x supplied) 5. Fastening holes for stable assembling of the IR Module on a smooth underground. © MARMITEK... - Page 5 Connect the power adapter to the ‘POWER’ connection of the IR module and plug the adapter to a wall plug. Check if the ‘POWER’ LED is on. IR CONTROL 8...
-
Page 6: Frequently Asked Questions
Both the built-in and the built-on IR Receiver has a reception sensibility of about 10 metres at an opening Angle of 90 degrees. Range is also dependent on the remote control used. The IR reception indication LED in the IR Receiver will light up at reception of an IR signal. © MARMITEK... -
Page 7: Technical Data
Relocate the IR LED or IR Blaster so that less infrared light is received via the IR window. Do you have questions that were not answered in the above mentioned ? Then look at www.marmitek.com. 5. TECHNICAL DATA IR Module Feed POWER: 100-240VAC 50/60Hz, 12VC 500mA (supplied). -
Page 8: Optional Accessories
A/V devices, then make your choice from the complete range of Marmitek universal remote controls. These replace almost every remote control you are using at the moment. More information about these so called universal remote controls can be found at www.marmitek.com.
