- Page 1 IR 100 USB ™ IR 100 USB USER MANUAL 20618/ 20140324 • IR 100 USB ™ ALL RIGHTS RESERVED MARMITEK ©...
-
Page 3: Safety Warnings

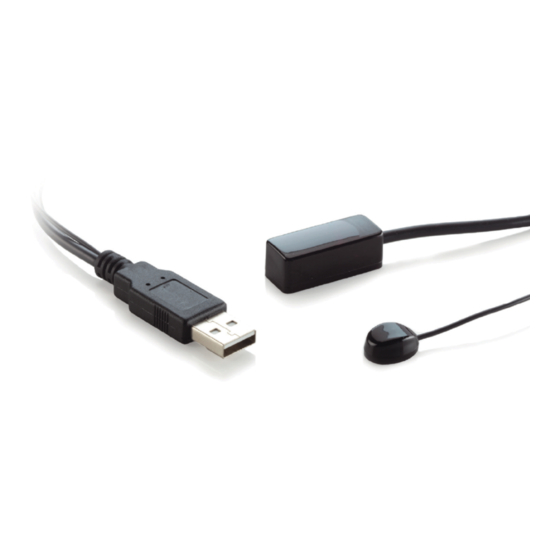

INTRODUCTION Congratulation on buying the IR 100 USB™. With the IR 100 USB ™ you can extend the IR (infra-red) signals from your own remote control. The IR 100 USB™ gives you the opportunity to control your A/V equipment when it’s stored away in a closed cabinet or placed out of sight. -
Page 4: How Does It Work
(1) on your A/V equipment (Digital TV decoder, Blu-ray player, audio installation) or TV to power the IR 100 USB. The IR receiver (2) must be installed within your remote’s line of sight and you should stick the IR blaster LED (3) inside the cabinet. - Page 5 4.2 LOCATING THE IR RECEIVER Place the very small IR receiver (2) that comes with the IR 100 USB™ so that it can be seen by your (infrared) remote control and receive the commands (max. 8 metres). The most logical location for the IR receiver is, for example, on the cabinet in which the A/V equipment is located or near the TV.
-
Page 6: Frequently Asked Questions
Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com TECHNICAL DATA IR 100 USB™ Power: USB 5VDC 500mA Frequency range: 30-60 KHz. IR reception range: ±... - Page 7 IR 100 USB™...
-
Page 8: Declaration Of Conformity
DECLARATION OF CONFORMITY Hereby, Marmitek BV, declares that this IR 100 USB™ is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2004/108/ec of the european parliament and of the council of 15 December 2004 on... - Page 9 Con ciò, Marmitek BV, dichiara che il IR 100 USB™ è conforme ai requisiti essenziali ed alter disposizioni relative alla Direttiva: Direttiva 2004/108/ce del parlamento europeo e del consiglio del 15 dicembre 2004 concernente il ravvicinamento delle legislazioni degli Stati membri relative alla compatibilità...
- Page 10 © MARMITEK...
- Page 11 IR 100 USB™...
