4. Use a spanner to close the shut-off valves of the
heat source (behind the covers).
5.
heat source.
Unit with
without cooling:
Unit with
Subject to change without notice | 83056700dUK – Translation into English of the original German operating manual | ait-deutschland GmbH

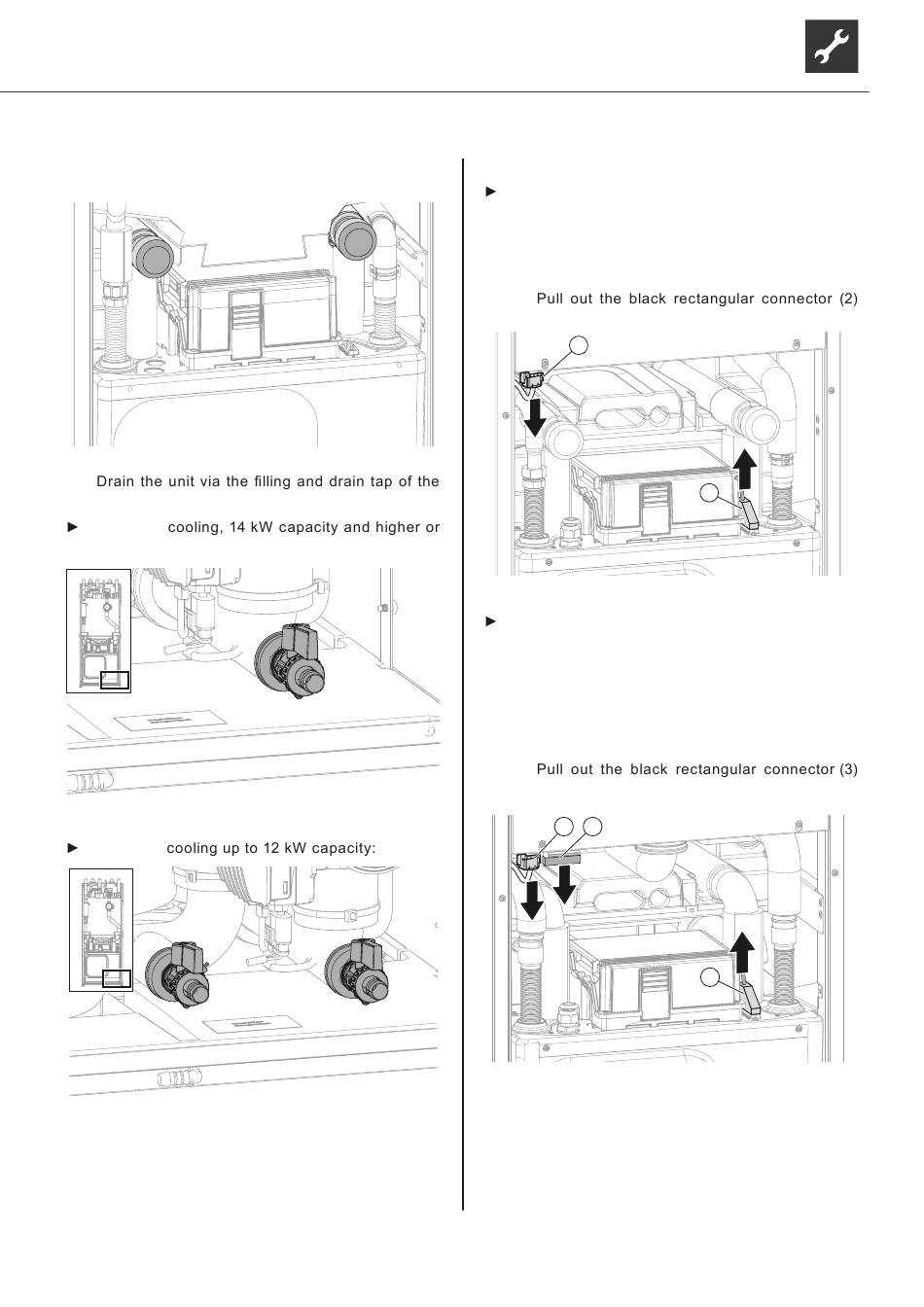

6. Disconnect the electrical connections:
Unit up to 12 kW capacity:
– Disconnect 2 white connectors (1) at the
bottom of the electrical control cabinet. To
do this, release the lugs by pressing on the
sides of the connectors.
–
at the top of the module box.
1
Unit with 14 kW capacity and higher:
– Disconnect connector (1) at the bottom of the
electrical control cabinet.
– Disconnect connector (2) at the bottom of
the electrical control cabinet. To do this,
remove the control cabinet cover and undo
the connector from the inside.
–
at the top of the module box.
1 2
2
3
