3B

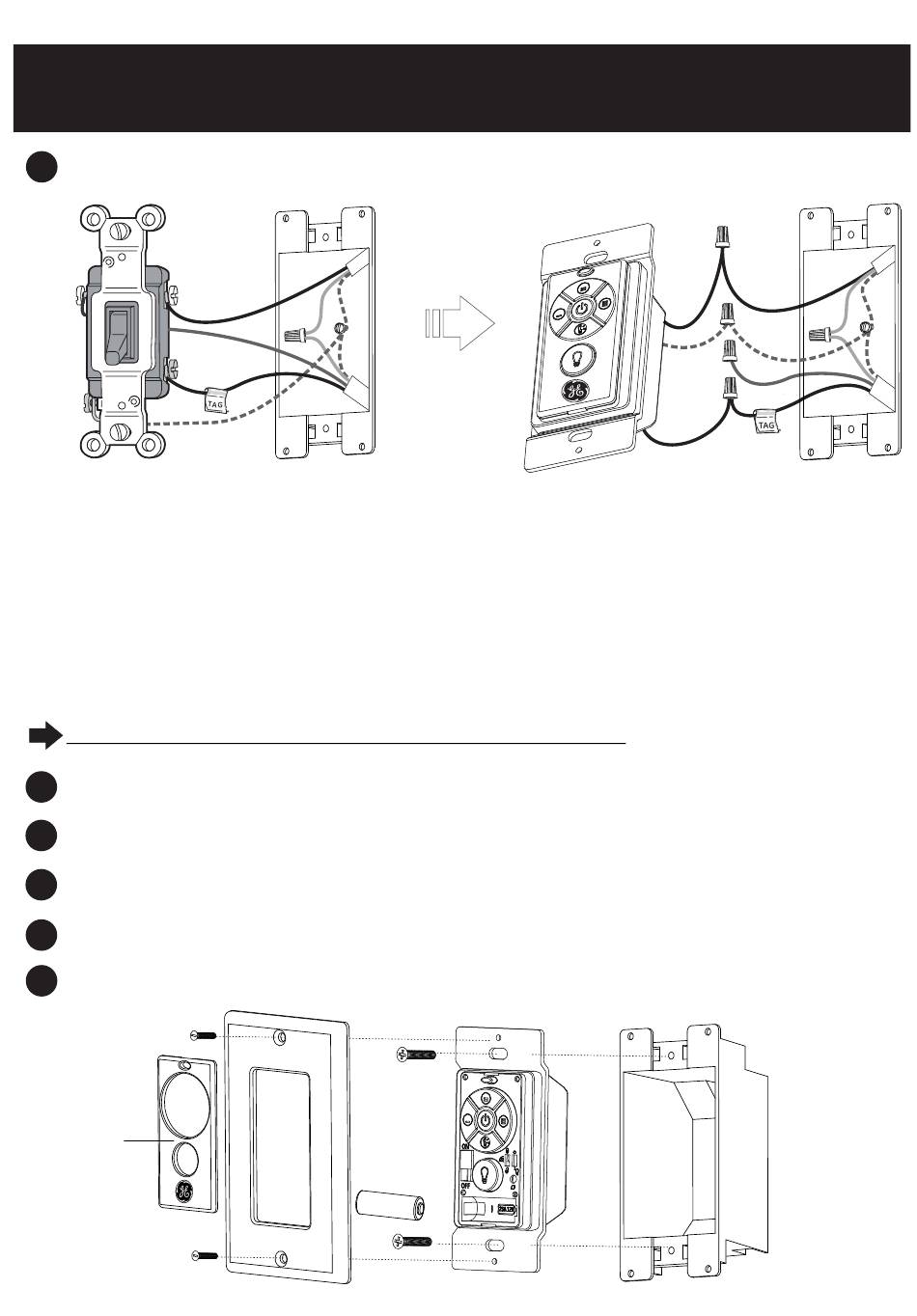

3-WAY APPLICATION
- Connect one black wire from the wall control to the tagged wires removed from the switch.
- Connect second black wire from the wall control to the other black wire removed from the switch.
If you had taped together two black wires from the switch, connect both wires to the control.
- Cap off the red wire removed from the switch.
-If your switch box has a ground wire (green or bare copper), connect the green wire from the wall
control to the ground wire removed from the switch. If not , connect the green wire from the wall
control directly to one of the screws from the switch box.
Secure wire nuts to ensure that no bare wire is exposed.
REFER TO DIAGRAM SHOWN BELOW TO COMPLETE INSTALLATION
4
Secure wall control to the switch box using the screws provided.
5
Install the 23A 12V battery provided into the compartment .
6
Secure a decor style wall plate to the wall control using the screws that come with the wall plate.
7
Slide the ON/OFF switch on the wall control to "ON" position.
8
Attach the panel to the wall control, aligning the holes.
Panel
3
Wall Control Installation
BLACK
RED
GREEN
/BARE
BLACK
BLACK
GREEN
GREEN
/BARE
RED
BLACK
