DESCRIPTION

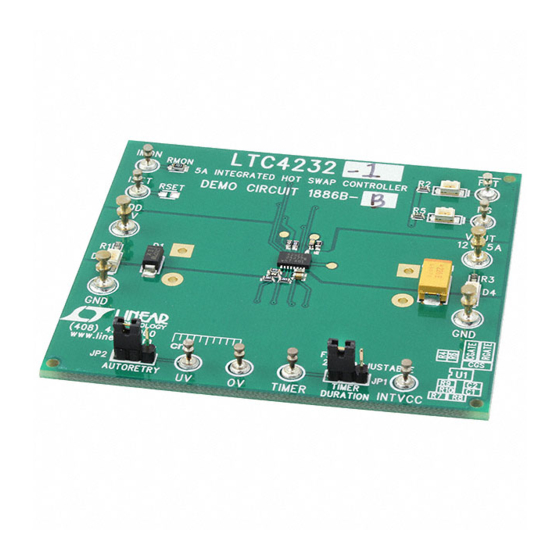

Demonstration circuit 1886B features the
the
LTC4232-1
5A integrated Hot Swap™ controllers. The
LTC4232 is ideally suited for demanding power distribution
control in 2.9V to 15V applications for hot board inser-
tion protection, high side power switching, and electronic
circuit breaker functions. The LTC4232 provides a rich set
of features to support Hot Swap applications including:
• 2% accurate undervoltage and overvoltage comparators
• Thermal protection
• Adjustable inrush current control
• Adjustable, 10% accurate current limit with program-
mable cutout time
• Foldback current limiting
• Programmable output voltage ramp rate
• Configurable auto-retry or latchoff on overcurrent faults
• Power good and fault outputs
• Debounce time during supply turn-on
PERFORMANCE SUMMARY
SYMBOL
PARAMETER
V
Board Input Supply Range
DD
dV
/dt
GATE Pin Turn-On Ramp Rate
GATE
R
MOSFET + Sense Resistor On-Resistance
ON
I
Current Limit Threshold
LIM(TH)
V
OV, UV, FB Pin Threshold Voltage
TH
V
UV Pin Reset Threshold Voltage
UV(RTH)
V
FB Pin Power Good Hysteresis
FB(HYST)
t
Auto-Retry Turn-On Delay (Internal)
D(AUTO-RETRY)
T
Timer Period for ADJUSTABLE Option
ADJUST

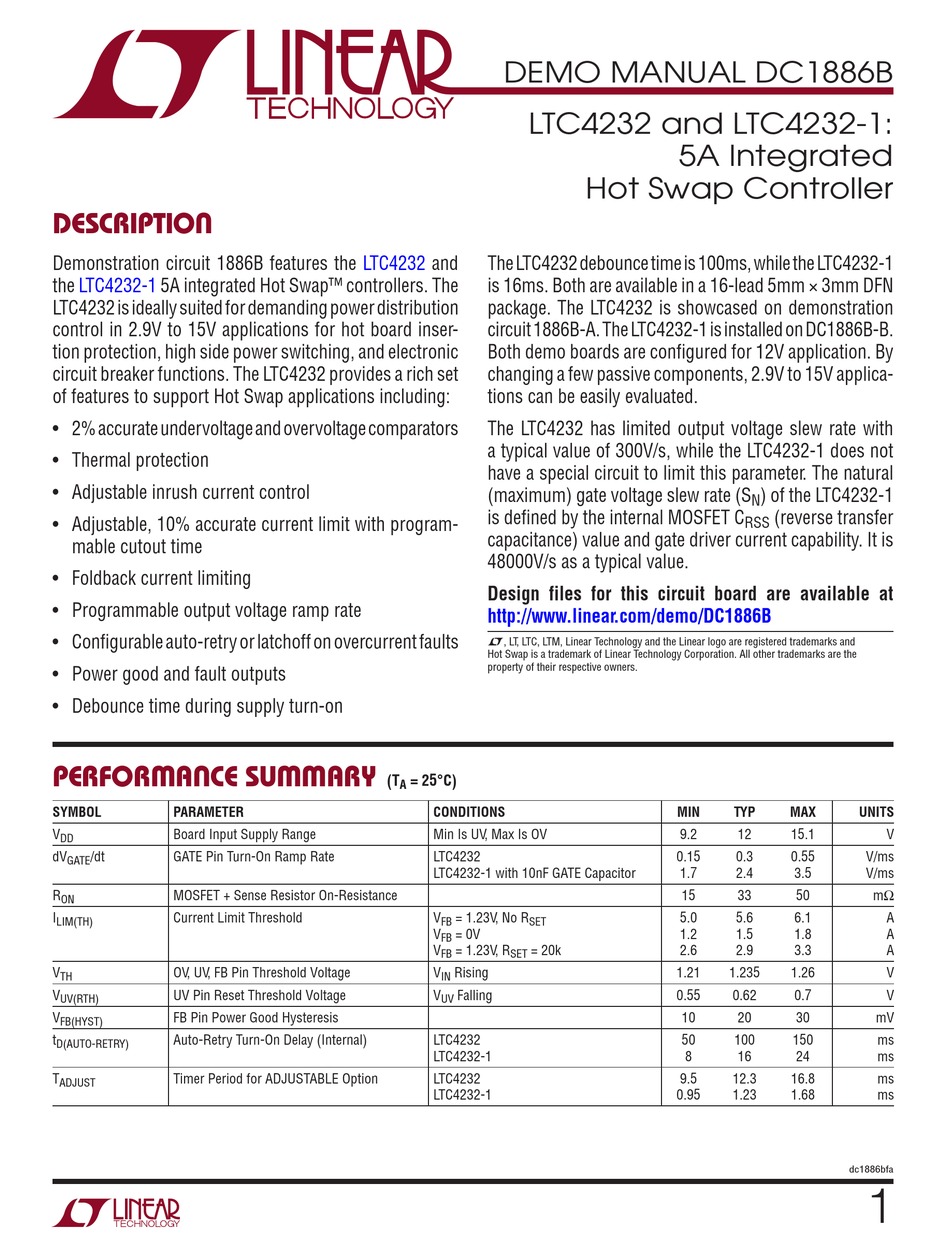

DEMO MANUAL DC1886B
LTC4232 and LTC4232-1:
LTC4232
and
The LTC4232 debounce time is 100ms, while the LTC4232-1
is 16ms. Both are available in a 16-lead 5mm × 3mm DFN
package. The LTC4232 is showcased on demonstration
circuit 1886B-A. The LTC4232-1 is installed on DC1886B-B.
Both demo boards are configured for 12V application. By
changing a few passive components, 2.9V to 15V applica-
tions can be easily evaluated.
The LTC4232 has limited output voltage slew rate with
a typical value of 300V/s, while the LTC4232-1 does not
have a special circuit to limit this parameter. The natural
(maximum) gate voltage slew rate (S
is defined by the internal MOSFET C
capacitance) value and gate driver current capability. It is
48000V/s as a typical value.
Design files for this circuit board are available at
http://www.linear.com/demo/DC1886B
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
Hot Swap is a trademark of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
(T
= 25°C)
A
CONDITIONS
Min Is UV, Max Is OV
LTC4232
LTC4232-1 with 10nF GATE Capacitor
V
= 1.23V, No R
FB
SET
V
= 0V
FB
V
= 1.23V, R
= 20k
FB
SET
V
Rising
IN
V
Falling
UV
LTC4232
LTC4232-1
LTC4232
LTC4232-1
5A Integrated
Hot Swap Controller
) of the LTC4232-1
N
RSS
MIN
TYP
9.2
12
0.15
0.3
1.7
2.4
15
33
5.0
5.6
1.2
1.5
2.6
2.9
1.21
1.235
0.55
0.62
10
20
50
100
8
16
9.5
12.3
0.95
1.23
(reverse transfer
MAX
UNITS
15.1
V
0.55
V/ms
3.5
V/ms
50
mΩ
6.1
A
1.8
A
3.3
A
1.26
V
0.7
V
30
mV
150
ms
24
ms
16.8
ms
1.68
ms
dc1886bfa
1
