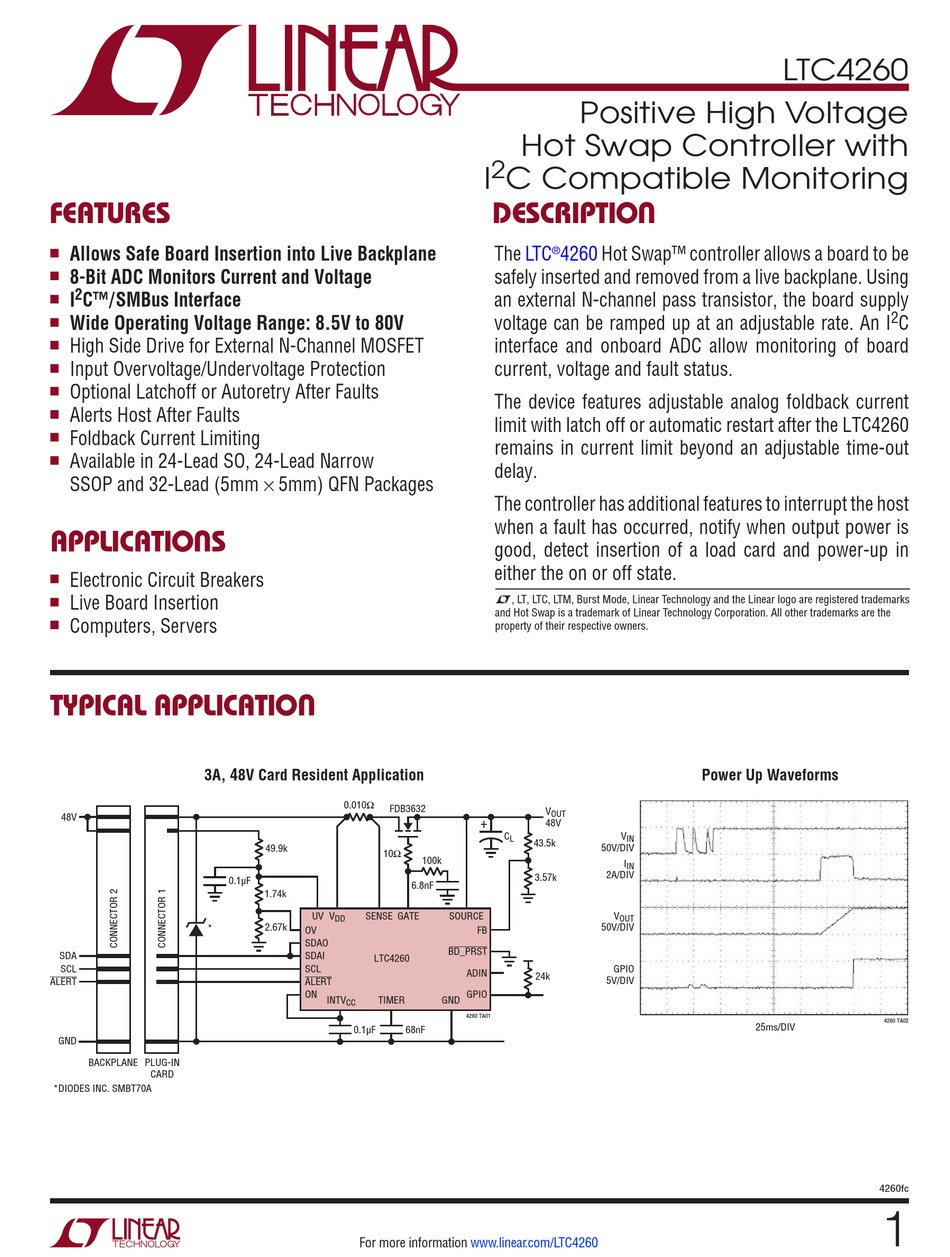

FeaTures
Allows Safe Board Insertion into Live Backplane
n
8-Bit ADC Monitors Current and Voltage
n
2
I
C™/SMBus Interface
n
Wide Operating Voltage Range: 8.5V to 80V
n
High Side Drive for External N-Channel MOSFET
n
Input Overvoltage/Undervoltage Protection
n
Optional Latchoff or Autoretry After Faults
n
Alerts Host After Faults
n
Foldback Current Limiting
n
Available in 24-Lead SO, 24-Lead Narrow
n
SSOP and 32-Lead (5mm × 5mm) QFN Packages
applicaTions
Electronic Circuit Breakers
n
Live Board Insertion
n
Computers, Servers
n
Typical applicaTion
3A, 48V Card Resident Application
48V
0.1µF
*
SDA
SCL
ALERT
GND
BACKPLANE PLUG-IN
CARD
*DIODES INC. SMBT70A
0.010
FDB3632
49.9k
10
100k
6.8nF
1.74k
UV
V
SENSE
GATE
DD
2.67k
OV
SDAO
SDAI
LTC4260
SCL
ALERT
ON
INTV
TIMER
GND
CC
0.1µF
68nF
For more information
Positive High Voltage
Hot Swap Controller with
2
I
C Compatible Monitoring
DescripTion
The
LTC
4260
Hot Swap™ controller allows a board to be
®
safely inserted and removed from a live backplane. Using
an external N-channel pass transistor, the board supply
voltage can be ramped up at an adjustable rate. An I
interface and onboard ADC allow monitoring of board
current, voltage and fault status.
The device features adjustable analog foldback current
limit with latch off or automatic restart after the LTC4260
remains in current limit beyond an adjustable time-out
delay.
The controller has additional features to interrupt the host
when a fault has occurred, notify when output power is
good, detect insertion of a load card and power-up in
either the on or off state.
L, LT, LTC, LTM, Burst Mode, Linear Technology and the Linear logo are registered trademarks
and Hot Swap is a trademark of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
V
OUT
+
48V
C
V
L
IN
43.5k
50V/DIV
I
IN
2A/DIV
3.57k
SOURCE
V
OUT
50V/DIV
FB
BD_PRST
GPIO
ADIN
24k
5V/DIV
GPIO
4260 TA01
www.linear.com/LTC4260
LTC4260
Power Up Waveforms
C
= 1000F
L
25ms/DIV
2
C
4260 TA02
4260fc
1
