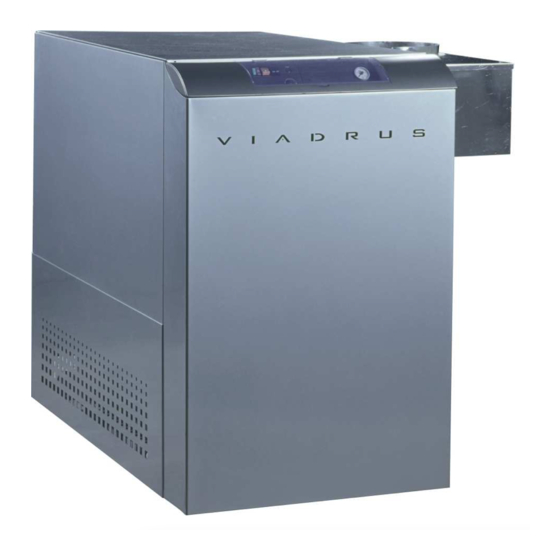

VIADRUS G 90
Manual for assembly of boiler
GB_
GB_2017_23 ND
2015_26
_ND

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G 90 8 and is the answer not in the manual?

Questions and answers

Related Manuals for Viadrus G 90 8

Summary of Contents for Viadrus G 90 8

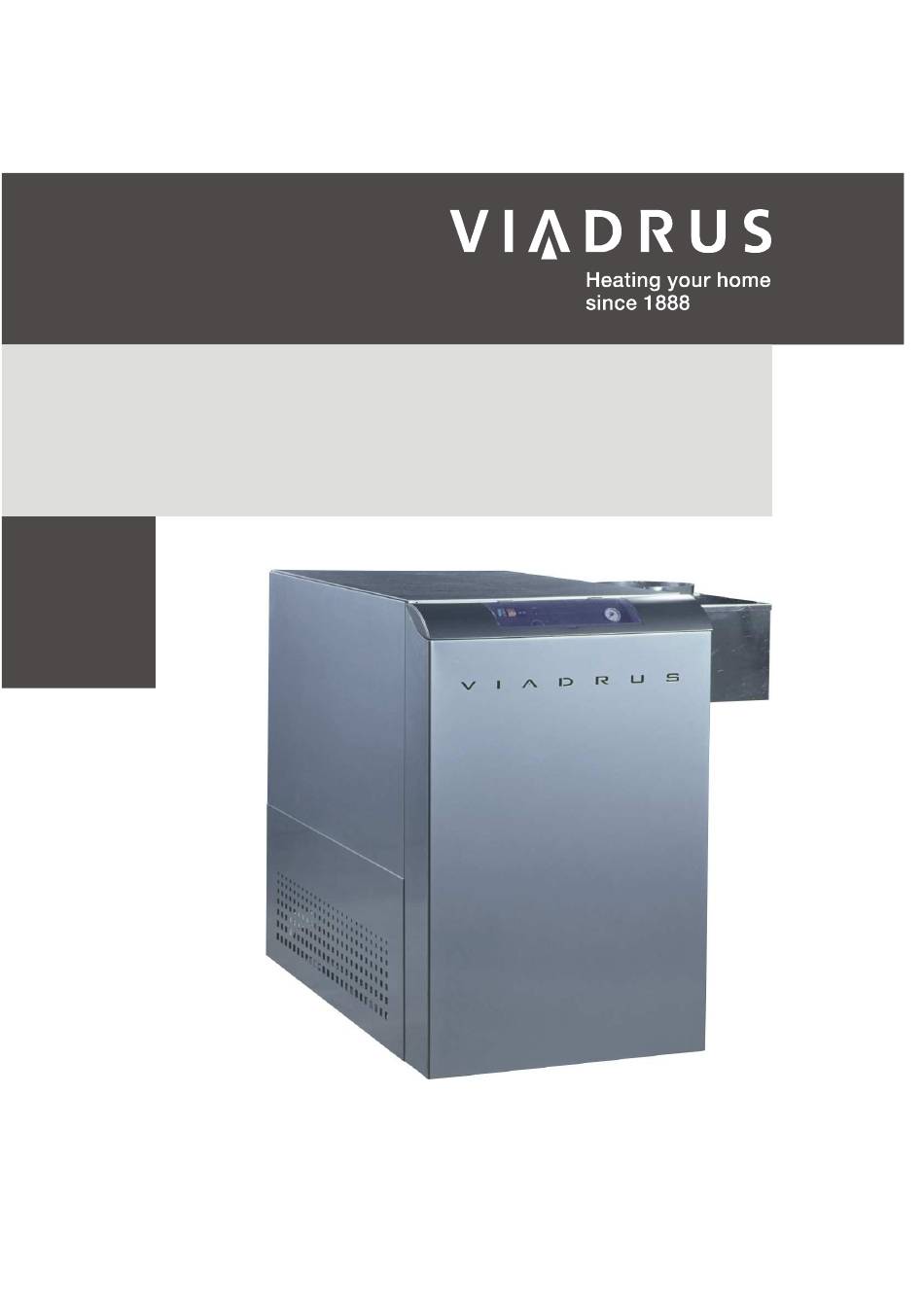

  • Page 1 VIADRUS G 90 Manual for assembly of boiler GB_2017_23 ND 2015_26...

  • Page 2: Table Of Contents

    Contents page Boiler technical data ....................................3 Boiler Installation ......................................5 Pedestal Installation ....................................5 Binding of the Boiler Body ..................................5 Installation of tubing, fittings and a well ..............................6 Installation of a partitioned horizontal draught interrupter ........................7 Installation of burner ....................................

  • Page 3: Boiler Technical Data

    Boiler technical data Tab. №. 1 Dimensions, service temperatures and electric parameters of the boiler Number of sections Appliance category Weight Water space volume 27,7 34,3 40,9 50,8 Diameter of smoke socket Boiler overall dimensions - depth 1155 1315 1555 - width x height 878,5 x 1160 941x1160...
  • Page 4 Gas inlet Number of sections L [mm] 1155 1315 1555 L1 [mm] 1135 1375 A [mm] 878,5 D [mm]...

  • Page 5: Boiler Installation

    Boiler Installation Important Cautions: Boiler Installation may be carried out exclusively by contractual arrangement with approved and manufacturer’s accredited service organization Connections for heating and return water are situated always on one side of the boiler, right or left, in conformance to the space disposition of the boiler room.

  • Page 6: Installation Of Tubing, Fittings And A Well

    Ensure that the sealant paste supplied by the manufacturer is providing a perfect seal. 10. Boiler body is to be fastened to the pedestal, using 4 pc of M8 x 25 bolts, M 8 nuts and washers Ø 8. 11. Boiler sealant then should be liberally and thoroughly applied to the contact surface between the protective pedestal cover and the boiler body;...

  • Page 7: Installation Of A Partitioned Horizontal Draught Interrupter

    Assembly of distribution tube (left) Insert the plastic distribution tube into plug G 1“ with the opposite end than the rectangular cut out on the distribution tube, then insert it into reduction G 1 1/2“/ 1/2“ a screw together. Insert the whole set of the distribution tube (with plug and reduction) into the do lower distance orifice of the right end section and screw up (plug welded on the tube must be directed upwards).

  • Page 8: Installation Of The Gas Armature

    Installation of the gas armature List of parts needed gas armature assembly (twins of gas valves HONEYWELL or a gas manifold DUNGS ZRDLE 412 with attached gas branch) 1 pc gas intake tube leading to the pilot from left (right) Installation procedure Mount the gas armature over the flange from the side opposite to that where the gas distributor is blanked out, in keeping the selected direction (from left or right)

  • Page 9: Electrical Panel Installation

    Electrical Panel installation Installation of the Distributing Box List of parts needed 1 pc Switch box 1 pc End piece of the tube PG 48 1 pc Installation Console (large) 1 pc Nut of the end piece of the tube PG 48 1 pc Installation Console (small) 600 mm...

  • Page 10: Electrical Panel Installation

    Further line wires No.10,11,15,22,,27,28,45 and 55 are connected to the ionization automatics. The remaining line wires put through the end piece of the protective tube PG48, and then the actual tube is inserted over the conductors. Line wire 90, connected to the igniting electrode, is to be inserted through the rubber bushing Ø 13. Conduit no.

  • Page 11: Version 10, 12, 15 Links Automatics Honeywell, Valve Honeywell

    Version 10, 12, 15 links automatics HONEYWELL, valve HONEYWELL 3.2.1 Installation of the Distributing Box List of parts needed 1 pc Switch box 1 pc End piece of the tube PG 48 1 pc Installation Console (large) 1 pc Nut of the end piece of the tube PG 48 1 pc Installation Console (small) 600 mm...

  • Page 12: Completion Of The Electrical Installation

    H2 - c.n. 19.40 H3 - c.n. 29.41 S3 - c.n. 27 S2 - c.n. 24,25 F2 - c.n. 6,7 Green and yellow wire no.59 connect to the electrical panel console Green-yellow wire no.70 will connect the panel console with the Boiler body Cable cover tube PG36 should be fastened into end pieces situated on the Distribution Box and the Electrical Panel Console 3.2.3 Completion of the Electrical Installation...

  • Page 13: Electrical Panel Installation

    3.3.2 Electrical Panel installation List of parts needed 1 pc Power module preconnected 1 pc End piece of the tube PG 48 1 pc Nut of the end piece of the tube PG 48 1 pc End piece of the tube PG 36 1 pc Nut of the end piece of the tube PG 36 Installation procedure...

  • Page 14: Electrical Connections Flow Sheet

    Electrical connections flow sheet Elementary wiring diagram of VIADRUS G 90 – 8 sectional boiler for Honeywell version At VIADRUS G 90 version – 8 sections there isn’t used the tightness watching system at SP2 gas fitting...
  • Page 15 Burner Wiring diagram of 8 sectional VIADRUS G 90 boiler for Honeywell version...
  • Page 16 Panel console Wiring diagram of 8 sectional VIADRUS G 90 boiler for Honeywell version...
  • Page 17 Elementary wiring diagram of VIADRUS G 90 – 10, 12, 15 sectional boiler for Honeywell version...
  • Page 18 Burner Wiring diagram of 10, 12, 15 sectional VIADRUS G 90 boiler for Honeywell version...
  • Page 19 Panel console Wiring diagram of 10, 12, 15 sectional VIADRUS G 90 boiler for Honeywell version...
  • Page 20 Elementary wiring diagram of VIADRUS G 90 – 10, 12, 15 sectional boiler for DUNGS version...
  • Page 21 Terminal plate console Burner Wiring diagram of 10, 12, 15 sectional VIADRUS G 90 boiler for DUNGS version...
  • Page 22 Wiring diagram of 10, 12, 15 sectional VIADRUS G 90 boiler for DUNGS version Additional directives for installation and operation are contained in the “Manual for operation and Installation of Boiler VIADRUS G 90”, also included in the shipment.
  • Page 24 VIADRUS G 90 VIADRUS a.s. Bezručova 300 | CZ - 735 81 | Bohumín E-mail : info@viadrus.cz | www.viadrus.cz...

This manual is also suitable for:

G 90 15G 90 12G 90 10G 90 series
