ActionTec R4500U User Manual page 12

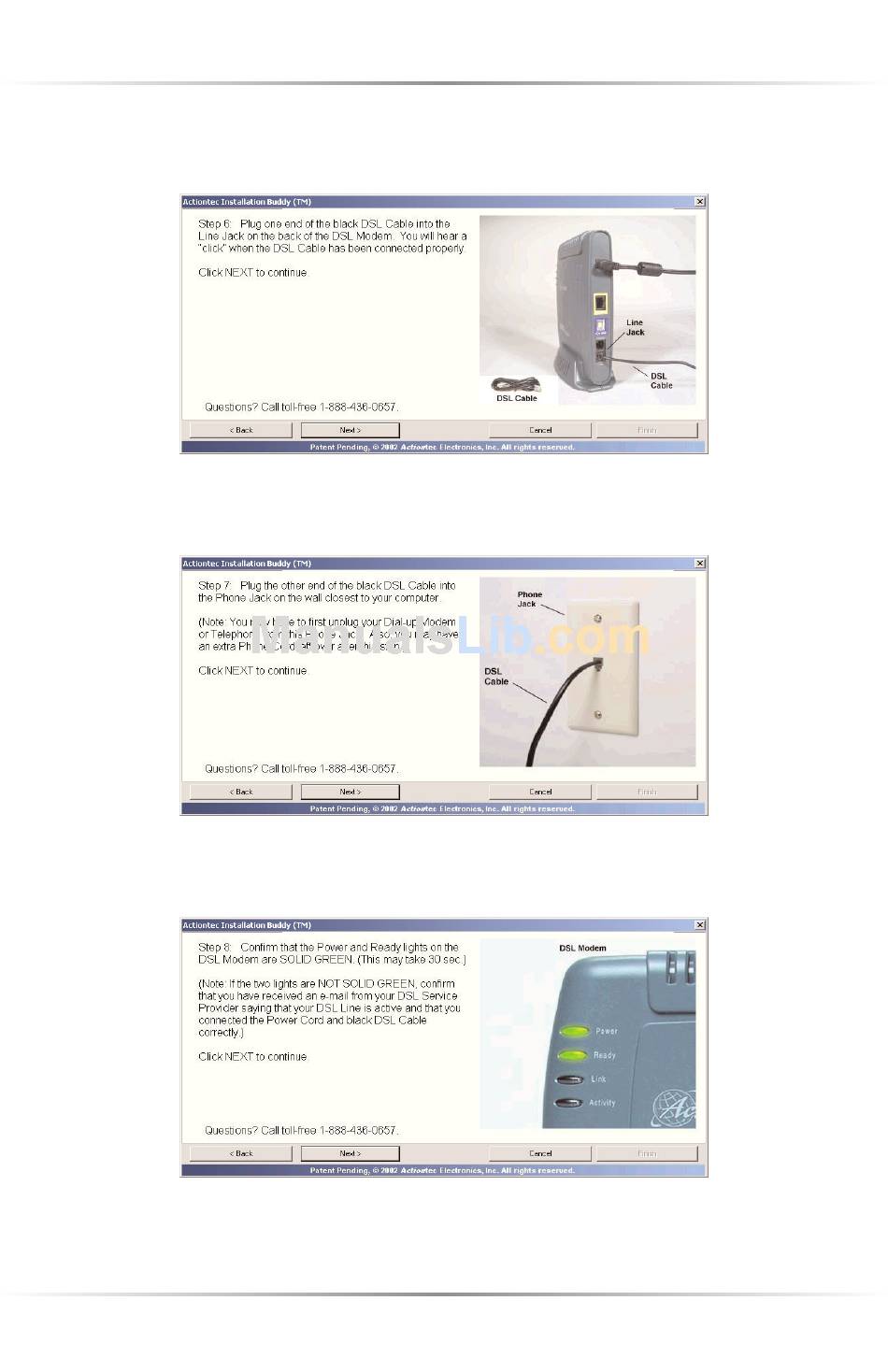

11. The next window appears. Plug one end of the Black DSL Cable into the
Line Jack on the back of the Modem, then click Next.
12. When the next window appears, plug the other end of the Black DSL Cable
into the Phone Jack nearest to the computer, then click Next.
13. When the next window appears, confirm the Power and Ready Lights on the
Modem glow steadily green. This may take up to 30 seconds. Click Next.
☞
Note: If the Power and Ready Lights on the Modem are not solid
green, confirm your DSL service provider has activated the DSL
line, and check all connections to the Modem.
Chapter 2 Setting Up the Modem
9
