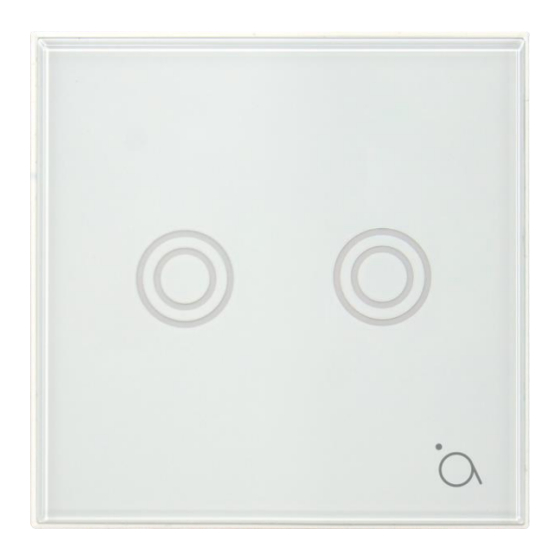

Air Live SA-105 User Manual

Dual relay touch wall switch
Hide thumbs

Advertisement

Quick Links

Download this manual
SA-105
Dual Relay Touch Wall
Switch

User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SA-105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Air Live SA-105

Summary of Contents for Air Live SA-105

  • Page 1: User Manual

    SA-105 Dual Relay Touch Wall Switch User Manual...
  • Page 2 This product contains some codes from GPL. In compliance with GPL agreement, AirLive will publish the GPL codes on our website. Please go to www.airlive.com and go to the "Support->GPL" menu to download source code. All Trademarks are properties of their respective holders. AirLive SA-105 User Manual...
  • Page 3 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. AirLive SA-105 User Manual...

  • Page 4: Table Of Contents

    1.1 Adding to Z-WaveTM Network ............3 1.2 LED Indication ................... 4 1.3 Choosing a Suitable Location ............4 1.4 Installation and Basic Operation ............5 1.5 Association and Parameter ..............7 1.6 Specifications .................. 10 AirLive SA-105 User Manual...

  • Page 5: Overview

    Overview The SA-105, is a Z-Wave plus compliant Z-Wave Dual Relay Touch Wall Switch to replace your current light switch with a Z-Wave included one. The Z-Wave command is translated to a switching command. The wall mounted switch is a component of the lighting control system.

  • Page 6: Adding To Z-Wavetm Network

    Note: This switch must be “Included in the Network” where it will be permanently installed. The proper operation of the SA-105 in the mesh network is dependent on knowing its location with respect to other nodes. You cannot “test bench” configure this switch and then install it.

  • Page 7: Led Indication

    Back light is enabled and Relay is on 1.3 Choosing a Suitable Location The SA-105 Z-Wave Wall Switch can replace your original Switch the location there for would be the same as your original wall switch. Do not place the switch in a wet environment.

  • Page 8: Installation And Basic Operation

    1.4 Installation and Basic Operation Step 1 Connection diagram of SA-105. Note: A Neutral wire is required for the correct operation. Live Wire (Input) Output L1 Output L2 Neutral Wire (Input) Step 2 Removal of front cover. Carefully use a flathead screw driver to remove the front cover from the base. Do not use force, as this could break the cover.
  • Page 9 Some controllers may be only able to set certain settings of all on /all off response. The 4 different ways the switch can be setup to respond to all on and all off AirLive SA-105 User Manual...

  • Page 10: Association And Parameter

    1.5.2 Configuration Parameter Configuration Function Value Default Value Size (Byte) Parameter Back Light Enable 0 - 1 Relay On/Off Indicate 0 - 1 Relay On/Off Status Saved 0 - 1 Enable Root Device Mapped Setting 0 - 3 AirLive SA-105 User Manual...
  • Page 11 (default value). Gateway or other devices (such as door/window sensor, motion sensor, etc) that is associated with Light Switch send a command BASIC_SET=0xFF to Light Switch, the relay in endpoint 1will be turned on; other relay status will not be changed. AirLive SA-105 User Manual...
  • Page 12 *COMMAND_CLASS_DEVICE_RESET_LOCALLY V1] *COMMAND_CLASS_POWERLEVEL (V1) *COMMAND_CLASS_ASSOCIATION (V2] *COMMAND_CLASS_ASSOCIATION_GRP_INFO (V1] *COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION (V2] *COMMAND_CLASS_MULTI_CHANNEL (V4) *COMMAND_CLASS_SWITCH_BINARY (V1) *COMMAND_CLASS_CONFIGURATION (V11) Endpoint 1/2 supports Command Classes as Below (only2CH) *COMMAND_CLASS_ZWAVEPLUS_INFOV ( 21) *COMMAND_CLASS_ASSOCIATION (V2] *COMMAND_CLASS_ASSOCIATION_GRP_INFO (V1) *COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION (V2) *COMMAND_CLASS_SWITCH_BINARY (V1) *COMMANO_CLASS_BASIC (V1) AirLive SA-105 User Manual...

  • Page 13: Specifications

    1.6 Specifications Specification SA-105 Dual Relay Touch Model Wall Switch Z-Wave Standard Z-wave plus Z-Wave Frequency CE：868.40MHz,869.85MHz Maximum Transmission 40M (indoor) 100m (open Distance space) Supply Voltage 230 VAC Maximum Output Current 16A (Resistive Load) Maximum Output Power 2500 W (Resistive Load)
