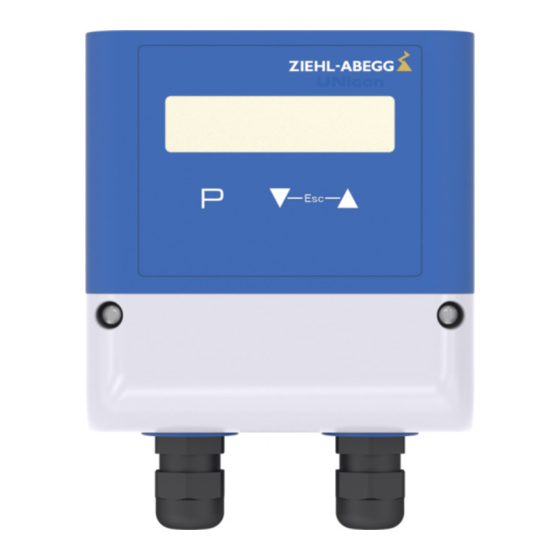

- Page 1 english UNIcon CTG-150AV Temperature-control module Operating Instructions Keep for reference! L-BAL-E258-GB 1912 Index 003 Part.-No.
-
Page 2: Table Of Contents
Operating Instructions UNIcon CTG-150AV Content General notes .......... - Page 3 Operating Instructions UNIcon CTG-150AV Manufacturer reference ....... Service information ........
-
Page 4: General Notes
Operating Instructions UNIcon CTG-150AV General notes 1 General notes Compliance with the following instructions is mandatory to ensure the functionality and safety of the product. If the following instructions given especially but not limited for general safety, transport, storage, mounting, operating conditions, start-up, mainte- nance, repair, cleaning and disposal / recycling are not observed, the product may not operate safely and may cause a hazard to the life and limb of users and third parties. -
Page 5: Product Overview
Operating Instructions UNIcon CTG-150AV Product overview • The safe isolation from the supply must be checked using a two-pole voltage detec- tor. • The owner is obliged to ensure that the device is operated in perfect working order only. •... -
Page 6: Mounting
Operating Instructions UNIcon CTG-150AV Mounting 4 Mounting 4.1 General notes Attention! • Before installation remove the device from the packing and check for any possible shipping damage! Start-up is not allowed in the case of transport damage! • Do not mount equipment on vibrating base! •... -
Page 7: Installation Location For Agriculture
Operating Instructions UNIcon CTG-150AV Electrical installation Vertical mounting GM00023C_E_M 20.09.2016 1 Bottom cable inlet 2 Cable inlet at the back 3 Locking screws 4 Lid screw (tightening torque 1.1 Nm) 4.2 Installation location for agriculture When using for animal keeping, do not install the device directly in the stable but in a separate room with a lower pollutant load. -
Page 8: Sensor Connection
5.3 Sensor connection Connection of temperature sensor for measuring actual value (not in scope of delivery) to terminals “TF”. It is possible to connect ZIEHL-ABEGG sensors of series “TF..” (KTY81-210) or PT1000 temperature sensors (it must be paid attention to no polarity). -
Page 9: Input For Switch Over Setpoint 1 / Setpoint 2
Operating Instructions UNIcon CTG-150AV Electrical installation Example: • Supply voltage CPG / CTG: 10 V => I for 0...10 V output = 0.3 mA (see Technical data or connection diagram). • ECblue motor size B: Input resistance R > 100 kΩ (Assembly instuctions fan seeTechnical data or connection diagram). -
Page 10: Multipurpose Lc Display And Keyboard
Operating Instructions UNIcon CTG-150AV Multipurpose LC display and key- board 6 Multipurpose LC display and keyboard Line 1: 16 figures for actual and desired values 17.6 °C Line 2: 16 figures for menu text Actual value Program key and open menu ▼... -
Page 11: Start Up
Operating Instructions UNIcon CTG-150AV Programming 7.2 Start up Procedure 1. You must mount and connect the device in accordance with the operating instruc- tions. 2. Double check that all connections are correct. 3. The supply voltage must match the information on the rating plate. -
Page 12: Display Unit °C Or °F
Operating Instructions UNIcon CTG-150AV Programming Example for Mode 2.01 (Factory setting) ▼ ▼ INFO ▲ SETTING ▲ BASE SETUP P↓ ↑ ESC P↓ ↑ ESC P↓ ↑ ESC 20.0 °C 20 °C 2.01 Actual value Setpoint 1 Mode ▲ ▼... -
Page 13: Parameter Table
Operating Instructions UNIcon CTG-150AV Programming 7.5 Parameter table Parameter Factory setting User Set- Function ting Mode 2.00 2.01 Mode INFO 27.1 °C 27.1 °C Actual Value Display actual temperature (80.8 °F) (80.8 °F) 20.0 °C Setpoint 1 Display active Setpoint (68.0 °F) - Page 14 Operating Instructions UNIcon CTG-150AV Programming Parameter Factory setting User Set- Function ting Setting measuring range, maximum tem- perature value Setting range: 150.0 °C Range max. (302.0...-58.0 °F) 150...-50 °C Temperature (302.0 °F) Factory setting: (302.0 °F) 150.0 °C 0.0 K 0.0 K...
-
Page 15: Characteristic Curve Temperature Sensor
Operating Instructions UNIcon CTG-150AV Programming 7.6 Characteristic curve temperature sensor 2.00 Uout Range min. value -50 °C Range max. value 150 °C Range min. value 0 °C Range max. value 100 °C Actual Value [°C] 05.05.2010 v_kennnl_ctg_temp_sens.vsd L-BAL-E258-GB 1912 Index 003 Part.-No. -
Page 16: Function Diagrams Temperature Controller
Operating Instructions UNIcon CTG-150AV Programming 7.7 Function diagrams temperature controller 2.01 Cooling: Value>Set = n+ Heating: Value>Set = n+ Uout Uout Max. Uout = 10.0 V Min. Uout = 0.0 V Max. Uout = 8.5 V Min. Uout = 3.5 V Min. -
Page 17: Enclosure
Operating Instructions UNIcon CTG-150AV Enclosure 8 Enclosure 8.1 Technical data Type CTG-150AV Version: Part No.: Bottom cable inlet 320073 Cable inlet at the back 320081 with temperature sensor KTY 81-210 or PT 1000 Measuring range (-58...302 °F) -50...150 °C 10...24 V DC (+20 %) -
Page 18: Connection Diagram
Operating Instructions UNIcon CTG-150AV Enclosure 8.2 Connection diagram CTG-150AV = 4 kΩ GND A GND TF.. Spannungsversorgung Voltage supply 10...24 V DC 10...24 V DC (10 V: I = 6 mA) (13...24 V: I = 14 mA) 0 = Setpoint 1... -
Page 19: Dimensions [Mm]
Operating Instructions UNIcon CTG-150AV Enclosure 8.3 Dimensions [mm] Version bottom cable inlet Version cable inlet at the back L-BAL-E258-GB 1912 Index 003 Part.-No. 19/20... -
Page 20: Manufacturer Reference
Operating Instructions UNIcon CTG-150AV Enclosure 8.4 Manufacturer reference Our products are manufactured in accordance with the relevant international regulations. If you have any questions concerning the use of our products or plan special uses, please contact: ZIEHL-ABEGG SE Heinz-Ziehl-Straße 74653 Künzelsau...
