Endress+Hauser Proservo NMS81 Technical Information page 7

Proservo NMS81
Endress+Hauser
Typical tank installation
A
1
6
3
4
5

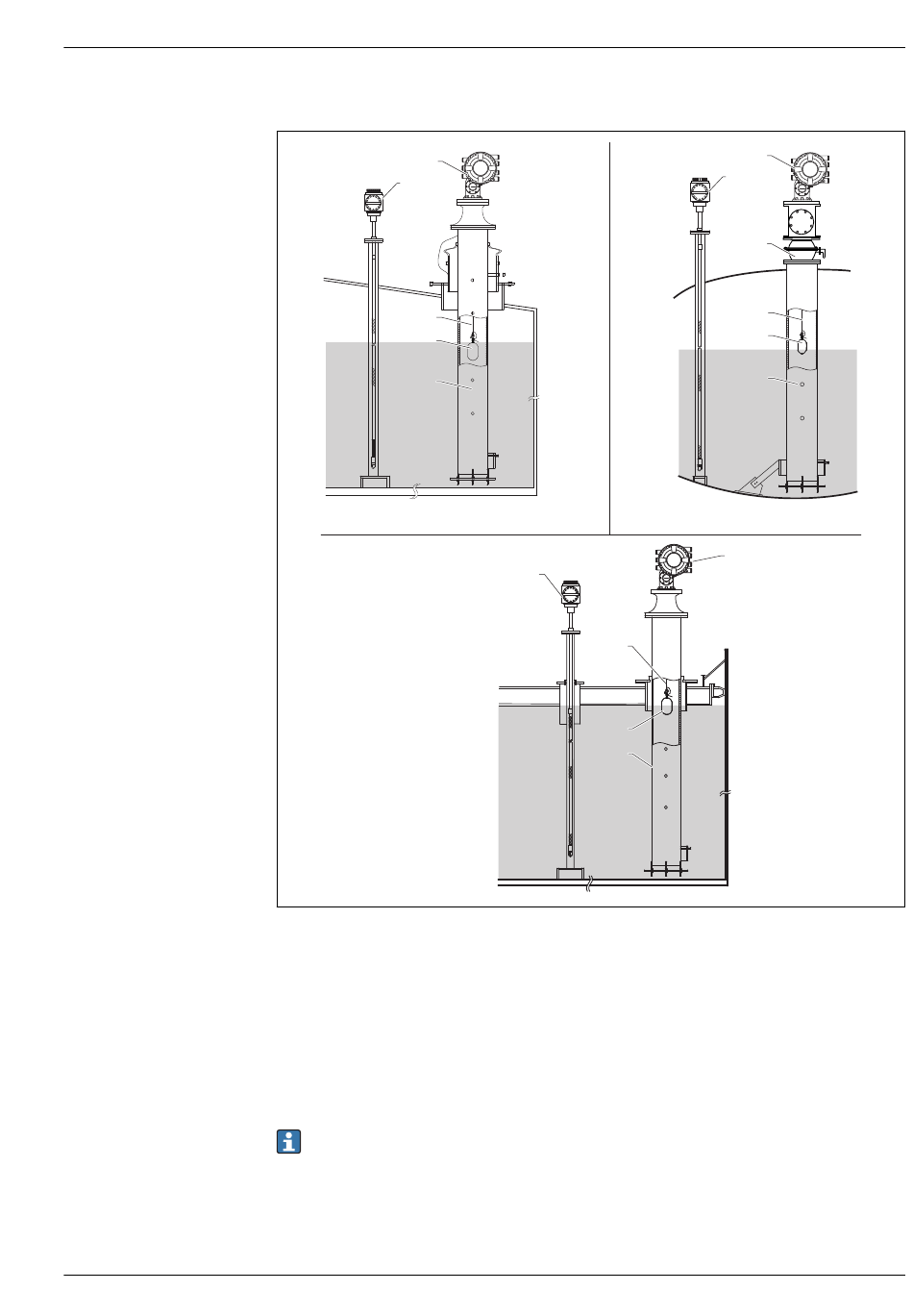

 3 Typical tank installation
A Fixed roof tank
B High pressure tank
C Floating roof tank with stilling well
1 NMS8x
2 Ball valve
3 Measuring wire
4 Displacer
5 Stilling well
6 Prothermo NMT53x
When installing NMS8x to a floating roof tank, be sure to use a stilling well to protect the
measuring wire. Otherwise the wire may break due to an external shock.
Application
NMS8x is primarily a highly accurate level measurement gauging instrument with the added ability
to measure density. The following level measurements are supported: liquid surface level and
interface level(s) between different liquids, as well as finding tank floor or datum plate. The
B
C
6
3
4
5
1
6
2
3
4
5
1
A0026725
