Mounting with guide wires
It is also possible to guide the displacer with guide wires to prevent swinging.
A
B
C
D

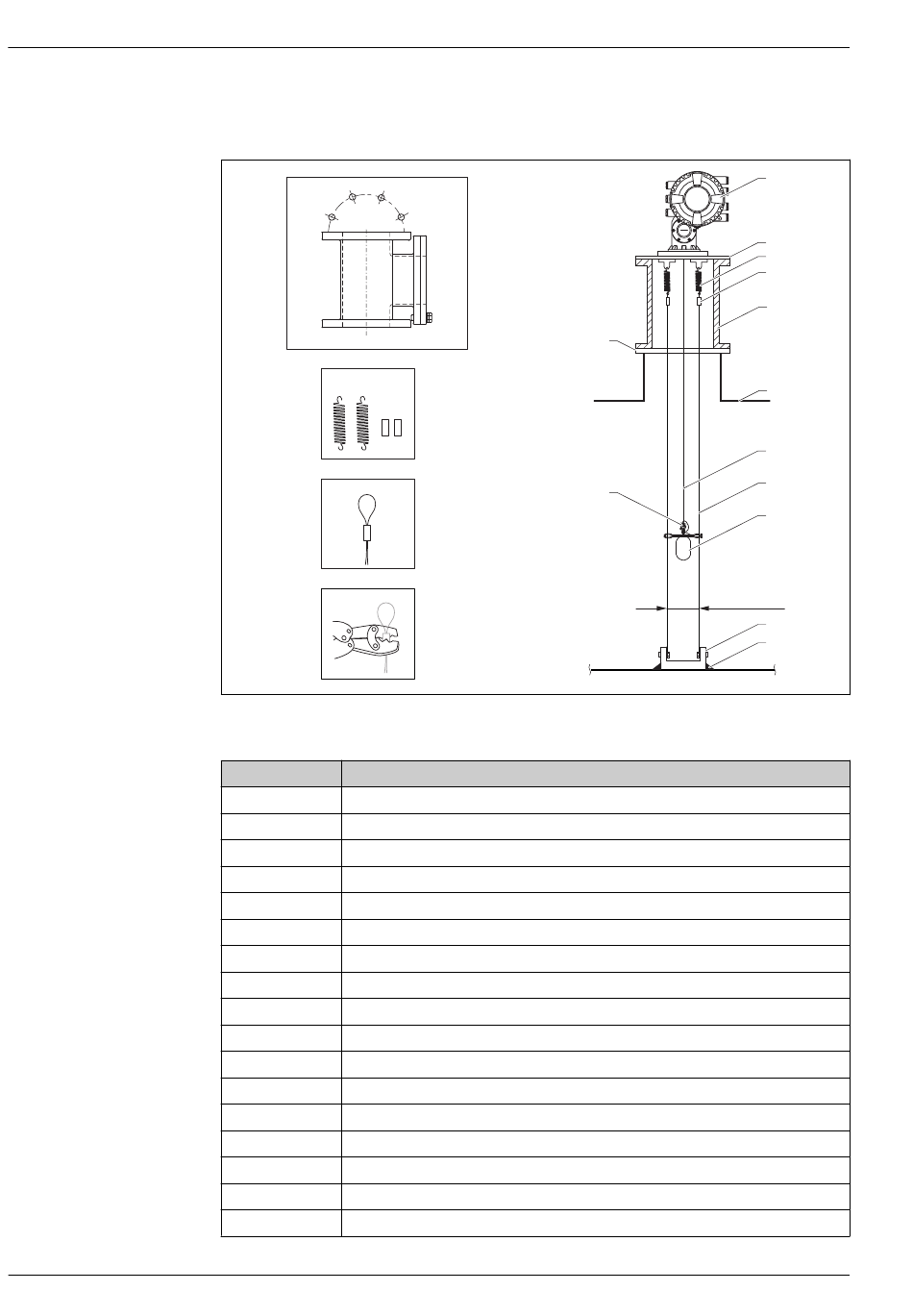

 15 Guide wire; dimensions mm (in)
No.
A Calibration chamber
B Spring and sleeve
C Guide wire sleeve
D Crimp tool
1 NMS8x
2 Reducer plate
3 Spring, SUS304
4 Sleeve, SUS316
5 Calibration chamber for maintenance
6 Tank
7 Measuring wire
8 Guide wire, SUS316
9 Displacer
10 Anchor hook plate, SUS304
11 Welding point
12 Wire ring, SUS316L
13 Flange
Proservo NMS81
13
12
100 (3.94)
Description
1
2
3
4
5
6
7
8
9
10
11
A0026819
