Ø50.8 (2)
C
a
Ø50 (1.97)
A

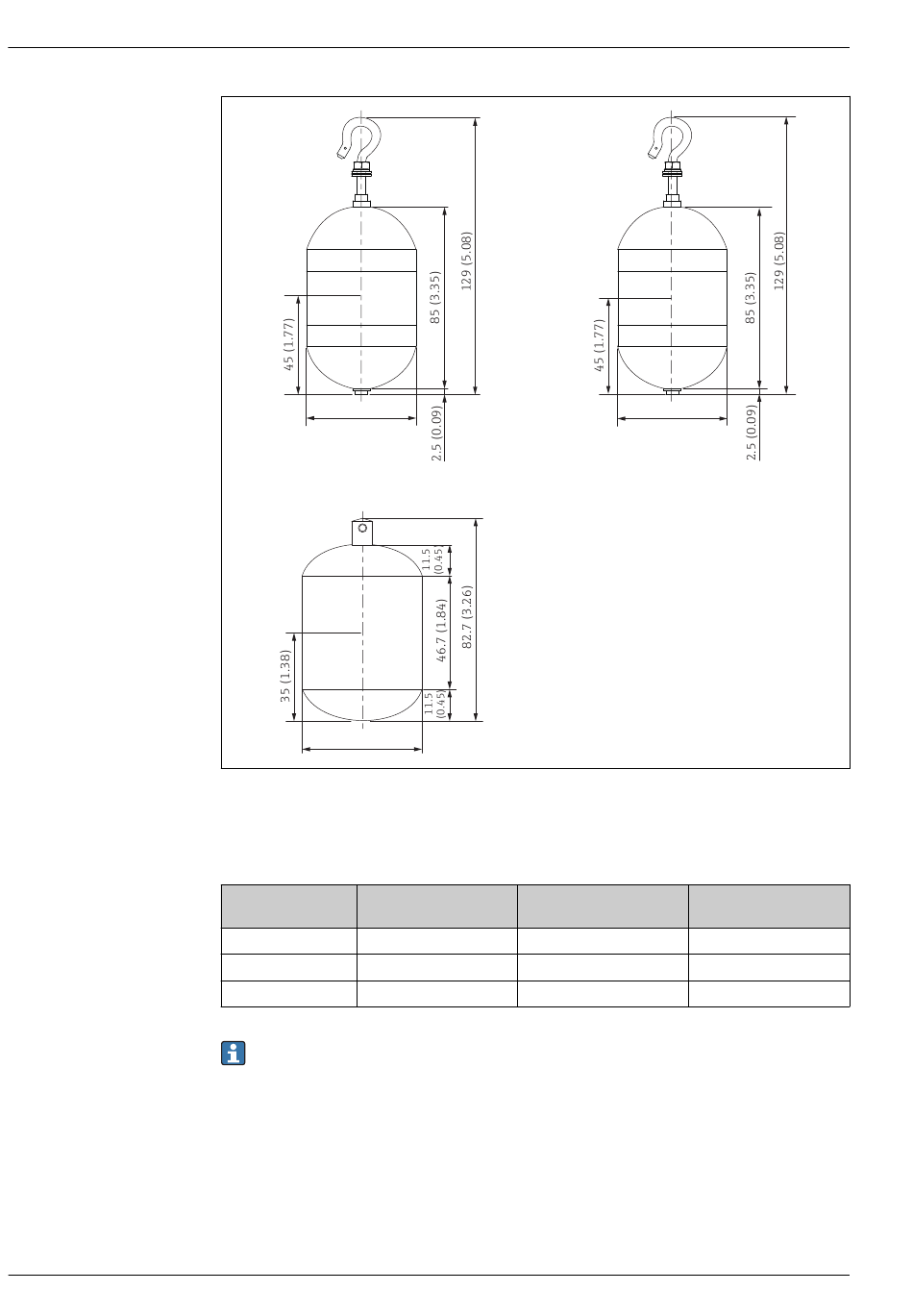

⌀50 mm (1.97 in) 316L cylindrical displacer
B
⌀50 mm (1.97 in) AlloyC cylindrical displacer
C
⌀50 mm (1.97 in) PTFE cylindrical displacer
a
Immersion point
⌀50 mm (1.97 in) 316L
Item
cylindrical displacer
Weight (g)
253
Volume (ml)
143
Balance volume (ml)
70.7
The weight, volume, and balance volume are individually determined by each displacer and also
might vary depending on the values stated above.
B
a
Ø50.8 (2)
⌀50 mm (1.97 in) AlloyC
cylindrical displacer
253
250
143
118
70.7
59
Proservo NMS81
A0029580
⌀50 mm (1.97 in) PTFE
cylindrical displacer
Endress+Hauser
