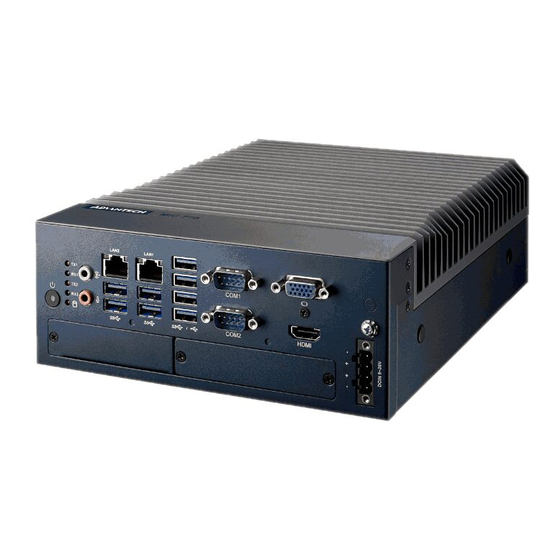

Advantech MIC-770 Startup Manual

MIC-770
Intel 8 Generation Core™ i Socket Compact
® th
Fanless Computer
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following items have been shipped:
1. MIC-770 bare-bone system x 1
2. Startup manual EN\CN\TC for MIC-770 1st Ed
3. 4-pin Phoenix connector
4. Mounting bracket x2
5. SATA cable x1
6. SATA power cable x 1
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
P/N: 2041077000
P/N: 1652003234
P/N: 1960070543T001
P/N: 1700013095
P/N: 1700024372-01
Caution: DANGER OF EXPLOSION IF BATTERY IS INCOR-
RECTLY REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER, DISCARD USED BAT-
TERIES ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Attention: DANGER D'EXPLOSION SI LA BATTERIE EST
INEXACTEMENT REMPLACÉE. REMPLACEZ
SEULEMENT AVEC LA MÊME CHOSE OU LE TYPE
ÉQUIVALENT RECOMMANDÉ PAR LE FABRICANT,
JETTENT LES BATTERIES UTILISÉES INSTRUC-
TIONS DE S SELON FABRICANT DES'.
Specifications

Processor System

• Intel 8 generation Core™ i socket CPU (LGA1151)
® th
Memory
• Supports dual channel DDR4 SODIMM-2666 MHz,
16 GB per slot without ECC function; Max. capacity
is 32GB
Graphics
• Q370: Intel HD Graphics 630, supports DirectX 12
®
• H310: Intel HD Graphics 610, supports DirectX 12
®

Serial Ports

• 2 x RS-232/422/485, RS-485 supports automatic flow
control
Ethernet
• Interface: 10/100/1000 Mbps
• Controller:
Q370 LAN1: Intel
®
H310 LAN1: Intel I219V, LAN2: Intel
®
Storage
• Internal 2.5" Storage Bay: 1
• mSATA: 1
Front I/O
• Display: 1 x VGA, 1 x HDMI
• USB: Q370: 2 x USB3.1 , 6 x USB3.0
H310: 4 x USB 3.0 and 4 x USB 2.0
• Serial: 2 x RS-232/422/485
• Audio: Line-out/Mic-in

Power Requirement

• Power type: ATX/AT
• Power input Voltage: 9-36 VDC
• Minimum Power Input: 9VDC 16A - 36VDC 5A
This product is intended to be supplied by a UL certified
power supply or UL certified DC source rated 19Vdc,
7.89A minimum, TMA 50 °C minimum. If you need further
assistance, please contact Advantech.
I219LM, LAN2: Intel i210IT
®
i210IT
®
MIC-770 Startup Manual 1
