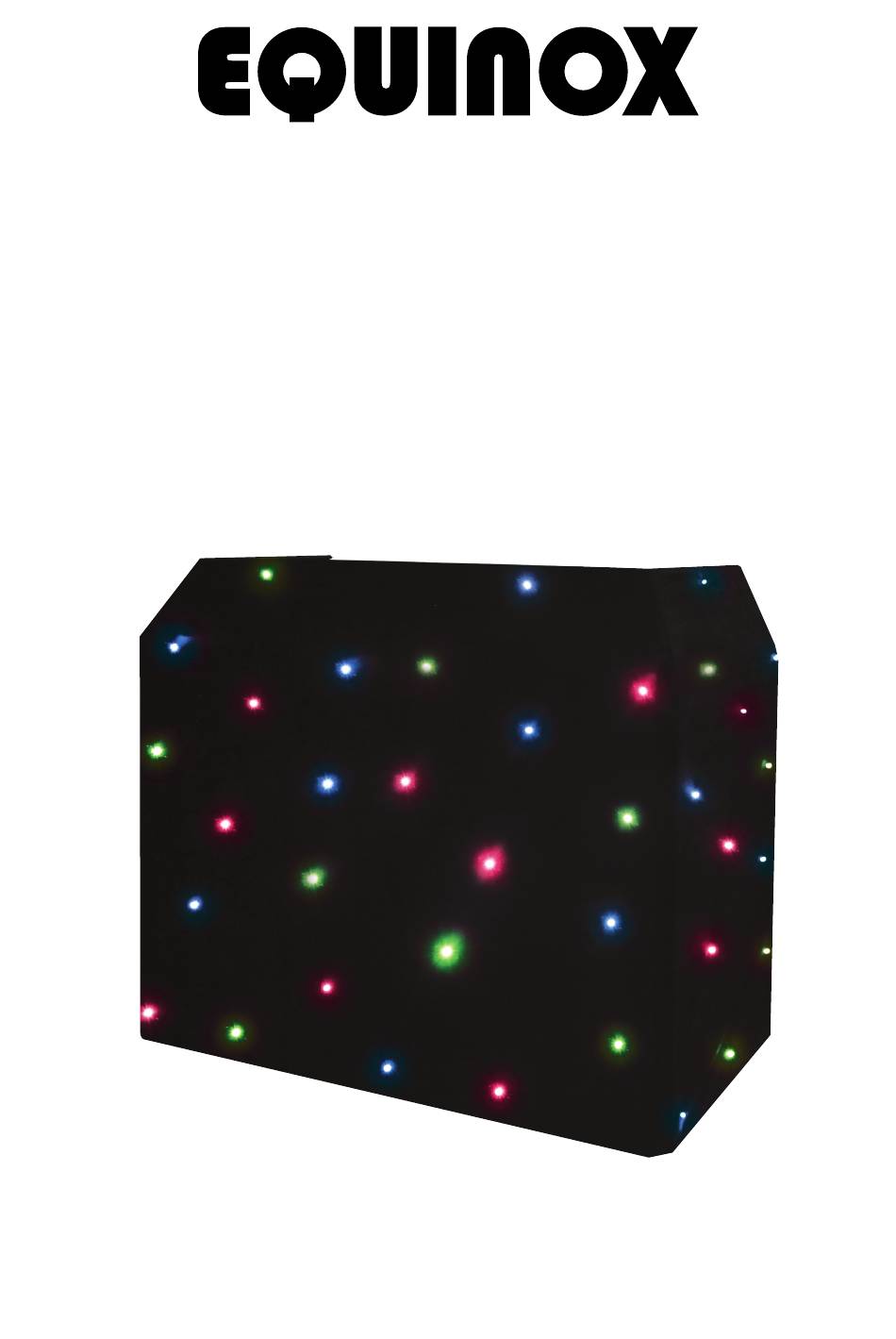

- Page 1 DJ Booth Tri-colour Starcloth User Manual Order code: EQLED12F...
-
Page 2: Safety Advice
• This starcloth and/or controller is for professional use between 100~240V AC, 50/60Hz. only - it is not designed for or suitable for household use. • Make sure that the power cable is never crimped or The product must be installed by a qualified technician damaged. Check the equipment and the power cable in accordance with local territory regulations. The safety periodically. of the installation is the responsibility of the installer. The fixture presents risks of severe injury or death due to fire • If the equipment is dropped or damaged, disconnect the hazards, electric shock and falls. mains power supply immediately and have a qualified engineer inspect the equipment before operating again. • Warning! Risk Group 2 LED product according to EN 62471. Do not view the light output with optical • If the equipment has been exposed to drastic instruments or any device that may concentrate the beam. temperature fluctuation (e.g. after transportation), do not connect power or switch it on immediately. • WARRANTY: One year from date of purchase. The arising condensation might damage the equipment. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual... - Page 3 DMX OUT DMX IN STARCLOTH 145mm ADJUSTMENT OUTPUT TO SOUND SENS DMX OUT DMX IN STARCLOTH ADJUSTMENT PUSH www.prolight.co.uk 55mm www.prolight.co.uk OUTPUT TO SOUND SENS DMX OUT DMX IN STARCLOTH POWER SUPPLY: 100-240V~50/60Hz ADJUSTMENT FUSE: T1A 250V POWER SUPPLY: 100-240V~50/60Hz FUSE: T1A 250V www.prolight.co.uk...
-
Page 4: Technical Specifications
Colour ash patterns Software version Auto mode DMX Address selection v--- u--- Auto Au00-Au09 Addr d001-d512 Ct00-Ct99 Flash speed Static colour selection This cloth is designed to be fitted to the Equinox DJ Booth. Fade mode Stat Co00-Co10 FAde FA00-fa05 Software version Auto mode v--- u--- DMX Channel selection Auto Au00-Au09 Fit the cloth from one upper corner first by hanging the sewn in pockets onto the booth. -
Page 5: Operating Instructions
To exit out of any of the above options, press the “ESC” button. Fade mode To access the auto mode, press the “UP/DOWN” buttons on the rear of the unit to show “FAde” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the fade mode you require between “Fa00” and “Fa05” (Fa05 is all fade cycle run). Press the “ENTER” button to confirm the setting. Now use the “UP” and “DOWN” buttons to set the speed between “FS00” and “fs99” (slow to fast). To exit out of any of the above options, press the “ESC” button. Sound active mode To access the auto mode, press the “UP/DOWN” buttons on the rear of the unit to show “Soud” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the sound control you require. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “ESC” button. Slave mode: To access the slave mode, press the “UP/DOWN” buttons on the rear of the unit to show “SLav” on the LED display. The unit is now in slave mode. Press the “ENTER” button to confirm the setting. DMX address: To change the DMX address, press the “UP/DOWN” buttons on the rear of the unit to show “Addr” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the address you require. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “ESC” button. Static colour mode: To access static colour mode, press the “UP/DOWN” buttons on the rear of the unit to show “Stat” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the the colour required. Press the “ENTER” button to confirm the setting. Now use the “UP” and www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual... - Page 6 170-179 Multi colour pattern 6 135-149 Light Yellow 180-189 Multi colour pattern 7 150-164 Light Purple 190-199 Multi colour pattern 8 165-179 Gold 200-209 Multi colour pattern 9 180-194 Light Green 210-255 Multi colour pattern cycle (1-9) 195-209 Light Pink Stop (static pattern) 210-224 Dark Purple 10-200 Slow to fast (static pattern) 225-239 Orange 0-200 Slow to fast (multi colour pattern) 240-255 White 201-255 Sound active www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual...
- Page 7 Pattern cycle (1-9) 220-255 Pattern cycle via sound active (1-9) Stop (static colour & mix colour patterns speed adjustment, CH1 only, value 0-119) 10-255 Slow to fast (static colour & mix colour patterns speed adjustment, CH1 only, value 0-119) 0-255 Slow to fast (auto shift patterns speed adjustment (CH1 only, value 120-219) 0-255 Red 0-100% (CH1 only, value 0-9) 0-255 Green 0-100% (CH1 only, value 0--9) 0-255 Blue 0-100% (CH1 only, value 0-9) 0-29 Static colour pattern 1 (CH1 only, value 10-119) 30-59 Static colour pattern 2 (CH1 only, value 10-119) 60-89 Static colour pattern 3 (CH1 only, value 10-119) 90-119 Static colour pattern 4 (CH1 only, value 10-119) 120-149 Static colour pattern 5 (CH1 only, value 10-119) 150-179 Static colour pattern 6 (CH1 only, value 10-119) 180-209 Static colour pattern 7 (CH1 only, value 10-119) 210-239 Static colour pattern 8 (CH1 only, value 10-119) 240-255 Static colour pattern cycle (1-8), (CH1 only, value 10-119) Cont... www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual...
- Page 8 Light Purple 110-119 White 120-129 Pattern 1 130-139 Pattern 2 140-149 Pattern 3 150-159 Pattern 4 160-169 Pattern 5 170-179 Pattern 6 180-189 Pattern 7 190-199 Pattern 8 200-209 Pattern 9 210-219 Pattern cycle (1-9) 220-255 Pattern cycle via sound active (1-9) Stop (static colour & mix colour patterns/mix colour strobe speed adjustment, CH1 only, value 0-119) 10-255 Slow to fast (static colour & mix colour patterns/mix colour strobe speed adjustment, CH1 only, value 0-119) 0-255 Slow to fast (auto shift patterns speed adjustment (CH1 only, value 120-219) Cont... www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual...
- Page 9 Blue 2, 0-100% (CH1 only, value 0-9) 0-255 Red 3, 0-100% (CH1 only, value 0-9) 0-255 Green 3, 0-100% (CH1 only, value 0-9) 0-255 Blue 3, 0-100% (CH1 only, value 0-9) 0-255 Red 4, 0-100% (CH1 only, value 0-9) 0-255 Green 4, 0-100% (CH1 only, value 0-9) 0-255 Blue 4, 0-100% (CH1 only, value 0-9) Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual...
-
Page 10: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Note: DMX cable must be daisy chained and cannot be split. Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual... -
Page 11: Line Termination
Pin 5: N/C Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual... -
Page 12: Related Items
Optional Overhead kit - This allows the user to create a full light show Overhead kit close-up without the need to have separate lighting stands and how it connects to the DJ Booth System Order ref: EQLED12E www.prolight.co.uk DJ Booth Tri-colour Starcloth User Manual...
