Summary of Contents for Prolight LED-707
-
Page 1: Table Of Contents

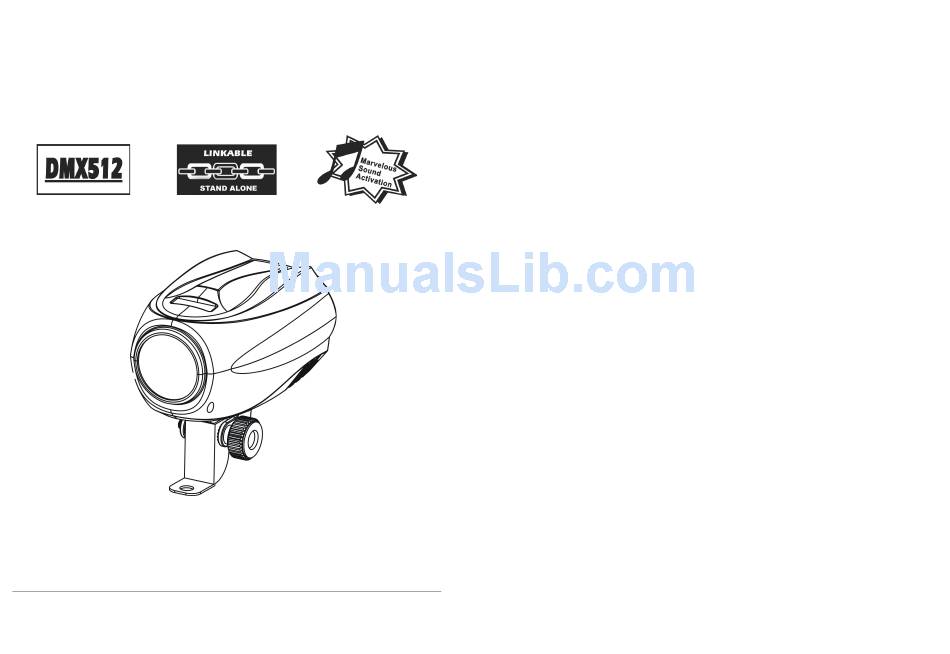

LED-707 TABLE OF CONTENTS 1. Safety Instructions 2. Technical Specifications 3. Installation 4. How to control the fixture 5. DMX512 Configuration 6. DMX512 Connections 7. Troubleshooting 8. Fixture Cleaning User Manual Please read the instructions carefully before use... -
Page 2: Technical Specifications
1. Safety Introductions 2. Technical Specifications ! Power supply Input Voltage： AC 100V-240V 50-60Hz Please read the instructions carefully which includes important ! 4 Channels information about the installation, operation and maintenance. WARNING Channel 1 = Mode Channel 2 = Pattern/Chase Please keep this User Manual for future consultation. -
Page 3: How To Control The Fixture
DMX address setting by dip-switches 4. How to control the fixture 1. Select the channels of DMX controller Three ways to operation: 2. Dipswitches A. Master/Slave operation B. Universal DMX controller Dip-switches Value 2-light show C. Easy controller CA-8 A. Master/Slave operation •... -
Page 4: Dmx512 Configuration
5. DMX512 Configuration 6. DMX512 Connections The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. -
Page 5: Troubleshooting
7. Troubleshooting 8. Fixture Cleaning Following are a few common problems that may occur during operation. Here are some The cleaning of internal must be carried out periodically to optimize light output. Cleaning suggestions for easy troubleshooting: frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the fixture’s optics.
