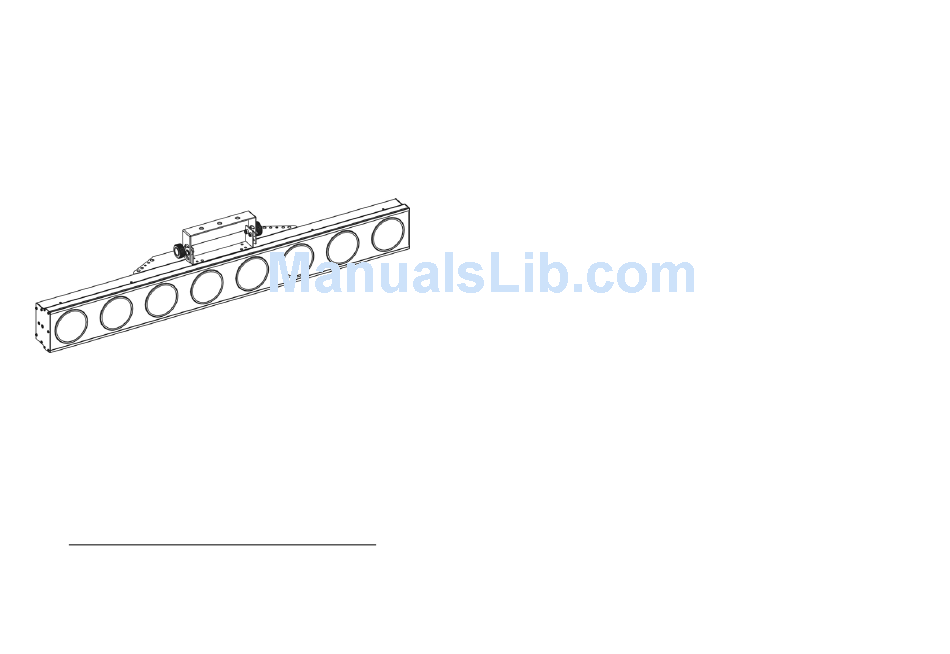

Color Fusion
User Manual
Please read the instructions carefully before use

TABLE OF CONTENTS

1. Safety Instructions
1A
