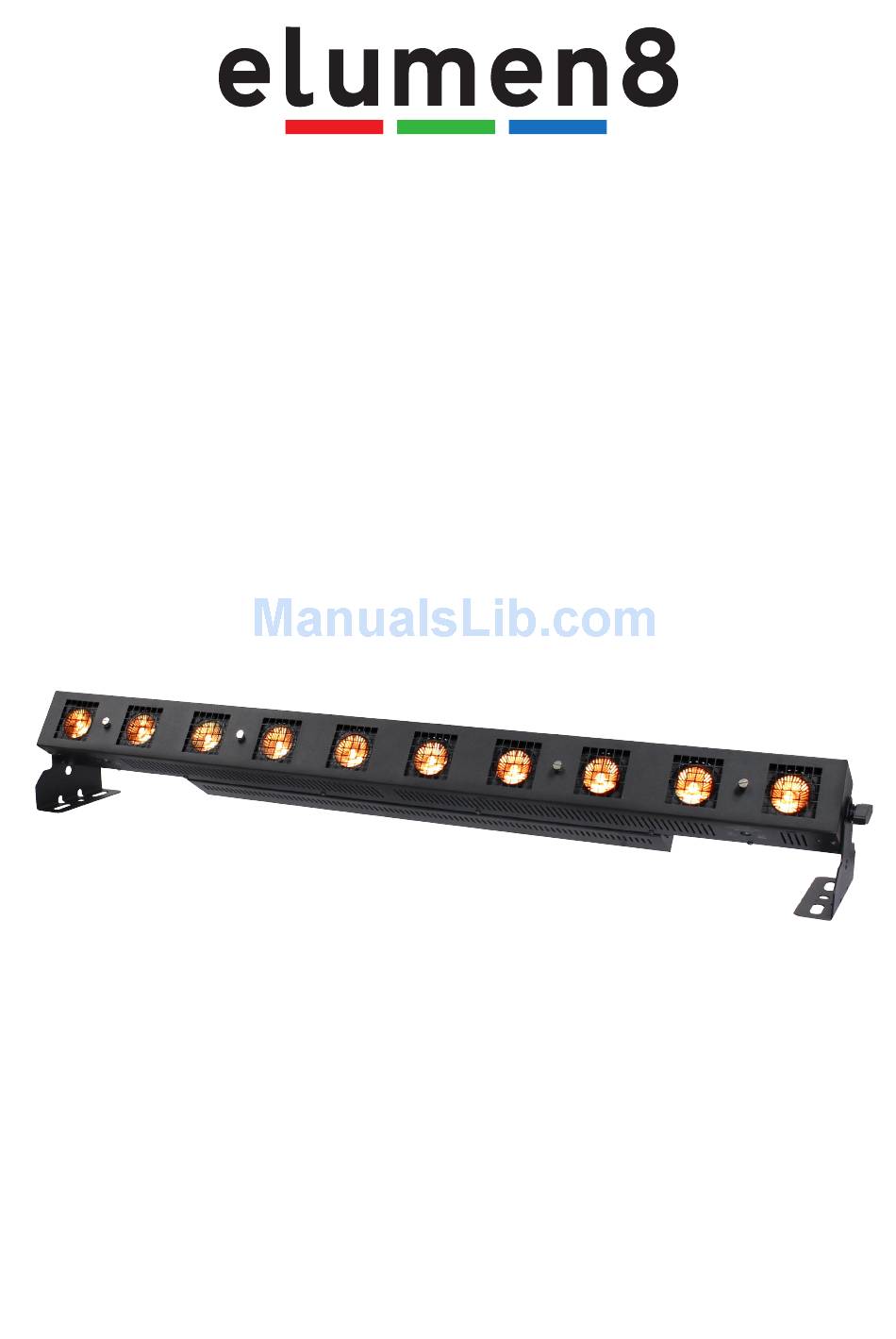

- Page 1 Tour Batten TW User Manual Order codes: ELUM120A...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: Two years from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Tour Batten TW User Manual... - Page 3 Tour Batten TW This Tour Batten TW features 10 x 10W warm white LEDs and a variable colour temperature between 1600K–2900K. The temperature can be set via the rear menu or DMX. When dimmed, the fixture can emulate a traditional halogen lamp with an orange glow similar to a sun strip, whilst the 18° beam produces a smooth wash or blinder effect. Specifications Tour Batten TW Power consumption 110W Power supply 100~240V, 50/60Hz Dimensions 139 x 1082 x 130mm Weight 6.5kg • 2 year warranty • 0 - 100% 16 bit dimming Order code ELUM120A • 10 x 10W warm white LEDs • RDM (Remote Device Management) • Beam angle: 18° • 4 push button menu with • 1731 Lux @ 2m LCD display 18° - Lux 2140 1731 • Pixel mapping capabilities • PowerCON input/output • DMX channels: 8 bit - • 5-Pin XLR input/output 1/2/5/10/6 20° • Convection cooled • 16 bit - 2/4/10/20...
-
Page 4: Operating Instructions
20/16Bit 20 channel mode - 16 bit 06/8Bit 6 channel mode - 8 bit Address 001-512 DMX Address Setting No DMX Hold Functions when no DMX signal Program Switching DMX fade to on activates Glide a short delay on DMX commands Program:01-Program:16/ Program Program Program: Auto/ Program: Full Master 000-100 Master dimmer Chase Speed 01-100 Program Speed FadeTime 000-100 Program Fade IMPORTANT! PLEASE NOTE: The LCD display for this fixture has a menu locking function where after 30 seconds of inactivity it will lock. To unlock the menu hold the “MENU” and “ENTER” buttons for 3 seconds. www.prolight.co.uk Tour Batten TW User Manual... - Page 5 1 high 8 byte 00000- LEDs 1-2 dimmer 2 low 8 byte 65535 (0-100%) 000-255 LEDs 7-8 dimmer (0-100%) 3 high 8 byte 00000- LEDs 3-4 dimmer 000-255 LEDs 9-10 dimmer (0-100%) 4 low 8 byte 65535 (0-100%) 5 high 8 byte 00000- LEDs 5-6 dimmer 6 low 8 byte 65535 (0-100%) 7 high 8 byte 00000- LEDs 7-8 dimmer 8 low 8 byte 65535 (0-100%) 9 high 8 byte 00000- LEDs 9-10 dimmer 10 low 8 byte 65535 (0-100%) www.prolight.co.uk Tour Batten TW User Manual...
- Page 6 15 high 8 byte 00000- LED 8 dimmer (0-100%) Channel Value Function 16 low 8 byte 65535 000-255 Master dimmer (0-100%) 17 high 8 byte 00000- LED 9 dimmer (0-100%) 000-255 Program 18 low 8 byte 65535 000-255 Program speed (slow-fast) 19 high 8 byte 00000- LED 10 dimmer (0-100%) 000-255 Fade Time (slow-fast) 20 low 8 byte 65535 000-080 Program Stop 081-160 Program Pause 161-255 Program Play 000-255 Master www.prolight.co.uk Tour Batten TW User Manual...
- Page 7 (000 = LED off, 100 = LED at full brightness). “Speed” should now be shown on the LCD display. Use the “UP” and “DOWN” buttons to set the required speed “01” - “100”. Press the “ENTER” button to confirm the setting. (01 = slow, 100 = fast). “FadeTime” should now be shown on the LCD display. Use the “UP” and “DOWN” buttons to set the required amount of fade “000” - “100”. Press the “ENTER” button to confirm the setting. (000 = no fade, 100 = full fade). To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Tour Batten TW User Manual...
-
Page 8: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL185 – 2m CABL187 – 5m CABL188 – 10m Note: DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Tour Batten TW User Manual... -
Page 9: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Tour Batten TW User Manual... -
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Tour Batten TW User Manual... - Page 11 Tour Batten TW User Manual...
