Installing the robot

Physical Setup
In the box you will find Eva, an emergency stop switch and a power supply
(with cables for each), a safety manual, and a user manual.
Consult the safety manual for information on proper installation.
In summary, screw the robot base into a supportive surface with four M6 screws
or bolts. Connect the emergency stop (consult the safety manual) and plug the
robot into mains power.

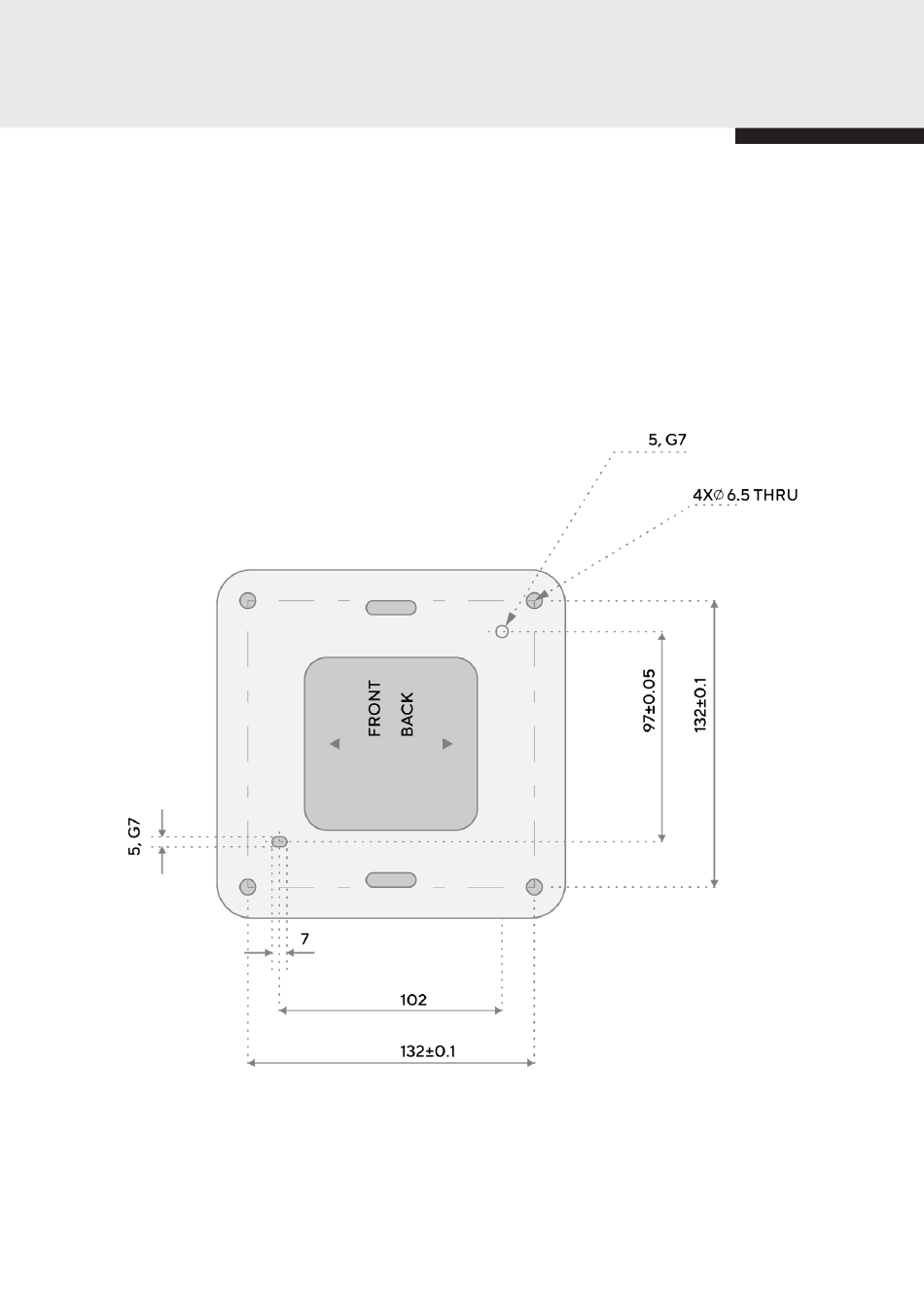

For greater precision and consistency between installations, use two dowel pins,
5 mm in diameter, to align the two reference holes on the baseplate (located
inwards from the mounting holes, as shown on the diagram) with similar slots in
your work surface. The pins should rise a maximum of 5 mm above the surface
of the baseplate.
