Electronic Interfaces

The main robot computer is stored in the base. Physical controls are available
on the rear.
Power Button
The robot power button is found above the Input/Output panel.

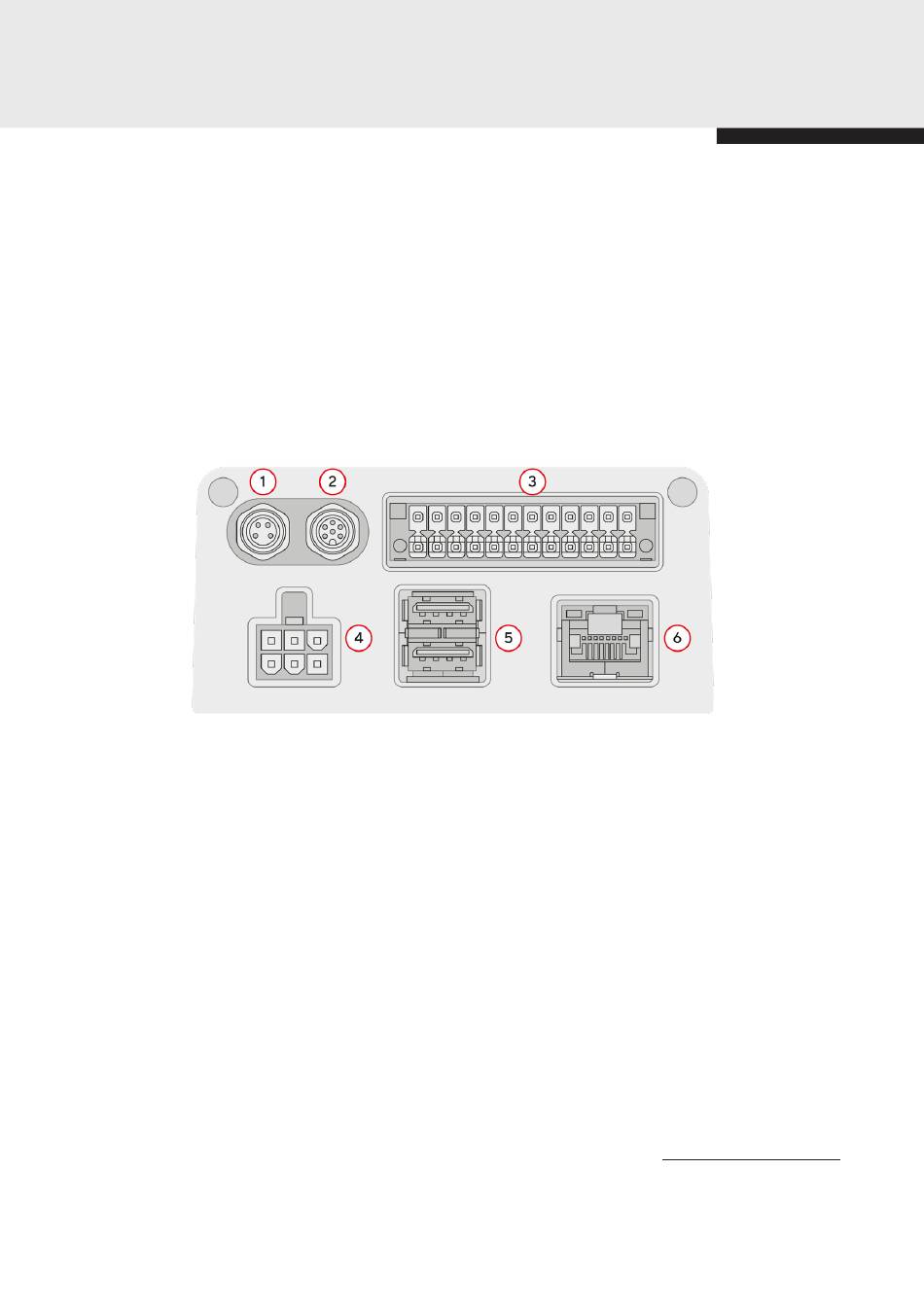

Input/Output Panel
Key:
1.

Emergency Stop Connection

2. Unused (reserved for future expansion)
3.

Base I/O

4.

Power Input

5. USB x 2
6. Ethernet
1. Emergency Stop Connection
Please consult the safety manual for information about the appropriate instal-
lation of Eva's emergency stop function.
This port is designed for a DPDT, 2NC e-stop push button switch conforming to
IEC 60947-5-5, such as the button provided with Eva, or the ABB CEPY1-1001.
The interface is a standard A-coded circular M8 female connector (IEC 61076-
2-104). The pinout can be seen below
18
Base Interface Overview
