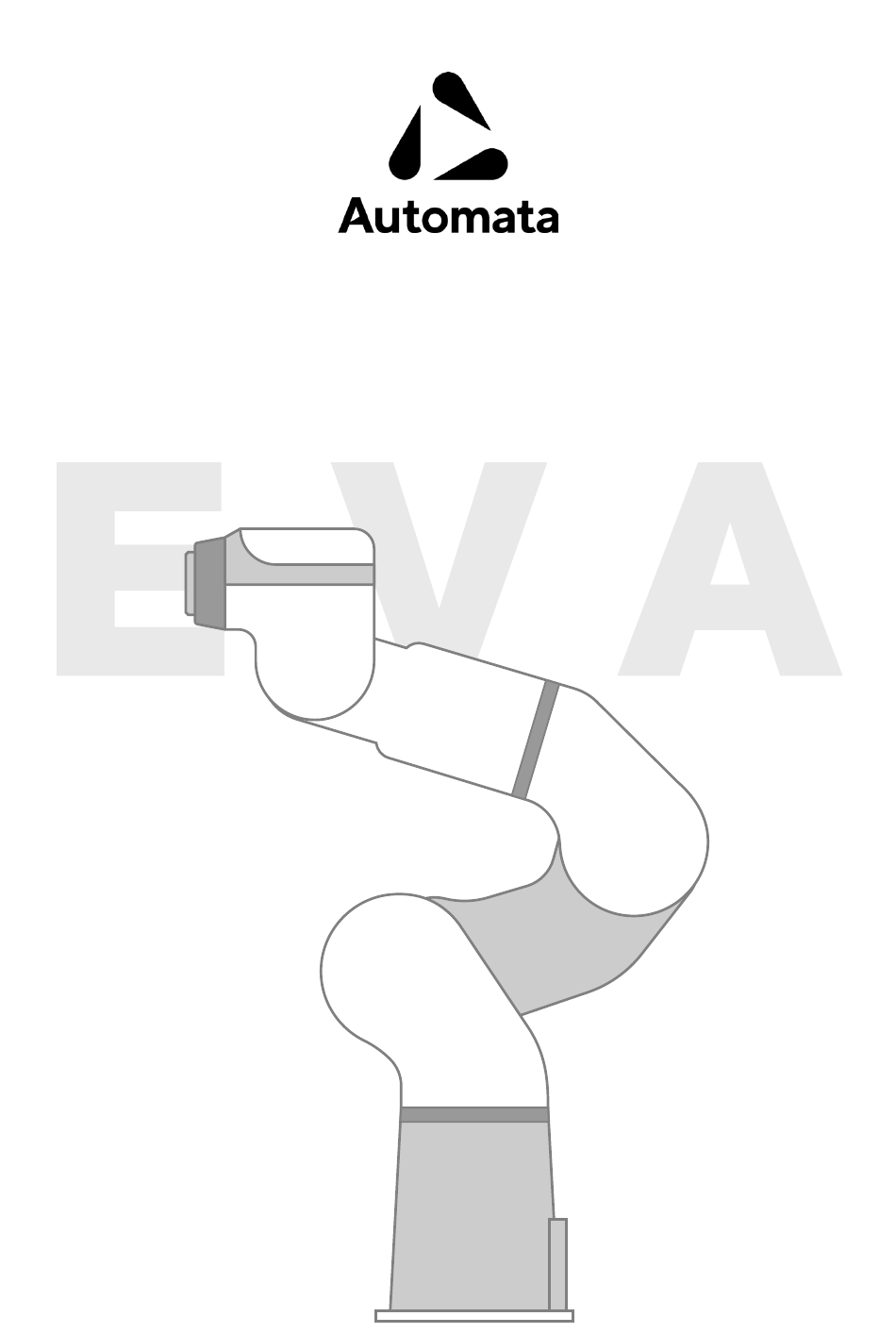

- Page 1 Quick Start Guide...
- Page 2 Inside the box Robot Arm Power Supply Emergency Stop Manuals Safety & Reference Manuals Welcome Pack Quick Start Guide Emergency Break Release I/O Connector Powering On Start by plugging the Power Supply and Emergency Stop following the diagram below. Press the On/Off button, then connect to your network with wifi or Ethernet. Note: The Ethernet Cable is not included.
- Page 3 Note: For more information go to the page 5 on the Reference Manual. Here you have your personal Eva Access Wifi Password: Choreograph To start programming Eva, navigate to the viewer in Choreograph, and click new to start a new toolpath.
- Page 4 Move Eva manually To move the robot manually, press and hold the Backdriving button on the robot head, this will give you the freedom to manipulate Eva. Note: Make sure to take the lock; click the grey x at the top of the screen to slide it into a green tick.
- Page 5 Create a Waypoint To create a new waypoint move Eva to the position you want and press the Waypoint Button on the robot head. When you think you have a series of waypoints in the right place, click on the first waypoint and a menu will appear.
- Page 6 Note: Remember to be online. Important: Before running Eva for the first time you need to follow the next steps. Remember to save and follow this steps every time you make a change. Press upload (this gives the robot information about the toolpath) Press home (this sends the robot to the first position) Press play.
- Page 8 Automata Technologies Limited Unit 4, Holford Yard Bevin Way London WC1X 9HD...
