Pin Assignments - Danfoss PLUS+1 DP7 Series Technical Information

Technical Information

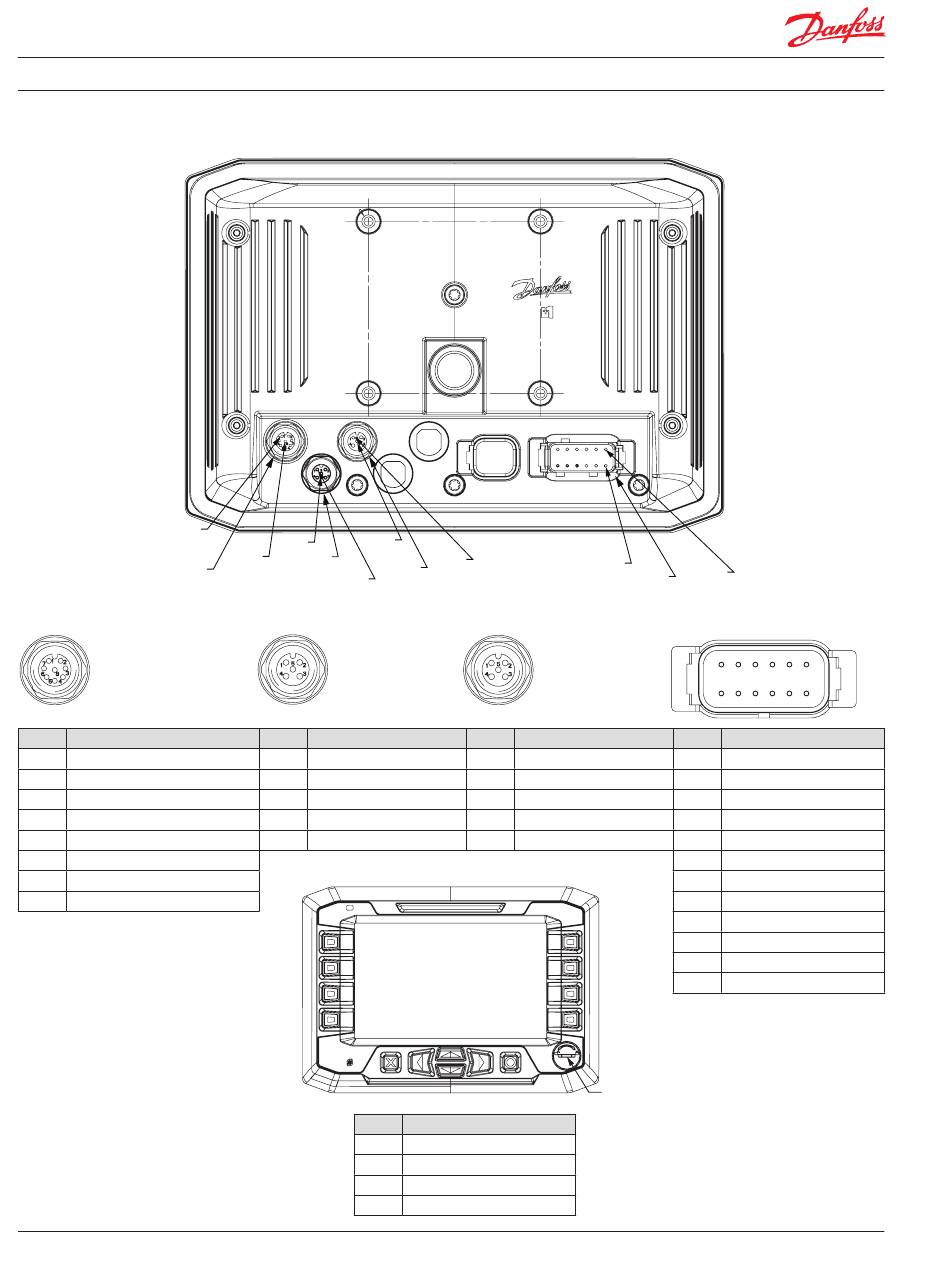

Pin Assignments

C5-P1
C5
M12 8-pin
C5 Pin Function
C5-P1 USB device Vbus
C5-P2 USB device D-
C5-P3 USB device D+
C5-P4 USB device GND
C5-P5 USB host GND/RS232 GND
C5-P6 USB host D+/RS232 RxD
C5-P7 USB host D-/RS232 TxD
C5-P8 USB host Vbus
20
DP7XX Series PLUS+1® Mobile Machine Displays
C3-P5
C4-P5
C4
C5-P8
C3
C4-P1
M12 5-pin
C4 Pin Function
C4-P1 Video power ground
C4-P2 Video power supply
C4-P3 Video signal input 2
C4-P4 Video signal input ground C3-P4
C4-P5 NC
C6 Pin Function
C6-P1
C6-P2 USB host D-
C6-P3 USB host D+
C6-P4
L1315553 • Rev DA • Dec 2013
C3-P1
M12 5-pin
C3 Pin Function
C3-P1 Video power ground
C3-P2 Video power supply
C3-P3 Video signal input 1
Video signal input ground C1-P4
C3-P5 NC
USB host VBus
USB host GND
C1-P1
C1
C1-P12
Deutsch® DTMO6 12-Pin
C1 Pin Function
C1-P1 Power ground -
C1-P2 Power supply +
C1-P3 CAN0 High +
CAN0 Low -
C1-P5 AIN/CAN Shield
C1-P6 CAN1 High +/(AIN/DIN)
C1-P7 CAN1 Low -/(AIN/DIN)
C1-P8 Sensor power/(AIN/DIN)
C1-P9 Sensor ground
C1-P10 Multifunction-input
C1-P11 Multifunction-input
C1-P12 DOUT
USB
