Pin Assignments - Danfoss PLUS+1 DP570 Series Technical Information

Technical Information
DP570 Series Displays
Installation

Pin assignments

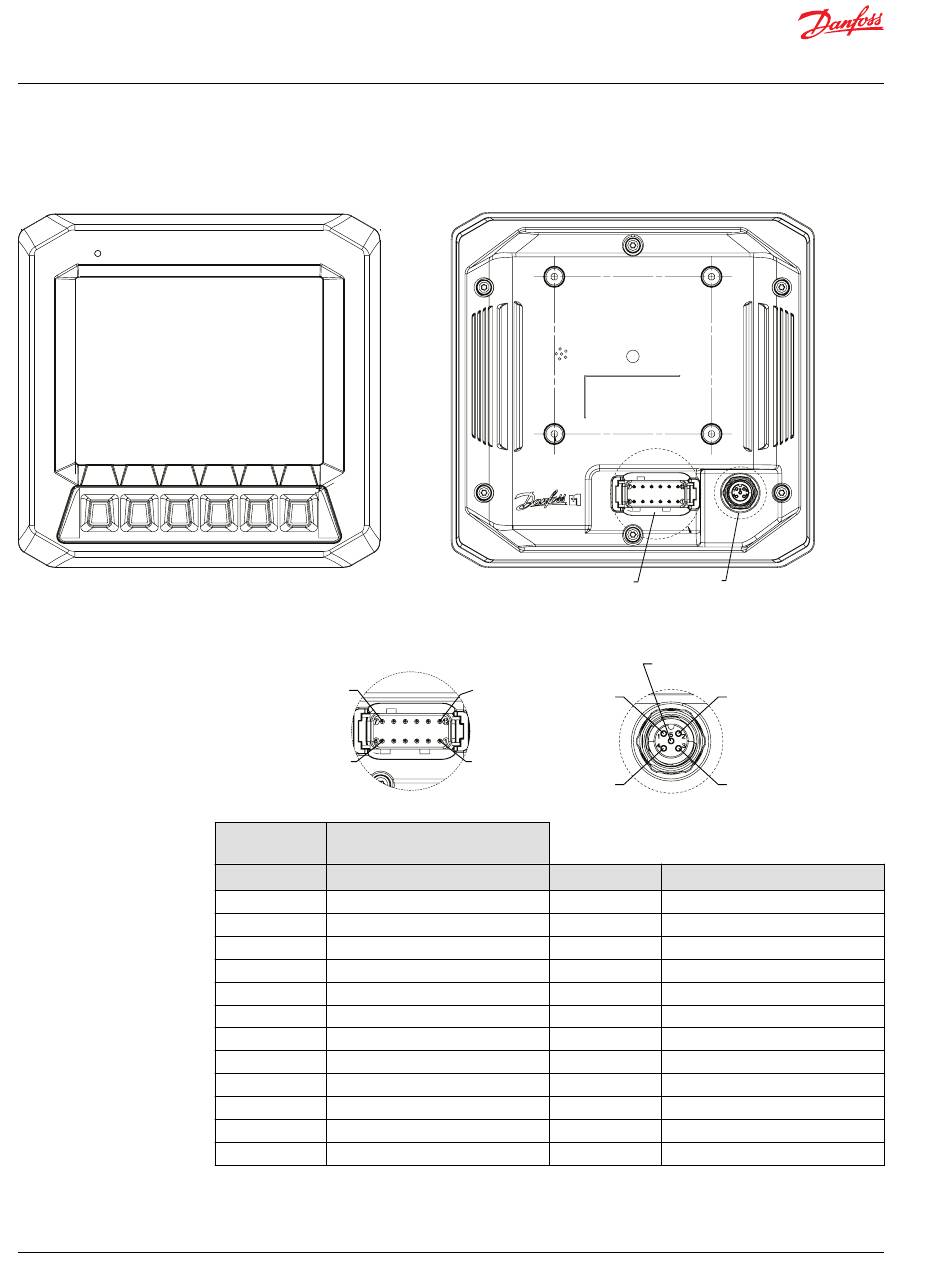

DP570 pin assignments
22 | © Danfoss | January 2017
Pin connectors
C1-P7
C1-P6
DEUTSCH Phoenix M12 5-pin
DTM06 12-pin
C1 pin Function
C1-P1 Power Ground -
C1-P2 Power Input +
C1-P3 CAN0 High +
C1-P4 CAN0 Low -
C1-P5 CAN Shield
C1-P6 CAN1 High + or DIN/AIN
C1-P7 CAN1 Low – or DIN/AIN
C1-P8 DIN/AIN/4–20 mA
C1-P9 DIN/AIN/4–20 mA
C1-P10 Multi-function Input
C1-P11 Multi-function Input
C1-P12 DOUT
C1
C1-P12
C2-P1
C1-P1
C2-P4
C2 pin
C2-P1
C2-P2
C2-P3
C2-P4
C2-P5
C2
kwa1422372882256
C2-P5
C2-P2
C2-P3
kwa1427484568455
Function
Video Power Ground
Video Power Supply
Video Signal Input 1
Video Signal Ground
NC
L1328765 | BC00000231en-US0701
