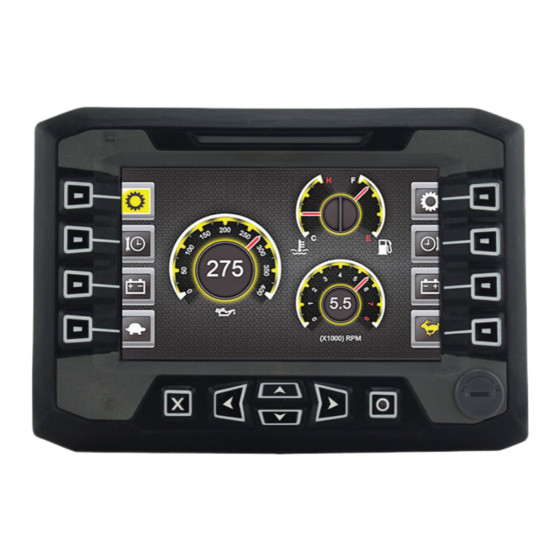

- Page 1 MAKING MODERN LIVING POSSIBLE Technical Information PLUS+1® Mobile Machine Displays DP7XX Series powersolutions.danfoss.com...
-
Page 2: Technical Information
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Revision History Table of Revisons Date Page Changed 05 Dec 2013 5, 8, 14, 19 LCD option table added, changed Panel Mounting Kit part number 14 Oct 2013 Various 12 Jul 2013 11, 14 Corrected typo and added section 13 May 2013... -
Page 3: Table Of Contents
User Liability and Safety Statements ..........................6 OEM Responsibility ................................6 Ordering Information Model Features ..................................7 Related Products ..................................8 Danfoss Assembled Mating Connector Kits ......................8 Accessories .................................... 8 Inputs/Outputs Inputs ......................................9 Digital/Analog ..................................9 Multifunction ..................................10 Encoder ....................................... -
Page 4: Reference Documents
DP710 Series PLUS+1 Mobile Machine Displays Data Sheet L1205246 DP720 Series PLUS+1 Mobile Machine Displays Data Sheet L1205154 PLUS+1 GUIDE Software User Manual Operation Manual 10100824 Technical Literature is on line at: www.Danfoss.com L1315553 • Rev DA • Dec 2013... -
Page 5: Product Overview
You should carefully review the licenses to determine what your obligations and options may be for your intended use. For further details, please reference: http://powersolutions.danfoss.com/products/mobileElectronics/plus1guide/plus1GuideDownloads/ plu1guideservicetoolsoftwarelicense/index.htm Programming can be done either using the PLUS+1 GUIDE (Graphical User Integrated Development Environment) or Linux interface. -
Page 6: User Liability And Safety Statements
User Liability and Safety Statements OEM Responsibility The OEM of a machine or vehicle in which a Danfoss product is installed has the full responsibility for all consequences that might occur. Danfoss has no responsibility for any consequences, direct or indirect, caused by failures or malfunctions. -
Page 7: Ordering Information
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Ordering Information Model Features Use the following table to identify model features. This is not a variant configurator. D P 7 Product Configuration Model Code Part number DP700 11126309 DP700 11126310 DP700 11126311 DP710 11126322... -
Page 8: Related Products
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Related Products Danfoss Assembled Mating Connector Kits DP7XX mating connector kit and contents Part numbers Connectors M12 5-pin male 11130712 M12 8-pin male 11130713 Terminal Deutsch 10100743 Crimp tool 16 to 20 AWG... -
Page 9: Inputs/Outputs
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Inputs/Outputs Inputs DP7XX Series displays support the following pin types: y Digital or Analog (DIN/AIN) y Multifunction (DIN/AIN/FreqIN, Rheo, 4–20 mA) y Fixed Range Analog or CAN shield (AIN/CAN shield) DP7XX Series displays have input pins that support multiple functions. Pins that support multiple input types are user-configurable using PLUS+1 GUIDE software. -
Page 10: Multifunction
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Multifunction Frequency Input Low Range (PPU) Description Unit Minimum Maximum Comment Range 10000 In steps of 1 Hz Sensitivity mVpp 1000 — Sinus peak-to-peak Low threshold voltage — High threshold voltage — Input impedance kΩ... -
Page 11: Encoder
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Encoder The encoder input is only suitable for user interface functions, such as, navigating in menus and adjusting values because there is no guarantee that all pulses are detected and the detected direction can be false. -
Page 12: Controller Area Network (Can) Specifications
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Controller Area Network (CAN) Specifications CAN Shield/Analog Inputs The CAN shield pin on the unit can be used as a non-configurable analog input. The values in the following table assumes that software compensates for errors in the analog to digital (A/D) converter. -
Page 13: Gateway Channels
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Gateway Channels PLUS+1 GUIDE Service Tool can be connected to the CAN bus by using the following gateway channels. Gateway Channels Channel Description Display only Display + CAN0 Display + CAN1 Display + CAN0+1 CAN0 CAN1 CAN0+1... -
Page 14: Memory
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Memory NV Memory Caution Non-volatile (NV) memory data loss is possible when the NV write cycle is not fully completed. When downloading a new application ensure data is not being written to NV memory. FRAM Memory DP7XX displays use Ferroelectric Random Access Memory (FRAM). -
Page 15: Product Ratings
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Product Ratings Electrical Supply Voltage Description Unit Minimum Maximum Comment DC supply voltage With reverse polarity protection DC supply current (circuit board only) UBat = 14 V UBat = 28 V Power supply interruption —... -
Page 16: Testing Criteria
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Testing Criteria Climatic Condition Rating Cold/heat storage and operation IEC 60068-2-1, IEC 60068-2-2 Fogging IEC 60068 Temperature change IEC 60068-2-14 Moisture ingress IEC 60529 Sunlight radiation ISO 16750-4 Temp humidity voltage IEC 60068-2-38 Chemical Condition Rating... -
Page 17: Housing
The protective glass will break if hit with a hard or heavy object. If the protective glass is broken, remove the display from your machine then return the display to Danfoss to be serviced. Clean the display’s housing and protective glass with a clean, soft, damp cloth, or mild dishwashing detergent because abrasive pads or solvents, including alcohol, benzene, and paint thinner can cause scratching and discoloration. -
Page 18: Installation
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Installation Dimensions DP7XX in Millimeters [Inches] 9.90 235.20 [0.39] [ 9.26] 42.60 [1.68] 177.80 [ 7.00] REF 163.50 [ 6.44] L1315553 • Rev DA • Dec 2013... -
Page 19: Two Mounting Options
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Two Mounting Options Flush Mounted Use the Danfoss panel mounting kit (Danfoss part number 11144800) to flush-mount into a dashboard. 4X 6 ± 0.25 [0.24 ± 0.01] 4X M4 screw 4 x 70˚ ± 1˚... -
Page 20: Pin Assignments
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Pin Assignments C5-P1 C3-P5 C4-P5 C5-P8 C3-P1 C1-P1 C1-P12 C4-P1 M12 5-pin M12 8-pin M12 5-pin Deutsch® DTMO6 12-Pin C5 Pin Function C4 Pin Function C3 Pin Function C1 Pin Function C5-P1 USB device Vbus C4-P1 Video power ground... -
Page 21: Wiring
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays The following guidelines are recommended when machine is equipped with a PLUS+1 mobile machine display. Wiring y Protect wires from mechanical abuse, run wires in flexible metal or plastic conduits. y Use 85˚ C (185˚ F) wire with abrasion resistant insulation and 105˚ C (221˚ F) wire should be considered near hot surfaces. -
Page 22: Welding
Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Welding Warning Power and signal cables produce high voltage. High voltage can cause fire and/or electrical shock, if flammable gasses or chemicals are present, can cause an explosion. To protect against product damage and possible injury, before doing any electrical welding on a machine, disconnect all power and signal cables connected to the display. - Page 23 Technical Information DP7XX Series PLUS+1® Mobile Machine Displays Notes L1315553 • Rev DA • Dec 2013...
- Page 24 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed.
