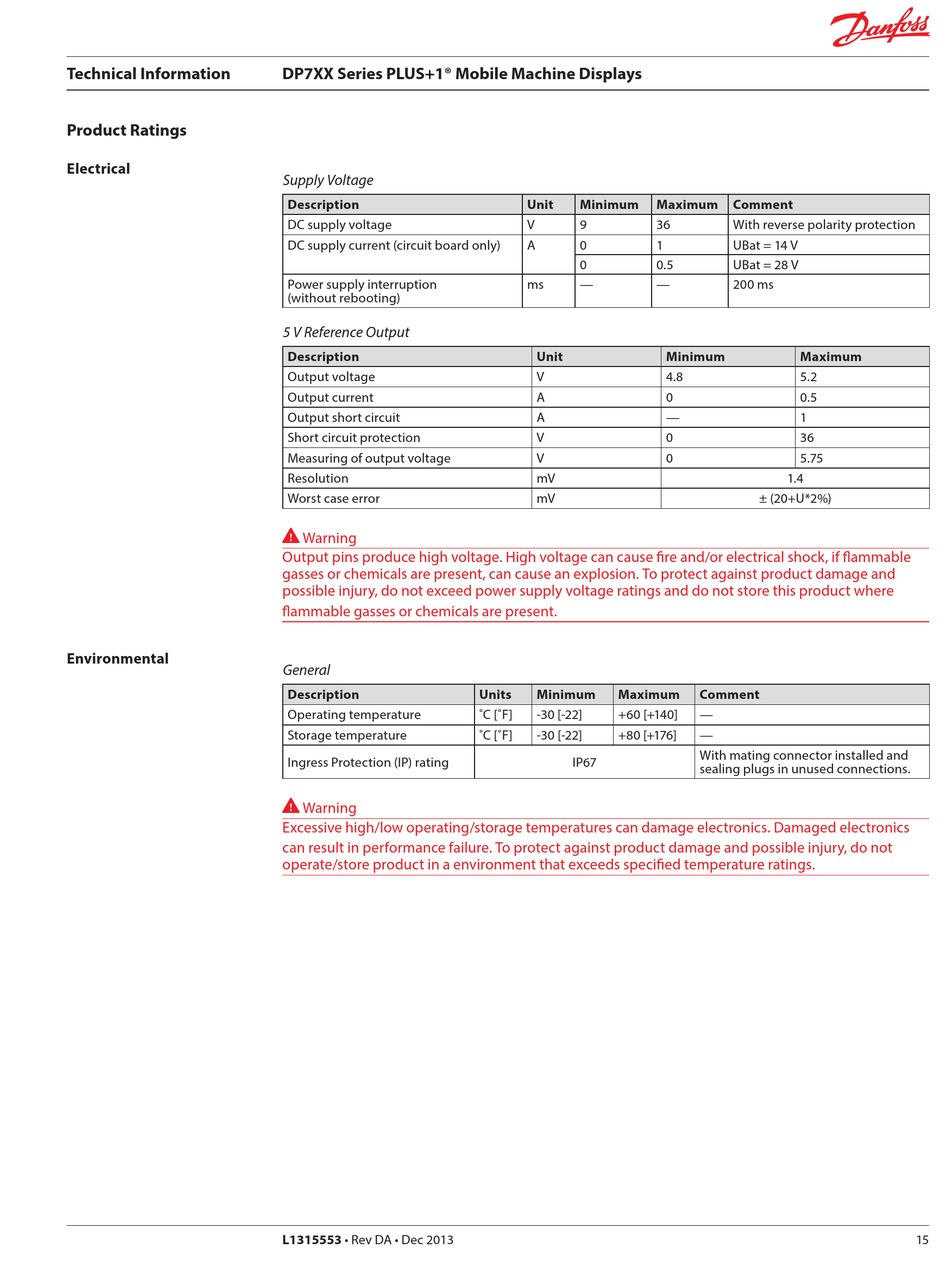

Product Ratings; Electrical; Environmental - Danfoss PLUS+1 DP7 Series Technical Information

Technical Information

Product Ratings

Electrical

Environmental

DP7XX Series PLUS+1® Mobile Machine Displays
Supply Voltage
Description
DC supply voltage
DC supply current (circuit board only)
Power supply interruption
(without rebooting)
5 V Reference Output
Description
Output voltage
Output current
Output short circuit
Short circuit protection
Measuring of output voltage
Resolution
Worst case error

Warning
Output pins produce high voltage. High voltage can cause fire and/or electrical shock, if flammable
gasses or chemicals are present, can cause an explosion. To protect against product damage and
possible injury, do not exceed power supply voltage ratings and do not store this product where
flammable gasses or chemicals are present.
General
Description
Operating temperature
Storage temperature
Ingress Protection (IP) rating

Warning
Excessive high/low operating/storage temperatures can damage electronics. Damaged electronics
can result in performance failure. To protect against product damage and possible injury, do not
operate/store product in a environment that exceeds specified temperature ratings.
L1315553 • Rev DA • Dec 2013
Unit Minimum Maximum
V 9 36
A 0 1
0 0.5
ms — —
Unit
V
A
A
V
V
mV
mV
Units Minimum Maximum
˚C [˚F] -30 [-22] +60 [+140]
˚C [˚F] -30 [-22] +80 [+176]
IP67
Comment
With reverse polarity protection
UBat = 14 V
UBat = 28 V
200 ms
Minimum Maximum
4.8 5.2
0 0.5
— 1
0 36
0 5.75
1.4
± (20+U*2%)
Comment
—
—
With mating connector installed and
sealing plugs in unused connections.
15
