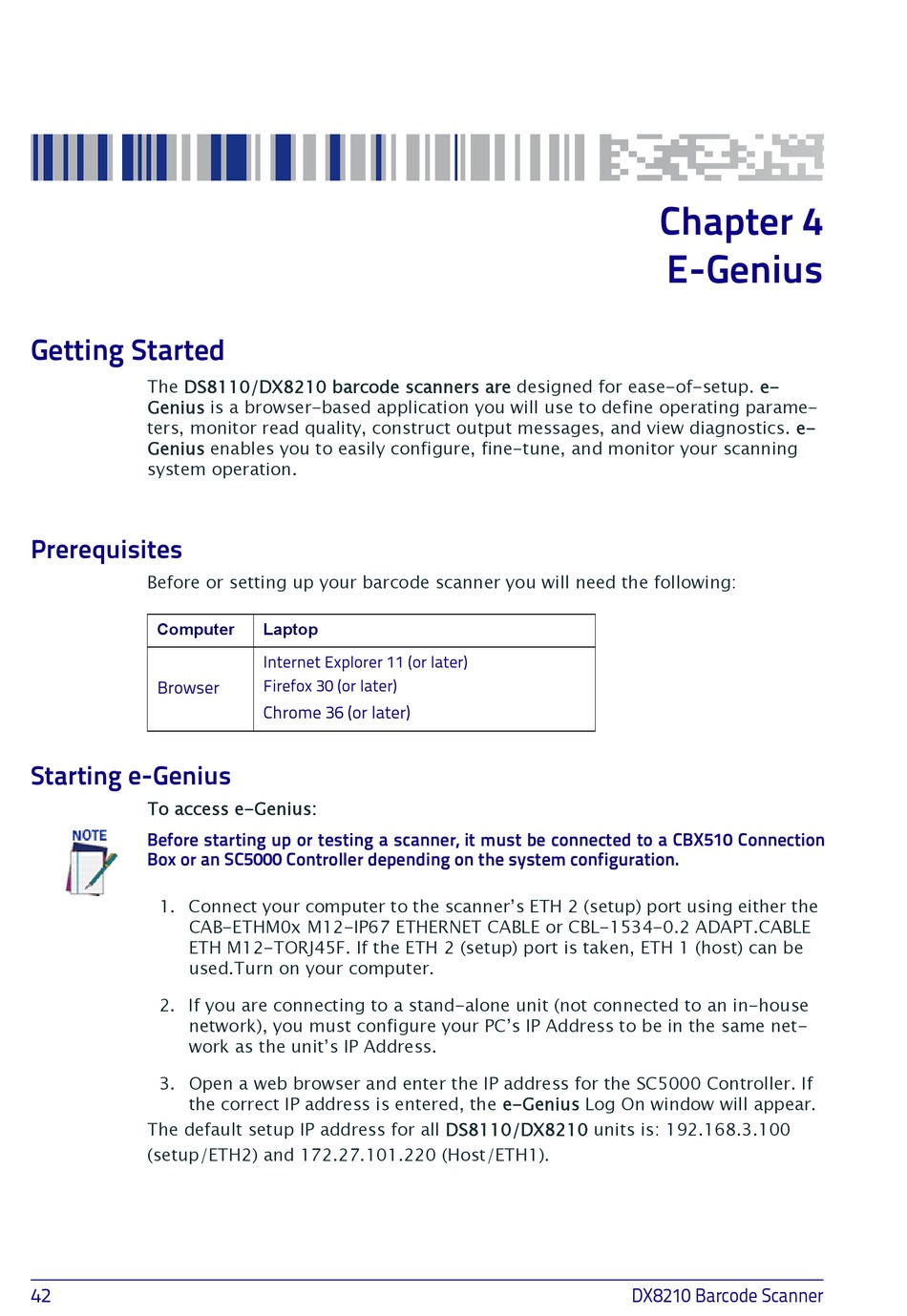

Getting Started

The DS8110/DX8210 barcode scanners are designed for ease-of-setup. e-
Genius is a browser-based application you will use to define operating parame-
ters, monitor read quality, construct output messages, and view diagnostics. e-
Genius enables you to easily configure, fine-tune, and monitor your scanning
system operation.

Prerequisites

Before or setting up your barcode scanner you will need the following:
Computer
Browser

Starting e-Genius

To access e-Genius:
Before starting up or testing a scanner, it must be connected to a CBX510 Connection
Box or an SC5000 Controller depending on the system configuration.
1. Connect your computer to the scanner's ETH 2 (setup) port using either the
CAB-ETHM0x M12-IP67 ETHERNET CABLE or CBL-1534-0.2 ADAPT.CABLE
ETH M12-TORJ45F. If the ETH 2 (setup) port is taken, ETH 1 (host) can be
used.Turn on your computer.
2. If you are connecting to a stand-alone unit (not connected to an in-house
network), you must configure your PC's IP Address to be in the same net-
work as the unit's IP Address.
3. Open a web browser and enter the IP address for the SC5000 Controller. If
the correct IP address is entered, the e-Genius Log On window will appear.
The default setup IP address for all DS8110/DX8210 units is: 192.168.3.100
(setup/ETH2) and 172.27.101.220 (Host/ETH1).
42
Laptop
Internet Explorer 11 (or later) 
Firefox 30 (or later)
Chrome 36 (or later)
Chapter 4

E-Genius

DX8210 Barcode Scanner
