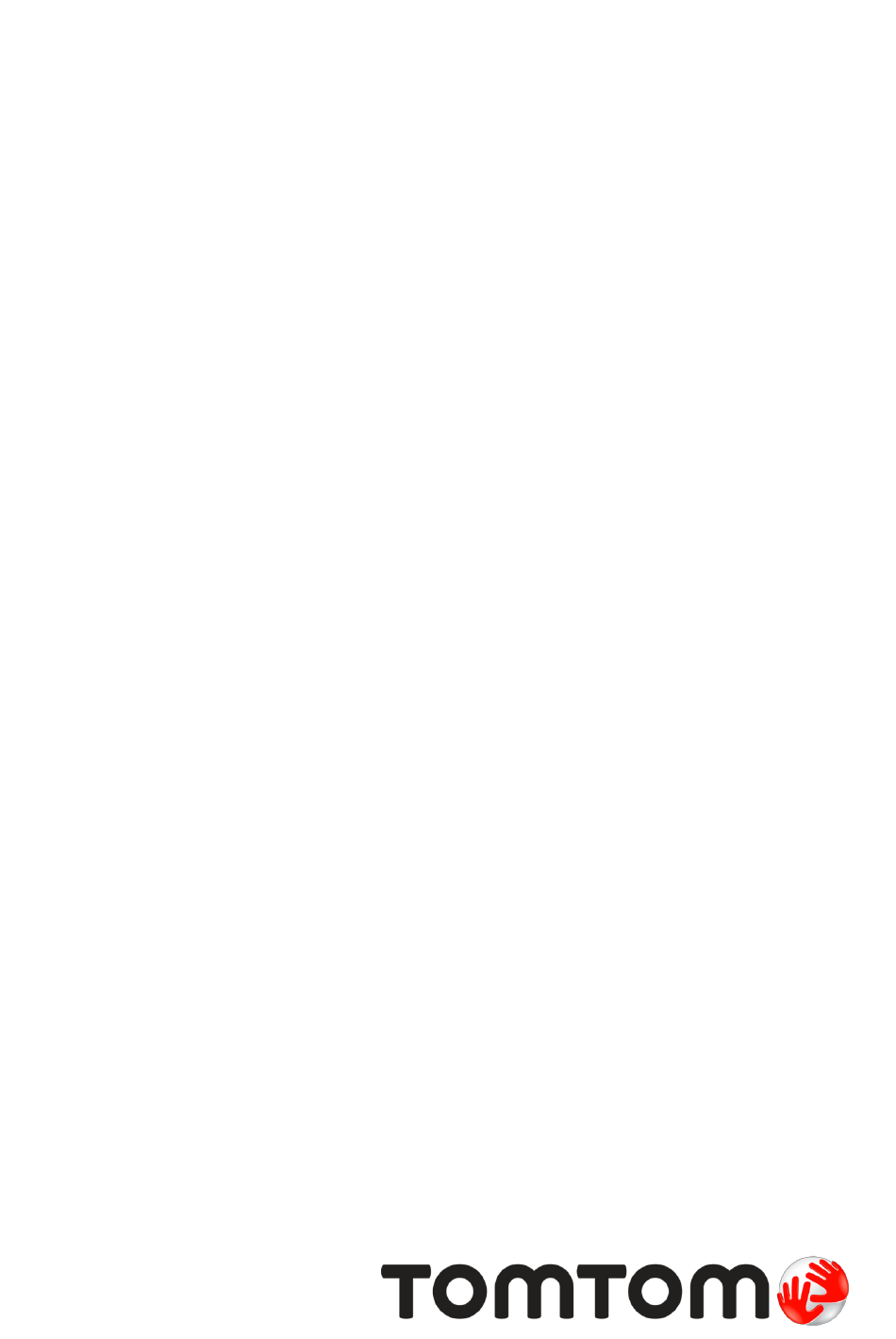

- Page 1 TomTom LINK 201 User Manual...
-
Page 2: Table Of Contents
What you need for the installation ....................4 Safety first Important safety notices and warnings ..................... 5 Preparations Activating the LINK 201 ........................6 Choosing the correct position ......................6 Connecting the LINK 201 Diagnostics Understading your LINK 201 ......................8 Troubleshooting .......................... -
Page 3: What's In The Box

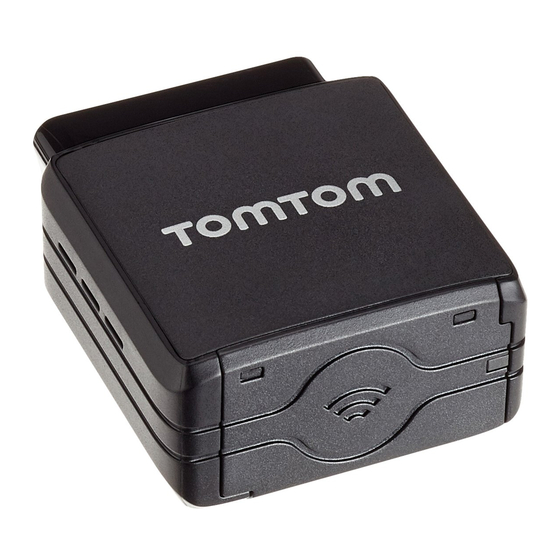

What’s in the box TomTom LINK 201 1. OBD-II connector. 2. Bi-colour LED (red/green) - connection and system status indicator. 3. Micro-USB-cable connector for maintenance - for qualified personnel from TomTom Telematics only Installation booklet ... -
Page 4: Read Me First
With WEBFLEET from TomTom Telematics you are connected to your people out on the road in a smart and easy way. TomTom LINK 201 is a GPS receiver and mobile network module in one unit, providing the vehicle’s current position. -
Page 5: Safety First
Danger of explosion Parts of the TomTom LINK 201 can cause sparks that can lead to explosions. This may endanger human health and life. Do not use the unit in areas with high risk of explosion. When using a TomTom LINK 201 in a vehicle fuelled by liquefied gas, follow the safety regulations of the country in which the vehicle is operated. -
Page 6: Preparations
5 cm (2 inches) and the top side must not be obstructed by metal items. If the OBD-II connector of your vehicle does not provide enough space to insert the LINK 201, ... -
Page 7: Connecting The Link 201
3. Insert the LINK 201 into the OBD-II port. If the space surrounding the OBD-II port in your vehicle does not allow the LINK 201 to be inserted, you can use the OBD-II extension cable from TomTom Telematics. If you use the OBD-II extension cable, make sure you have firmly fixed it so it cannot drop off. -
Page 8: Diagnostics
Troubleshooting If your LINK 201 does not report trips to WEBFLEET properly anymore, the device may need to be reset. For this please contact the TomTom Telematics Customer Support. If you experience technical issues or have frequently asked questions, please go to the Customer... -
Page 9: Technical Data
Technical data Processor ARM 11 - 500 MHz 64 MB NAND Flash 256 MB Mobile networks Quad-band GSM/GPRS module Integrated mobile network antenna GPS receiver - Sirf Atlas V Sensitivity: -161dBm, 64 channels Integrated GPS antenna Acceleration sensor 3D accelerometer +-2g, +-4g,+-8g. -
Page 10: Addendum
Government of Russia, which is solely responsible for its availability and accuracy. Changes in GPS or GLONASS availability and accuracy, or in environmental conditions may impact the operation of this device. TomTom disclaims any liability for the availability and accuracy of GPS or GLONASS. - Page 11 R&TTE directive Hereby, TomTom declares that TomTom products and accessories are in compliance with the essential requirements and other relevant provisions of the EU Directive 1999/5/EC. The declaration of conformity can be found here: tomtom.com/legal. WEEE directive The wheelie bin symbol on the product or its packaging indicates that this product shall not be treated as household waste.
- Page 12 TomTom or its suppliers. The use of this material is subject to the terms of a licence agreement. Any unauthorised copying or disclosure of this material will lead to criminal and civil liabilities.
