Summary of Contents for TomTom LINK 200
- Page 1 TomTom LINK 200 Reference Guide...
-
Page 2: Table Of Contents
What you need for the installation ....................4 Safety first Important safety notices and warnings ..................... 5 Preparations Activating the LINK 200 ........................6 Choosing the correct position ......................6 Connecting the LINK 200 Diagnostics Understading your LINK 200 ......................8 Troubleshooting .......................... -
Page 3: What's In The Box

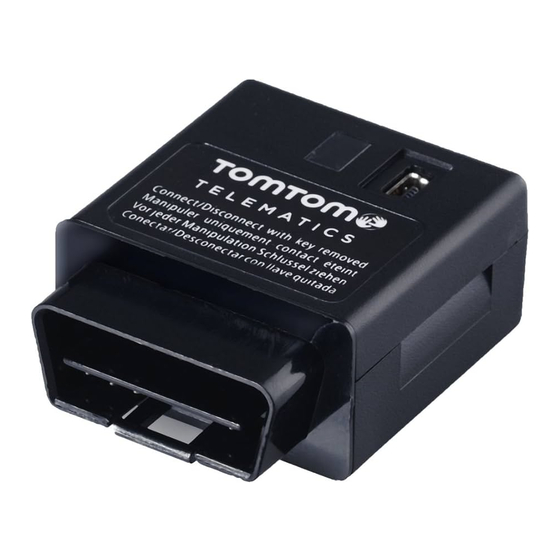

What’s in the box TomTom LINK 200 1. Mini-USB-cable connector for maintenance - for qualified personnel from TomTom Telematics only. 2. Bi-colour LED (red/green) - connection and system status indicator. 3. OBD-II connector. Installation leaflet ... -
Page 4: Read Me First
With WEBFLEET from TomTom Telematics you are always connected to your people out on the road in a smart and easy way. TomTom LINK 200 is a GPS receiver and mobile network module in one unit, always providing the vehicle’s current position. -
Page 5: Safety First
Caution - danger of explosion Parts of the TomTom LINK 200 can cause sparks that can lead to explosions. This may en- danger human health and life. Do not use the unit in areas with high risk of explosion. When using a TomTom LINK 200 in a vehicle fuelled by liquefied gas, follow the safety regulations of the country in which the vehicle is operated. -
Page 6: Preparations
5 cm (2 inches) and the top side must not be obstructed by metal items. If the OBD-II connector of your vehicle does not provide enough space to insert the LINK 200, ... -
Page 7: Connecting The Link 200
7. Wait for minimum five minutes. The LINK 200 registers the voltage differences and calibrates to detect ignition off events. If you have disconnected and connected the LINK 200 to the OBD-II port of the same vehicle there is no need to calibrate it again. -
Page 8: Diagnostics
Mobile network and GPS reception established. Troubleshooting If your LINK 200 does not report trips To WEBFLEET properly anymore, the device may need to be reset. For this please contact the TomTom Telematics Customer Support. If you experience technical issues or have frequently asked questions, please go to the Customer... -
Page 9: Technical Data
Technical data Processor ARM 11 - 500 MHz 64 MB NAND Flash 256 MB Mobile networks Quad-band GSM/GPRS module Integrated mobile network antenna GPS receiver - Sirf Atlas V Integrated GPS antenna Acceleration sensor 3D acceleromenter Mini USB 2.0 Supply voltage 12 V (min. -
Page 10: Addendum
The information in this document is subject to change without notice. TomTom shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from the performance or use of this document. This document contains information protected by copyright. - Page 11 Copyright notices © 2014 TomTom. All rights reserved. TomTom and the "two hands" logo are registered trade- marks of TomTom Telematics B.V. or one of its subsidiaries. Please see tomtom.com/legal limited warranty and end user licence agreements applying to this product.
