TC-32 User's Guide

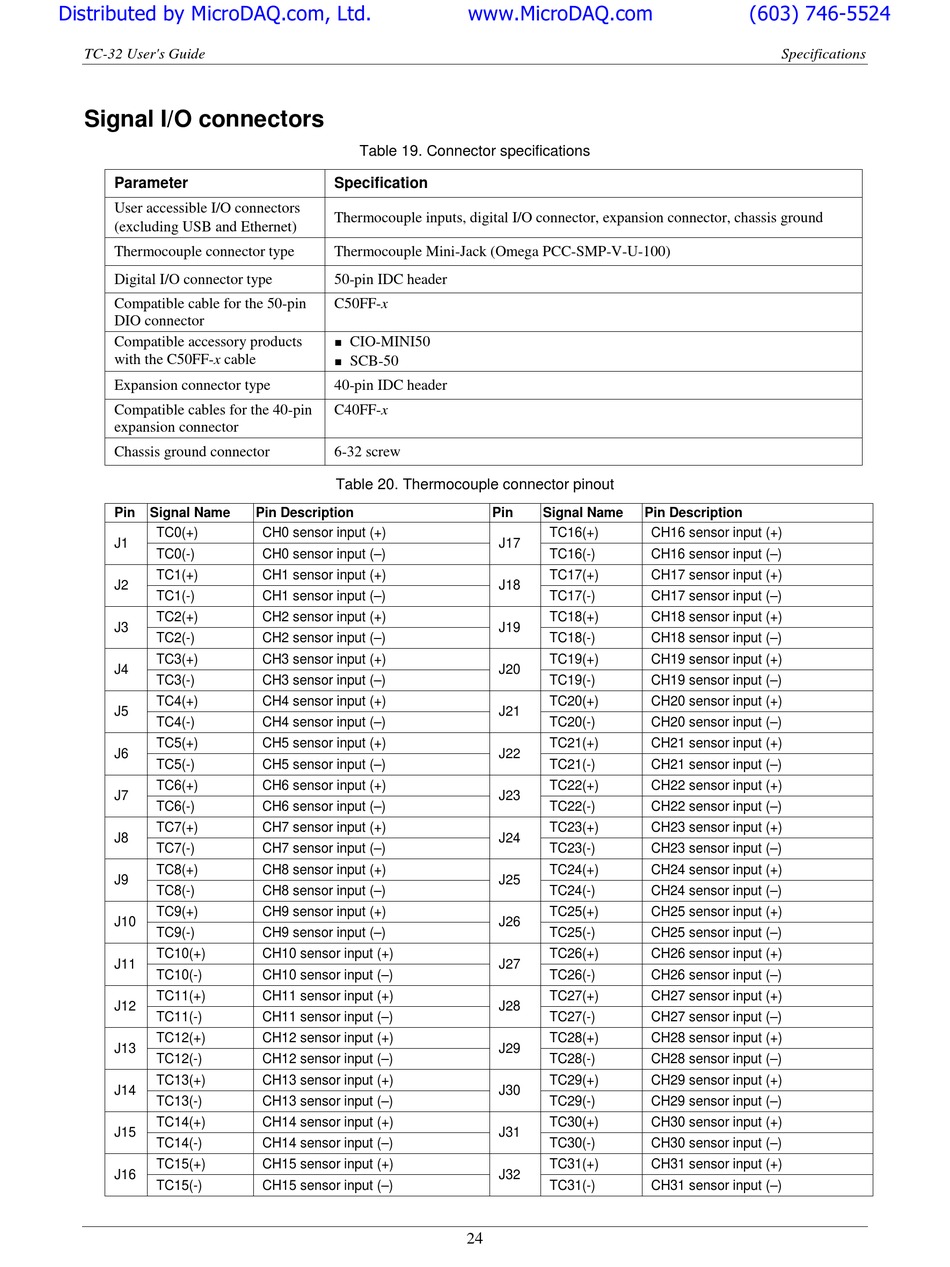

Signal I/O connectors

Parameter
User accessible I/O connectors
(excluding USB and Ethernet)
Thermocouple connector type
Digital I/O connector type
Compatible cable for the 50-pin
DIO connector
Compatible accessory products
with the C50FF-x cable
Expansion connector type
Compatible cables for the 40-pin
expansion connector
Chassis ground connector
Pin Signal Name
TC0(+)
J1
TC0(-)
TC1(+)
J2
TC1(-)
TC2(+)
J3
TC2(-)
TC3(+)
J4
TC3(-)
TC4(+)
J5
TC4(-)
TC5(+)
J6
TC5(-)
TC6(+)
J7
TC6(-)
TC7(+)
J8
TC7(-)
TC8(+)
J9
TC8(-)
TC9(+)
J10
TC9(-)
TC10(+)
J11
TC10(-)
TC11(+)
J12
TC11(-)
TC12(+)
J13
TC12(-)
TC13(+)
J14
TC13(-)
TC14(+)
J15
TC14(-)
TC15(+)
J16
TC15(-)
Table 19. Connector specifications
Specification
Thermocouple inputs, digital I/O connector, expansion connector, chassis ground
Thermocouple Mini-Jack (Omega PCC-SMP-V-U-100)
50-pin IDC header
C50FF-x
CIO-MINI50

SCB-50

40-pin IDC header
C40FF-x
6-32 screw
Table 20. Thermocouple connector pinout
Pin Description
CH0 sensor input (+)
CH0 sensor input (–)
CH1 sensor input (+)
CH1 sensor input (–)
CH2 sensor input (+)
CH2 sensor input (–)
CH3 sensor input (+)
CH3 sensor input (–)
CH4 sensor input (+)
CH4 sensor input (–)
CH5 sensor input (+)
CH5 sensor input (–)
CH6 sensor input (+)
CH6 sensor input (–)
CH7 sensor input (+)
CH7 sensor input (–)
CH8 sensor input (+)
CH8 sensor input (–)
CH9 sensor input (+)
CH9 sensor input (–)
CH10 sensor input (+)
CH10 sensor input (–)
CH11 sensor input (+)
CH11 sensor input (–)
CH12 sensor input (+)
CH12 sensor input (–)
CH13 sensor input (+)
CH13 sensor input (–)
CH14 sensor input (+)
CH14 sensor input (–)
CH15 sensor input (+)
CH15 sensor input (–)
www.MicroDAQ.com
Pin Signal Name
TC16(+)
J17
TC16(-)
TC17(+)
J18
TC17(-)
TC18(+)
J19
TC18(-)
TC19(+)
J20
TC19(-)
TC20(+)
J21
TC20(-)
TC21(+)
J22
TC21(-)
TC22(+)
J23
TC22(-)
TC23(+)
J24
TC23(-)
TC24(+)
J25
TC24(-)
TC25(+)
J26
TC25(-)
TC26(+)
J27
TC26(-)
TC27(+)
J28
TC27(-)
TC28(+)
J29
TC28(-)
TC29(+)
J30
TC29(-)
TC30(+)
J31
TC30(-)
TC31(+)
J32
TC31(-)
24
(603) 746-5524
Specifications
Pin Description
CH16 sensor input (+)
CH16 sensor input (–)
CH17 sensor input (+)
CH17 sensor input (–)
CH18 sensor input (+)
CH18 sensor input (–)
CH19 sensor input (+)
CH19 sensor input (–)
CH20 sensor input (+)
CH20 sensor input (–)
CH21 sensor input (+)
CH21 sensor input (–)
CH22 sensor input (+)
CH22 sensor input (–)
CH23 sensor input (+)
CH23 sensor input (–)
CH24 sensor input (+)
CH24 sensor input (–)
CH25 sensor input (+)
CH25 sensor input (–)
CH26 sensor input (+)
CH26 sensor input (–)
CH27 sensor input (+)
CH27 sensor input (–)
CH28 sensor input (+)
CH28 sensor input (–)
CH29 sensor input (+)
CH29 sensor input (–)
CH30 sensor input (+)
CH30 sensor input (–)
CH31 sensor input (+)
CH31 sensor input (–)
