Vector VR1000 GNSS Receiver Quick Reference Guide
(QRG)
Introduction
Created by Hemisphere GNSS, this QRG provides information and
the steps to follow to set up your Vector VR1000 GNSS Receiver.
VR1000 key
Key features of the VR1000 include:
features
• High-precision positioning in Athena RTK, Atlas L-band, and SBAS
• Athena technology for improved RTK performance, especially
with GLONASS, Galileo, and BeiDou
• Atlas* L-band technology providing highly accurate corrections
over the air (*Requires the purchase of a subscription)
• Heave of 30 cm RMS (DGNSS), 10 cm (RTK)
• Pitch and roll < 1° RMS
• Heading accuracy up to .01°
Mounting
When considering where to mount the VR1000, consider the
following satellite reception recommendations:
• Ensure cable length is adequate to route into the machine to
reach a breakout box or terminal strip.
• Do not mount the receiver where environmental conditions
exceed those specified in the VR1000 Technical Specifications of
this document.
• Route cables away from any potential source of mechanical
damage.
875-0422-10 Vector VR1000 QRG Rev A1
March 29, 2019

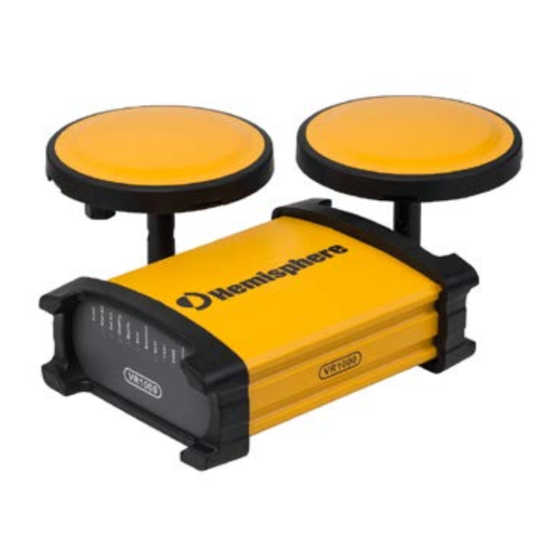

Figure 1: VR1000 GNSS Receiver
Continued on next page
Page 1 of 36
Advertisement
Related Manuals for Hemisphere GPS Vector VR1000
Summary of Contents for Hemisphere GPS Vector VR1000
- Page 1 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Introduction Created by Hemisphere GNSS, this QRG provides information and the steps to follow to set up your Vector VR1000 GNSS Receiver. VR1000 key Key features of the VR1000 include: features • High-precision positioning in Athena RTK, Atlas L-band, and SBAS •...
-
Page 2: Mounting Orientation
Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Environmental Hemisphere Vector GNSS Receivers are designed to withstand considerations harsh environmental conditions; however, adhere to the following limits when storing and using the VR1000: • Operating temperature: -40°C to +70°C (-40°F to +158°F) •... -
Page 3: Vector Vr1000 Gnss Receiver Quick Reference Guide (Qrg)
Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Mounting orientation Figure 2: 0-degree heading bias example Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 3 of 36 March 29, 2019... - Page 4 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Mounting orientation example Figure 3: 90-degree heading bias example Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 4 of 36 March 29, 2019...
- Page 5 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Mounting orientation example, continued Figure 4: Negative 90-degree heading bias example Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 5 of 36 March 29, 2019...
- Page 6 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Mounting orientation example, continued Figure 5: 180-degree heading bias example Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 6 of 36 March 29, 2019...
- Page 7 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Mounting The VR1000 allows for two different mounting options: mount with options bolts, or mount with magnets. Serial port You may configure Port A or Port B of the GNSS receiver to output configuration any combination of data.
- Page 8 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued VR1000 Table 1 lists the communication items and technical specifications communication of the VR1000 GNSS receiver. specifications Table 1: VR1000 Communication Specifications Item Specification I/O ports 2x CAN, 1x Ethernet, 2x Serial (Port A...
-
Page 9: Event Mark
Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Power/data Table 2 lists the VR1000 connector pin-out. Refer to Appendix cable pin-out Figure B-1: Cable drawing for more detailed information. assignments, continued Table 2: VR1000 Connector Pin-out Description CAN2 Low... - Page 10 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Power/data Figure 6 shows the VR1000 back panel and pin-out. cable pin-out assignments, continued Figure 6: VR1000 back panel and pin-out Primary antenna GNSS Primary RF +5V to power antenna Secondary antenna...
- Page 11 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued LED Indicators The VR1000 has twelve LED lights located on the front panel of the unit. Table 3 below describes each LED indicator. Figure 7: VR1000 LED Table 3: LED indicators...
- Page 12 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued LED Indicators, continued Table 3: LED indicators (continued) Indicator Description/Function Bluetooth Solid BLUE indicates Bluetooth is turned on Flashing BLUE (1/sec) indicates Bluetooth is connected Wi-Fi Solid GREEN indicates Wi-Fi is operational...
- Page 13 Vector VR1000 GNSS Receiver Quick Reference Guide (QRG) Continued Recommend- When interfacing to other devices, ensure the transmit data ations for output and the signal grounds from the VR1000 are connected to connecting to the data input, and signal grounds of the other device.
-
Page 14: Configuring The Vr1000 Using The Webui
Lock, DSP Lock, Frame Sync, Frame Sync 2* *Note: For a definition of the L-band/SBAS fields refer to Appendix A, Terms and Definitions. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 14 of 36 March 29, 2019... - Page 15 Configuring the VR1000 Using the WebUI , Continued Tracking On the Tracking tab, the Sky Plot shows the azimuth, elevation, and SNR values of all tracked satellites. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 15 of 36 March 29, 2019...
- Page 16 Important: If you have purchased an activation or subscription, use the field on the System screen to enter the Subscription Code, and click the ‘arrows’ button. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 16 of 36 March 29, 2019...
- Page 17 • Reboot-reboot the unit Note: The filesystem cannot be used when Bluetooth is enabled. If Bluetooth is enabled, an option will be given to disable Bluetooth. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 17 of 36 March 29, 2019...
- Page 18 You can configure the following using the VR1000 WebUI: • Heading • CAN • Serial • Radio • Ethernet • Logging • Ntrip • Atlas • Miscellaneous Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 18 of 36 March 29, 2019...
- Page 19 The Heading menu displays the following data. Various heading settings can also be configured. Click the box of the desired setting and type the configuration setting values. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 19 of 36 March 29, 2019...
- Page 20 If the Vector will be operated within +/- 10 Operation degrees of level, you may use this mode of operation for increased robustness and faster acquisition times of the heading solution. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 20 of 36 March 29, 2019...
- Page 21 Default value: 2.0 s with gyro enabled Range: 0.0 to 60 s Formula: hrtau (s) = 10 / max rate of the rate of turn (°/s Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 21 of 36 March 29, 2019...
- Page 22 Formula: spdtau (s) = 10 / max acceleration (m/s MSEP The measured distance between the primary and secondary antenna. Must be accurate to within 2 cm. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 22 of 36 March 29, 2019...
- Page 23 Course-over-Ground (COG), and speed measurements. On the CAN configuration menu, turn ON/OFF CAN and select the Configuration baud rate (250 kbps, 500 kbps, or 1000 kbps). Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 23 of 36 March 29, 2019...
- Page 24 Hemisphere BIN messages. You can also change Port B from RS232 to RS422 and RS422 to RS232 reciprocally. Configure the Serial Port and click Output. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 24 of 36 March 29, 2019...
- Page 25 To add new channels, obtain and load a .ucf file from your dealer using the Upload Config File button. Choose a channel and select the protocol. For Satel protocol, you may turn FEC OFF/ON. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 25 of 36 March 29, 2019...
- Page 26 Use the Radio Advanced Configuration screen to manually enter Radio frequencies or upload a Configuration file of frequencies. Contact HGNSS Technical Support for Configuration files. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 26 of 36 March 29, 2019...
- Page 27 Note: Files cannot be downloaded from the VR1000 filesystem when Bluetooth is enabled. Logging Log data to the internal memory of the VR1000 or download a previously saved log. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 27 of 36 March 29, 2019...
- Page 28 “Raw” activation on the or 20Hz included). receiver. Heading Heading logs the following messages: • GPHDT • GPHDM • GPHDG • HPR • BIN3 Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 28 of 36 March 29, 2019...
- Page 29 To stop logging, de-select the Enabled button and press Save Settings. If you power off the receiver without properly closing a log, the log file will become corrupted. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 29 of 36 March 29, 2019...
- Page 30 You can manually configure the frequency and bandwidth of the L- band satellite you wish to track, or simply click the Auto button and let the receiver track automatically. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 30 of 36 March 29, 2019...
- Page 31 Atlas Datum If using Atlas (not RTK), datum defaults to ITRF08. You can change Datum Type to GDA94 or enter custom reference frame offsets. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 31 of 36 March 29, 2019...
- Page 32 Orientation-selects the position in which the receiver is installed. Device Name-the name of device that displays at the top of the screen. TCP Server-use to change the listening port. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 32 of 36 March 29, 2019...
- Page 33 The average number of symbol errors per message frame. Carrier Lock Indicates the receiver is tracking the satellite frequency. Frame Sync Indicates the receiver is properly decoding the Atlas™ data message. 875-0422-10 Vector VR1000 QRG Rev A1 Page 33 of 36 March 29, 2019...
- Page 34 Appendix B Figure B-1 shows the VR1000 Cable Pin-out assignments. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 34 of 36 March 29, 2019...
- Page 35 Appendix B , Continued Figure B-2 shows the pin assignments for the J1 – J6 connectors. Continued on next page 875-0422-10 Vector VR1000 QRG Rev A1 Page 35 of 36 March 29, 2019...
- Page 36 Appendix B , Continued Figure B2: J1 – J6 Connectors 875-0422-10 Vector VR1000 QRG Rev A1 Page 36 of 36 March 29, 2019...
