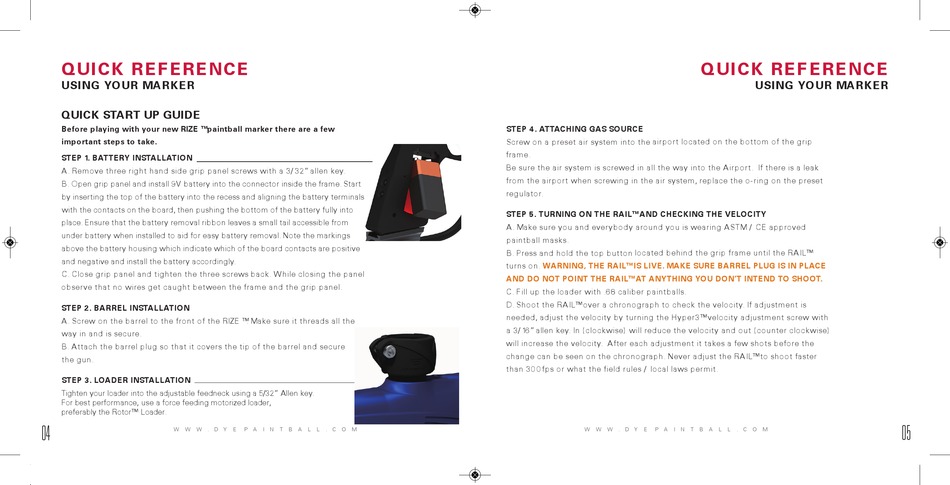

QUICK START UP GUIDE

Before playing with your new RIZE ™ paintball marker there are a few
important steps to take.
STEP 1. BATTERY INSTALLATION
A . Remove three rig ht hand sid e g rip p anel screws with a 3/ 32" allen key.
B. Open grip panel and install 9V battery into the connector inside the frame. Start
by inserting the top of the battery into the recess and aligning the battery terminals
with the contacts on the board, then pushing the bottom of the battery fully into
place. Ensure that the battery removal ribbon leaves a small tail accessible from
under battery when installed to aid for easy battery removal. Note the markings
above the battery housing which indicate which of the board contacts are positive
and negative and install the battery accordingly.
C. Close g rip p anel and tig hten the three screws b ack. W hile closing the p anel
ob serve that no wires g et caug ht b etween the frame and the g rip p anel.
STEP 2. BARREL INSTALLATION
A . Screw on the b arrel to the front of the RIZE ™ . Make sure it thread s all the
way in and is secure.
B. Attach the b arrel p lug so that it covers the tip of the b arrel and secure
the g un.
STEP 3. LOADER INSTALLATION
Tighten your loader into the adjustable feedneck using a 5/32" Allen key.
For best performance, use a force feeding motorized loader,
preferably the Rotor™ Loader.
04
W W W . D Y E P A I N T B A L L . C O M
STEP 4 . ATTACHING GAS SOURCE
Screw on a p reset air system into the airp ort located on the b ottom of the g rip
frame.
Be sure the air system is screwed in all the way into the A irp ort. If there is a leak
from the airp ort when screwing in the air system, rep lace the o- ring on the p reset
reg ulator.
STEP 5. TURNING ON THE RAIL™ AND CHECKING THE VELOCITY
A . Make sure you and everyb od y around you is wearing A STM / CE ap p roved
p aintb all masks.
B. Press and hold the top b utton located b ehind the g rip frame until the RA IL™
turns on. WARNING, THE RAIL™ IS LIVE. MAKE SURE BARREL PLUG IS IN PLACE
AND DO NOT POINT THE RAIL™ AT ANYTHING YOU DON'T INTEND TO SHOOT.
C. F ill up the load er with .68 calib er p aintb alls.
D. Shoot the RA IL™ over a chronog rap h to check the velocity. If ad justment is
need ed , ad just the velocity by turning the Hyp er3™ velocity ad justment screw with
a 3/ 16" allen key. In ( clockwise) will red uce the velocity and out ( counter clockwise)
will increase the velocity. A fter each ad justment it takes a few shots b efore the
chang e can b e seen on the chronog rap h. Never ad just the RA IL™ to shoot faster
than 30 0 fp s or what the field rules / local laws p ermit.
