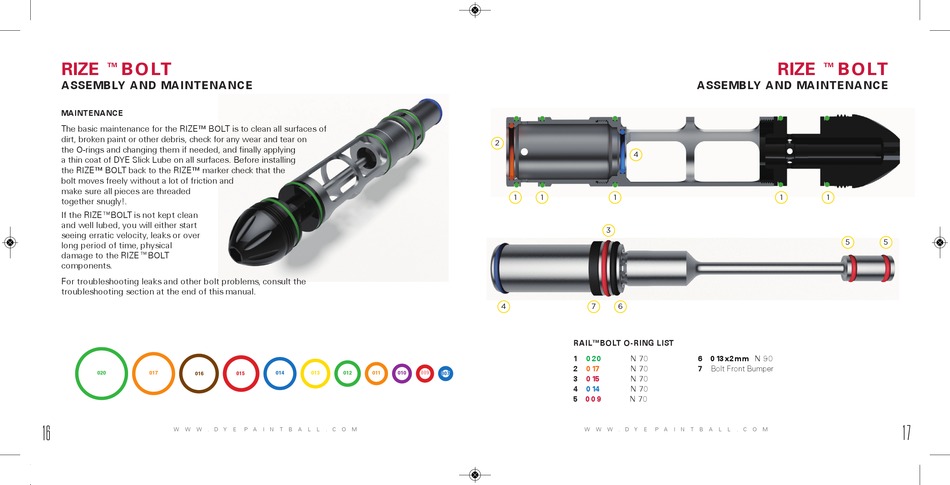

RIZE B O LT
™
A SSE MB LY A ND MA I NTE NA NC E
MAINTENANCE
The basic maintenance for the RIZE™ BOLT is to clean all surfaces of
dirt, broken paint or other debris, check for any wear and tear on
the O-rings and changing them if needed, and finally applying
a thin coat of DYE Slick Lube on all surfaces. Before installing
the RIZE™ BOLT back to the RIZE™ marker check that the
bolt moves freely without a lot of friction and
make sure all pieces are threaded
together snugly!.
If the RIZE ™ BOLT is not kept clean
and well lubed, you will either start
seeing erratic velocity, leaks or over
long period of time, physical
damage to the RIZE ™ BOLT
components.
For troubleshooting leaks and other bolt problems, consult the
troubleshooting section at the end of this manual.
