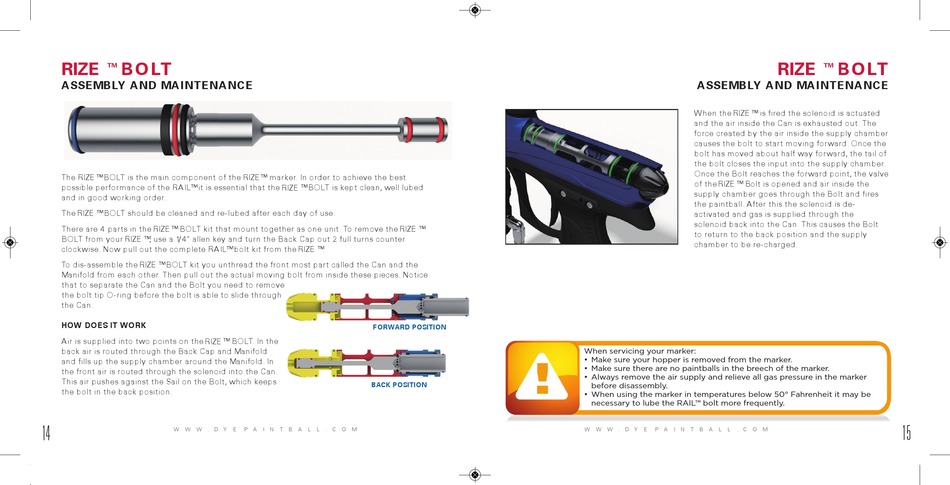

Proto Rize Owner's Manual page 9

RIZE B O LT
™
A SSE MB LY A ND MA I NTE NA NC E
The RIZE ™ BOLT is the main comp onent of the
p ossib le p erformance of the RA IL™ it is essential that the
and in g ood working ord er.
The RIZE ™ BOLT should b e cleaned and re- lub ed after each d ay of use.
There are 4 p arts in the RIZE ™ BOLT kit that mount tog ether as one unit. To remove the
BOLT from your RIZE ™ , use a 1 / 4 " allen key and turn the Back Cap out 2 full turns counter
clockwise. Now p ull out the comp lete RA IL™ b olt kit from the
To d is- assemb le the RIZE ™ BOLT kit you unthread the front most p art called the Can and the
Manifold from each other. Then p ull out the actual moving b olt from insid e these p ieces. Notice
that to sep arate the Can and the Bolt you need to remove
the b olt tip O- ring b efore the b olt is ab le to slid e throug h
the Can.
HOW DOES IT WORK
A ir is sup p lied into two p oints on the RIZE
b ack air is routed throug h the Back Cap and Manifold
and fills up the sup p ly chamb er around the Manifold . In
the front air is routed throug h the solenoid into the Can.
This air p ushes ag ainst the Sail on the Bolt, which keep s
the b olt in the b ack p osition.
14
W W W . D Y
RIZE ™ marker. In ord er to achieve the b est
™ BOLT is kep t clean, well lub ed
RIZE
RIZE
RIZE ™ .
F ORWARD POSITION
™ BOLT. In the
BACK POSITION
E P A I N T B A L L . C O M
™
When servicing your marker:
• Make sure your hopper is removed from the marker.
• Make sure there are no paintballs in the breech of the marker.
• Always remove the air supply and relieve all gas pressure in the marker
before disassembly.
• When using the marker in temperatures below 50° Fahrenheit it may be
necessary to lube the RAIL™ bolt more frequently.
W W
RIZE
A SSE MB LY A ND MA I NTE NA NC E
W hen the RIZE ™ is fired the solenoid is actuated
and the air insid e the Can is exhausted out. The
force created by the air insid e the sup p ly chamb er
causes the b olt to start moving forward . Once the
b olt has moved ab out half way forward , the tail of
the b olt closes the inp ut into the sup p ly chamb er.
Once the Bolt reaches the forward p oint, the valve
of the RIZE ™ Bolt is op ened and air insid e the
sup p ly chamb er g oes throug h the Bolt and fires
the p aintb all. After this the solenoid is d e-
activated and g as is sup p lied throug h the
solenoid b ack into the Can. This causes the Bolt
to return to the b ack p osition and the sup p ly
chamb er to b e re- charg ed .
