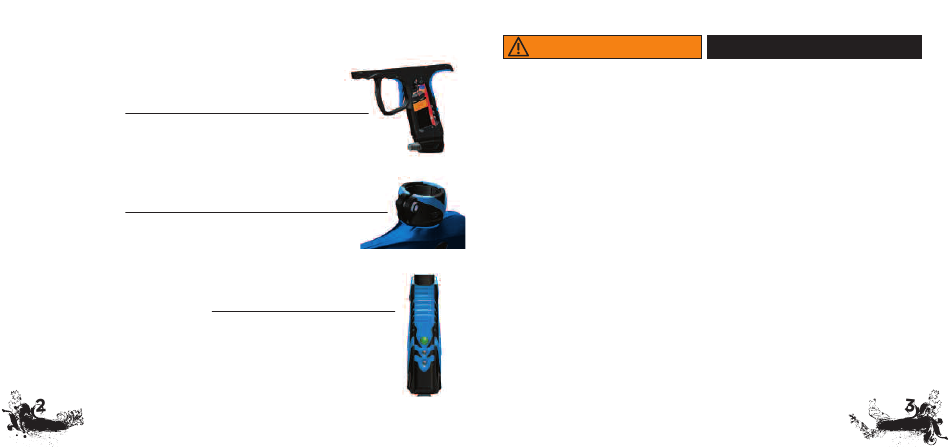

QUICK REFERENCE - USING YOUR MARKER

QUICK START UP GUIDE

Before playing with your new PMR paintball marker there are a few important steps to take.
STEP 1. BATTERY INSTALLATION
A. Remove two left hand side grip panel screws with a 3/32" allen key
B. Open grip panel and install 9V battery into the connector inside the frame
C. Close grip panel and tighten the two screws back. While closing the panel observe that no wires get caught between the frame and the grip panel
STEP 2. BARREL INSTALLATION
A. Screw on the barrel to the front of the PMR. Make sure it threads all the way in and tightens good
B. Attached the barrel sock so that it covers the tip of the barrel and secure the strap around the back of the PMR
STEP 3. LOADER INSTALLATION
A. Tighten your loader into the adjustable feed neck on the PMR with a 5/32" sized allen key. For best performance you need a force feeding
motorized loader.
STEP 4. ATTACHING GAS SOURCE
A. Screw on a preset air system into the airport located on the bottom of the grip frame. Make sure air system is screwed in all the way. If there is a leak
screwing in the air system or if no gas comes out of the air system even when screwed in all the way consult page 11 in this manual for pin depressor
adjustment.
STEP 5. TURNING ON THE PMR AND CHECKING THE VELOCITY
A. Make sure you and everybody around you is wearing ASTM / CE approved paintball masks
B. Press and hold the top button located behind the grip frame until the PMR turns on. WARNING, the PMR is LIVE. Make sure barrel sock is in place and
do not point the PMR to anything you don't intend to shoot.
C. Fill up the loader with .68 caliber paintballs
D. Shoot the PMR over a chronograph to check the velocity. If adjustment is needed adjust the velocity by turning the Hyper2 velocity adjustment screw
with a 3/16" allen key. In (clockwise) will reduce the velocity and out (counter clockwise) will increase the velocity. After each adjustment it takes a few
shots before the change can be seen on the chronograph. Never adjust the PMR to shoot faster than 300fps or what the field rules / local laws permit.
W W W . P R O T O P A I N T B A L L . C O M
W A R N I N G
I M P O R T A N T S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S
• The PMR marker is not a toy. Misuse may cause serious injury or death.
• Please read, understand and follow the directions in the PMR owner's manual.
• Eye protection that is designed specifically for paintball and meets ASTM/CE standards must be worn by user and
persons within range.
• Recommend 18 years or older to purchase. Person under 18 must have adult supervision.
• Always treat the PMR marker as if it were loaded and able to fire.
• Only use compressed air or nitrogen gas in the PMR marker. DO NOT USE CO
• Do not exceed 850 psi input pressure.
• Only use .68 caliber paintballs that meet ASTM/CE standards
• Ensure all air lines and fittings are tightened and secured before gassing up the PMR.
• Always chronograph the PMR marker before playing paintball.
• Never shoot the PMR marker at velocities in excess of 300 feet per second, or at velocities greater than local or
national laws allow.
• Never look into the barrel or breech area of the PMR when the marker is switched on and able to fire.
• Compressed gas is dangerous, do not allow compressed gas to come in contact with your skin or try to stop a
leak by covering it with your hand
• Always fit a barrel blocking device to your PMR when not in use on the field of play.
• The owner's manual and any related warnings or instructions should always accompany the product for reference
or in the event of resale and new ownership.
• Do not point the PMR marker at anything that you do not intend to shoot.
• Do not shoot at people, animals, houses, cars or anything not related to the sport of paintball.
• Do not fire the PMR without the bolt screwed in completely.
• If you read these instructions and do not fully understand them or are unsure of your ability to make necessary
adjustments properly, call DYE Precision or your local pro shop for help.
