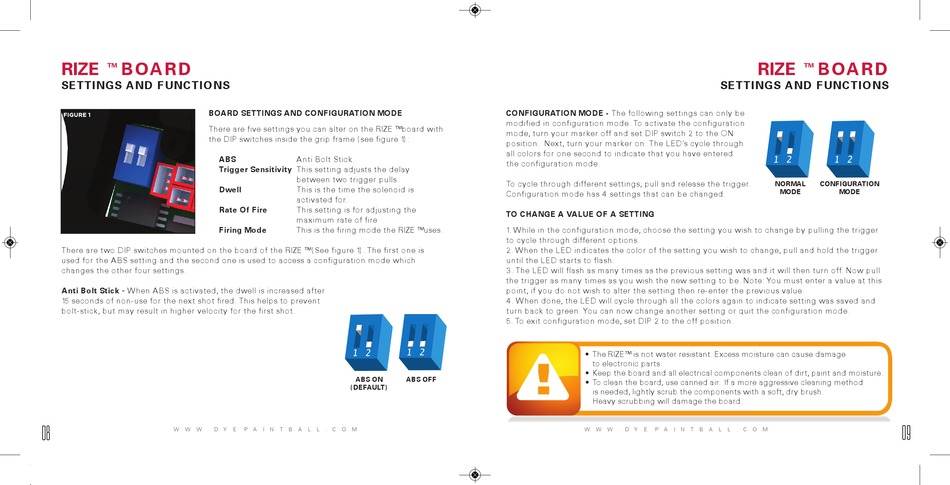

BOARD SETTINGS AND CONFIGURATION MODE
FIGURE 1
There are five setting s you can alter on the RIZE ™ b oard with
the DIP switches insid e the g rip frame ( see fig ure 1 ) :
ABS
Trigger Sensitivity This setting ad justs the d elay
Dwell
Rate Of F ire
Firing Mode
There are two DIP switches mounted on the b oard of the RIZE ™ ( See fig ure 1) . The first one is
used for the A BS setting and the second one is used to access a config uration mod e which
chang es the other four setting s.
Anti Bolt Stick - W hen A BS is activated , the d well is increased after
15 second s of non- use for the next shot fired . This help s to p revent
b olt- stick, b ut may result in hig her velocity for the first shot.
08
W W W . D Y
A nti Bolt Stick.
b etween two trig g er p ulls.
This is the time the solenoid is
activated for.
This setting is for ad justing the
maximum rate of fire
This is the firing mode the RIZE ™ uses.
ABS ON ABS OFF
( DEFAULT)
E P A I N T B A L L . C O M
CONF IGURATION MODE - The following setting s can only b e
mod ified in config uration mod e. To activate the config uration
mod e, turn your marker off and set DIP switch 2 to the ON
p osition. Next, turn your marker on. The LED's cycle throug h
all colors for one second to ind icate that you have entered
the config uration mod e.
To cycle throug h d ifferent setting s, p ull and release the trig g er.
Config uration mod e has 4 setting s that can b e chang ed .
TO CHANGE A VALUE OF A SETTING
1. W hile in the config uration mod e, choose the setting you wish to chang e by p ulling the trig g er
to cycle throug h d ifferent op tions.
2. W hen the LED ind icates the color of the setting you wish to chang e, p ull and hold the trig g er
until the LED starts to flash.
3. The LED will flash as many times as the p revious setting was and it will then turn off. Now p ull
the trig g er as many times as you wish the new setting to b e. Note: You must enter a value at this
p oint, if you d o not wish to alter the setting then re- enter the p revious value.
4 . W hen d one, the LED will cycle throug h all the colors ag ain to ind icate setting was saved and
turn b ack to g reen. You can now chang e another setting or q uit the config uration mod e.
5. To exit config uration mod e, set DIP 2 to the off p osition.
• The RIZE™ is not water resistant. Excess moisture can cause damage
to electronic parts.
• Keep the board and all electrical components clean of dirt, paint and moisture.
• To clean the board, use canned air. If a more aggressive cleaning method
is needed, lightly scrub the components with a soft, dry brush.
Heavy scrubbing will damage the board.
