*47986704*
47986704

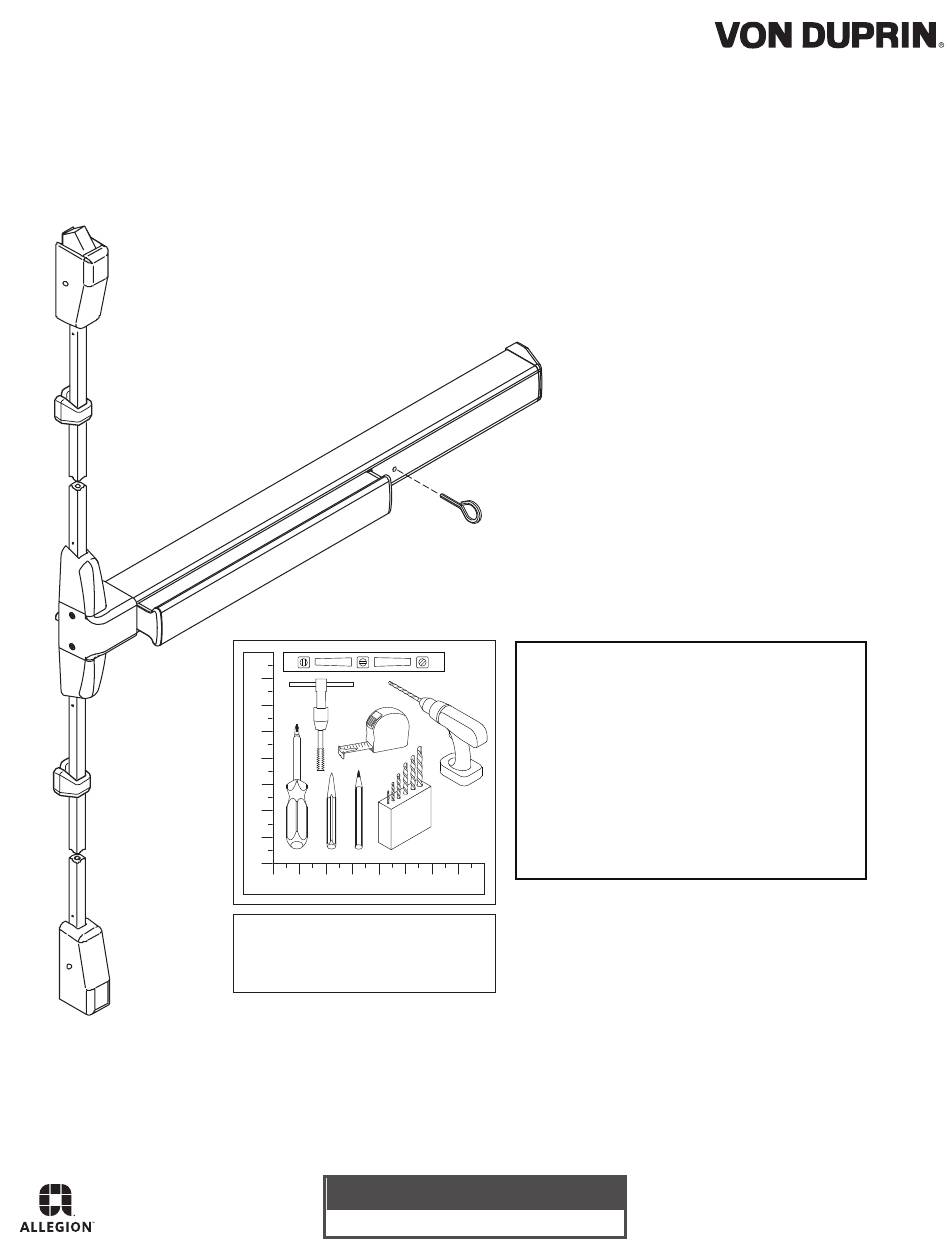

Surface Vertical Rod Exit Device
Devices covered by these instructions:
7527 Surface Vertical Rod Exit Device
7527-F (Fire) Surface Vertical Rod Exit Device
CD7527 Surface Vertical Rod Exit Device
QEL7527/27-F Surface Vertical Rod Exit Device
Special tools needed:
#10-24, #8-32 tap
Drill bits: #25, 3/32", 1/8", 1/4", 5/16",
13/32", 1/2"
Customer Service
1-877-671-7011
7527
Dogging Key
(use with non-fire devices
to lock down pushbar)
• Screw chart ............................ 2
• Device installation ................ 3-6
• Cut top rod .............................. 7
• Install rod extension................. 7
• Optional equipment ................. 8
• Templates ......................... 9-14
www.allegion.com/us
Installation Instructions
Index:
47986704 Rev. 04/24-a
© Allegion 2024
Printed in U.S.A.
Advertisement
Table of Contents
Related Manuals for Von Duprin 7527
Summary of Contents for Von Duprin 7527
-
Page 1: Table Of Contents
Surface Vertical Rod Exit Device Installation Instructions Devices covered by these instructions: 7527 Surface Vertical Rod Exit Device 7527-F (Fire) Surface Vertical Rod Exit Device CD7527 Surface Vertical Rod Exit Device QEL7527/27-F Surface Vertical Rod Exit Device Dogging Key (use with non-fire devices... -
Page 2: Screw Chart
SCREW CHART Trim mount or sex bolts: 1/4-20 x 1” (1-3/4” door) (2-1/4” door) 1/4-20 x 1-1/2” #10-24 X 3/4” Surface mount or Sex bolts (1-3/4” door) #10-24 X 1-1/8” Sex bolts (2-1/4” door) #10-16 X 3/8” Thread cutting End cap 1/4-20 X 3/4”... -
Page 3: Device Installation
Figure backset and draw device center lines ( ) on door as shown. Backset is measured from outer edge of door as shown. Minimum stile is less glass stop (rectangular glass stop is recommended for stiles less than 2-1/8”) Stile width Backset Backset... - Page 4 Measure to determine Cut device to length. length to cut device. Prepare device for cutting 1-3/16” minimum clearance Tape (with end cap removed) Remove anti-rattle clip Cover plate (flush to pushbar) Pushbar Cut device square Note: Device must be cut square for proper end cap fit Note Cut device...
- Page 5 Install top latch and rod. Install top strike. 266 strike 260U strike For panic device For panic device 325 sex bolts application only application only (required) latch Top rod (longer of the two) 299/299F strike Shim to 3/16” If top rod is too long, see “Cut as shown 3/16”...
- Page 6 Adjust bottom rod with door Install bottom rod. open (top latch retracted). With door With door open: closed: Bottom #325 sex bolts (required) Latch bolt Latch bolt Bottom should clear floor should be latch and not bind on deadlocked strike (will not push in) Open and close door a few times and check for deadlocking when door is closed...
-
Page 7: Cut Top Rod
CUT TOP ROD 1. Measure amount to cut off rod as shown below. 2. Cut rod. Note: Rod cutting is required for doors shorter than 7’. Amount Drive out to cut off roll pin 3. Drill new hole. 1/8” dia. drill thru Use cut off *84”... -
Page 8: Optional Equipment
OPTIONAL EQUIPMENT CD (CYLINDER DOGGING) 1. Remove mortise cylinder cam and reinstall in reverse (Figure 1). Std. mortise cylinder 2. Insert key and rotate cam to install the cylinder to the cover plate (Figure 2). 3. Remove key to slide cover plate in position in the mechanism case. - Page 9 TOP TEMPLATE...
- Page 10 TOP TEMPLATE - CONTINUED Note: For 299/299F top strike use minimum backsets shown below. Double doors: 1-3/8” min. backset, 2-3/16” min. stile Single door: 1-7/8” min. backset, 2-11/16” min. stile...
- Page 11 BOTTOM TEMPLATE...
- Page 12 BOTTOM TEMPLATE - CONTINUED...
-
Page 13: Templates
7527 Device Template C L of device 3-1/8” Cut-out device side only 5/8” deep for wood door 7/8” of device 7/8” 1/4” Radius 3-1/8” 7/8” 19/32” Holes - 2 places 5/16” Drill inside 13/32” drill outside (sex bolts) 1/2” drill outside (trim) 1/4”... - Page 14 7527 Device Template Device 3-1/8” Cut-out device side only 5/8” deep for wood door 7/8” of device 7/8” 1/4” Radius 3-1/8” 7/8” 19/32” Holes - 2 places 5/16” Drill inside 13/32” drill outside (sex bolts) 1/2” drill outside (trim) 13/32” Drill thru (sex bolts) 1/2”...
- Page 15 This page intentionally left blank...
- Page 16 This page intentionally left blank...
