- Page 1 Koolbreeze Climateasy 12R2 Portable Air Conditioner User Manual and Operator Guide (EN) For Model: P12HCR2 (2019 Model Year) Please read this manual carefully before using the product for the first time Please retain all packaging until end of warranty period...
-
Page 2: Table Of Contents
Comment 26/10/2018 Initial version for new 12R2 model Please send any corrections or suggested amendments to sales@koolbreeze.co.uk. FR, DE, ES, IT versions of the manual are available to download from www.koolbreeze.co.uk FR, DE, ES, IT versiones del manual están disponibles en www.koolbreeze.co.uk... -
Page 3: Usage And Safety Considerations
Safety and Usage Considerations for Units Containing R290 Refrigerant Koolbreeze Climateasy xxR2 models contain R290 refrigerant. R290 is a natural refrigerant that has a low environmental footprint with regards to any impact on the ozone layer as well as having a low potential to cause global warming (GWP). - Page 4 12. Maintenance of the unit and the internal refrigeration circuit should only be undertaken by individuals who have the appropriate certification issued by an accredited organization. 13. Repairs to the unit should only be undertaken by the manufacturer or an approved service agent. Where repair work is required to the refrigeration circuit this should only be undertaken by individuals with the appropriate certification/qualifications issued by an accredited organization.
- Page 5 17. Recycling This marking indicates that this product should not be disposed of in normal household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly at the end of its useful life. To dispose of your unit, please use the local and collection and disposal services provided by the relevant local authorities/agency or contact the retailer where the product was purchased for details of any collection and disposal services they provide.
-
Page 6: Getting To Know Your New Air Conditioner

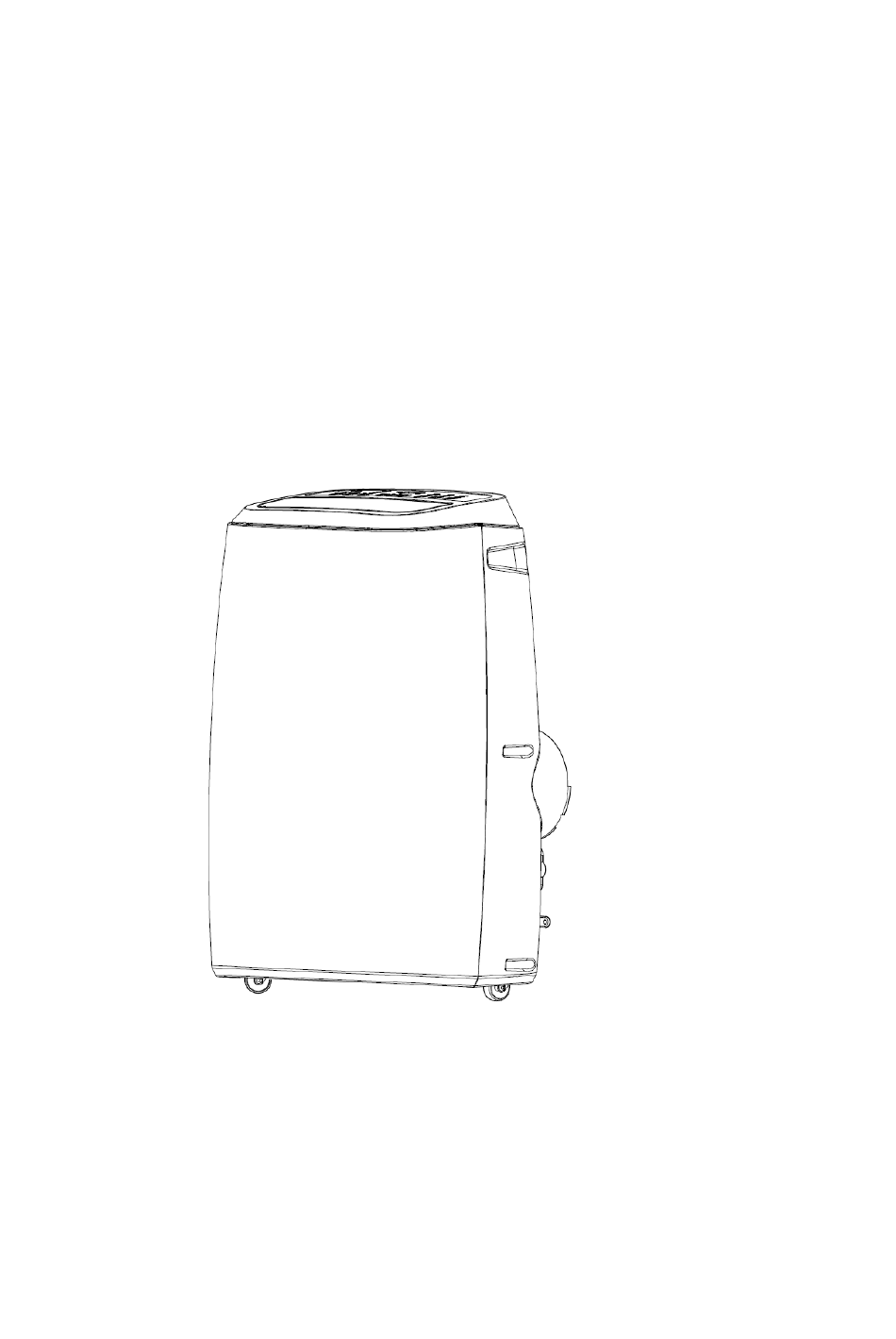

Getting to Know Your New Air Conditioner Continuous drain outlet End of season drain outlet Fig 1 Fig.2... -
Page 7: Operator Panel
Operator Panel Fig.3 Operator Panel Buttons POWER BUTTON Switches unit ON/OFF MODE BUTTON Selects Operating Mode E.g. Heating/Cooling/Fan etc. TIMER BUTTON Enables Timer Mode SPEED BUTTON Selects Fan Speed UP BUTTON Increase Temperature DOWN BUTTON Decrease Temperature SLEEP BUTTON Night operation selector SWING BUTTON Automatic air flow direction ON/OFF Indicators... -
Page 8: Remote Control
Remote Control Fig.4 POWER On/Off switch MODE MODE selector TIMER Hourly programming SPEED Fan speed selector TEMP+ Increase Temperature TEMP- Decrease Temperature SLEEP Night operation selector SWING Auto air flow selector Remote Control Batteries The supplied remote control (Fig 4) requires 2 x AAA (LR03) batteries which are not supplied with the unit. -
Page 9: Preparing The Unit For Use
Andorid or iOS App. Installation, configuration and use of the P12R2 Wi-Fi feature is documented in a separate manual which is available for download from www.koolbreeze.co.uk Preparing the Unit for Use 1) Locate a suitable power socket or outlet. - Page 10 b) Attach the machine end connector to the outlet at the back of the air conditioner (Fig.5b). c) The end of the exhaust hose should be vented through a window or through a hole of the correct diameter in a wall if not using the supplied window kit. 4) If using the supplied window kit Fig.5c and Fig 5d place the window kit slide plate either horizontally or vertically in the window aperture, attach exhaust hose window end connector to the window kit slide plate and adjust the window position.
-
Page 11: Operating The Unit
Fig.6a Fig 6b Operating the Unit The unit has the following operational temperature range for cooling and heating: Maximum cooling Minimum cooling DB/WB(℃) 35/24 18/12 Maximum heating Minimum heating DB/WB(℃) 27/--- 7/---... - Page 12 1. Cooling and dehumidifying operation considerations: a) When switching between cooling and dehumidifying modes, leave at least 3 minutes between each ON/OFF cycle. b) Confirm the power supply meets the unit requirements and is for AC use. Required power supply is AC220--240V，50Hz c) Do not use a multi-way adapter plug to share the socket being used for the unit with other appliances.
- Page 13 7. Timer operation Timer ON setting: a) When the air conditioner is OFF, press the “Timer” button and select a desired ON time through the temperature and time setting buttons. b) “Pre-set ON Time” is displayed on the operation panel. c) ON time can be set to any time in the range 0-24 hours.
-
Page 14: Maintenance And Cleaning
Continuous Drainage It is possible to eliminate the requirement to empty the internal water tank by using the optional continuous drain facility. To use this facility, remove the bung from the black drain outlet located half way down the rear of the unit and attach a suitably sized pipe/hose to direct any water into a container or waste water drain. -
Page 15: Troubleshooting
Troubleshooting Basic Fault Finding Unit stops running: Mains supply is disconnected or has failed Target temperature has been reached. Timer has been set. Water tank is full (WATER FULL indicator will illuminate) In cooling mode, no cool air is produced: Room temperature is lower than set temperature The unit is defrosting (this will take a few minutes and afterwards it will resume operation) Filter is blocked... - Page 16 2. Not cool enough The doors or windows are not Make sure all the windows and closed. doors are closed. There are other heat sources Remove the heat sources if inside the room. possible Exhaust air hose is not Connect or clean the exhaust connected or blocked.
-
Page 17: Warranty
If you have any problems with this product, please in the first instance contact the retailer/reseller from whom you originally purchased it. Please retain all packaging until end of the warranty period. Cottage Stores LLP Koolbreeze Division 7 Harris Drive Rugby CV22 6DX... -
Page 18: Appendix A. Product Technical Specifications
Appendix A. Product Technical Specifications Model Climateasy 12R2 Dimensions (mm) W440 x H715x D335 Net Weight 26kg Voltage 220-240V~ 50Hz Power Consumption (Cooling) 1345W Power Consumption (Heating) 1391W Operating Current (Cooling) 6.0A Operating Current (Heating) 6.3A Heating Capacity 12000 Btu/3500W...
