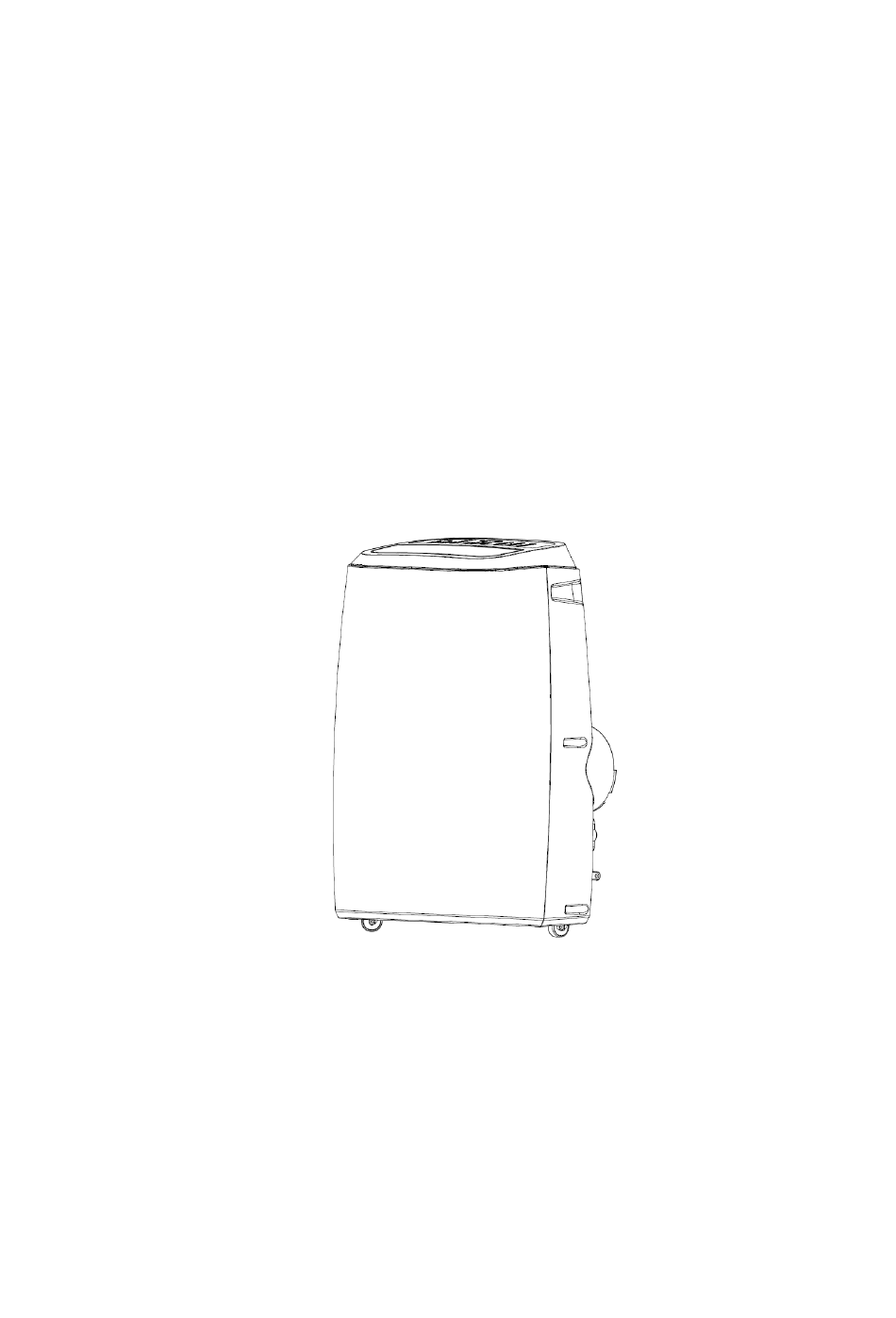

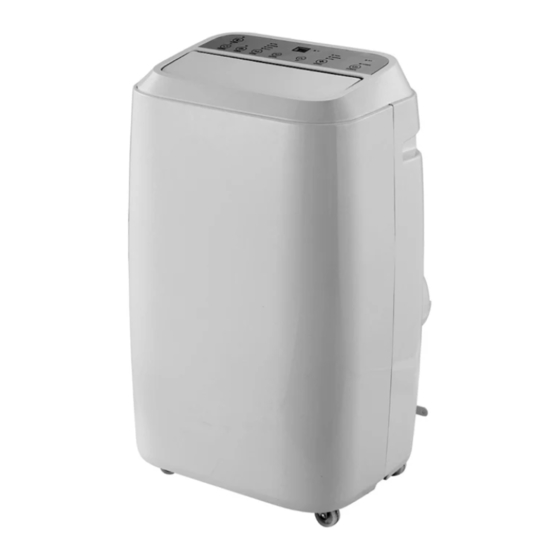

- Page 1 Koolbreeze Climateasy 12R2 Portable Air Conditioner Wi-Fi User Guide (EN) For Model: P12HCR2 (2019 Model Year) Please read this manual carefully before attempting to connect the product to your Wi-Fi network for the first time...
-
Page 2: Amendment History
Comment 10/04/2019 Initial version for new Climateasy12R2 model Wi-Fi support FR, DE, ES, IT versions of the manual are available to download from www.koolbreeze.co.uk FR, DE, ES, IT versiones del manual están disponibles en www.koolbreeze.co.uk FR, DE, ES, IT www.koolbreeze.co.uk des versions du manuel sont disponibles à... -
Page 3: Table Of Contents
SETTING UP THE APP TO WORK WITH THE CLIMATEASY P12R2 ..............10 SETTING UP THE CLIMATEASY 12R2 USING QUICK CONNECTION METHOD ..........12 SETTING UP THE CLIMATEASY 12R2 USING ACCESS POINT (AP) CONNECTION METHOD ......14 CONTROLLING THE CLIMATEASY 12R2 WITH THE SMART LIFE APP ............17 TROUBLESHOOTING.......................... -
Page 4: Operator Panel
OPERATOR PANEL Operator Panel Buttons POWER BUTTON Switches unit ON/OFF MODE BUTTON Selects Operating Mode E.g. Heating/Cooling/Fan etc. TIMER BUTTON Enables Timer Mode SPEED BUTTON Selects Fan Speed UP BUTTON Increases Temperature DOWN BUTTON Decreases Temperature SLEEP BUTTON Night operation selector SWING BUTTON Automatic air flow direction ON/OFF... -
Page 5: Introduction
Wi-Fi enabled and can also be controlled using a tablet or smartphone with an Andorid or iOS App. This user guide explains how to configure and use the integrated Wi-Fi support on the Climateasy 12R2 and associated management App. The guide assumes that the reader has already reviewed the basic Climateasy 12R2 commissioning and operating instructions described in the Climateasy 12R2 Portable Air Conditioner User Manual and Operator Guide. - Page 6 If this is the case ensure that the router/access point is configured to use different network names or SSIDs for the 2.4Ghz and 5GHz networks. The Climateasy 12R2 model only supports connection to 2.4GHz Wi-Fi networks. Please consult the user documentation for your router/access point or contact your ISP for more information regarding how to confirm whether separate SSIDs are in use for 2.4Ghz and 5Ghz networks.
-
Page 7: Obtaining The Management App For Your Device From The App Store
OBTAINING THE MANAGEMENT APP FOR YOUR DEVICE FROM THE APP STORE Download and install the TUYA SMART or SMART LIFE App for your device from either the Apple App Store or Google Play Store. Both Apps are provided by Tuya Inc a global supplier of Internet of Things (IoT) and smart device technologies. -
Page 8: Using The App With The Climateasy P12R2
USING THE APP WITH THE CLIMATEASY P12R2 The following examples use the Android Smart Life version of the App. The functionality and workflow of the iOS version (Tuya Smart App) is similar to the Android version however there may be some slight differences in the format of the displays between the versions. - Page 9 You will receive a six-digit authorisation code by text or email depending on the delivery method selected in the previous step. The code should be entered into the App when requested. When prompted create a password for App login which conforms to the password rules described on the screen.
-
Page 10: Setting Up The App To Work With The Climateasy P12R2
Climateasy 12R2 to transfer the required Wi-Fi network configuration information and is slightly more complex to use. The Wi-Fi support on the Climateasy 12R2 unit needs to be set to the correct mode to support the chosen configuration method that will be used in the App. - Page 11 On continuously/not flashing or blinking Wi-Fi connection established/configured The connection mode being used by the Climateasy 12R2 can be reset or changed between the two options by holding down the Sleep Button (2) on the operator panel for 5 seconds.
-
Page 12: Setting Up The Climateasy 12R2 Using Quick Connection Method
SETTING UP THE CLIMATEASY 12R2 USING QUICK CONNECTION METHOD Before attempting to define the Climateasy 12R2 in the App, confirm that the unit is in standby mode and the Wi-Fi indicator is flashing/blinking twice per second. If this is not the case switch the unit off using Power... - Page 13 App. If the second attempt to connect to the Climateasy 12R2 fails, refer to the troubleshooting section later in this guide. If the Climateasy 12R2 is successfully added to the App, the App will then allow the unit to be associated with one of the rooms defined for the active ‘family’...
-
Page 14: Setting Up The Climateasy 12R2 Using Access Point (Ap) Connection Method
SETTING UP THE CLIMATEASY 12R2 USING ACCESS POINT (AP) CONNECTION METHOD Before attempting to define the Climateasy 12R2 in the App, confirm that the unit is in standby mode and the Wi-Fi indicator is flashing/blinking once every three seconds. If... - Page 15 The App will open the ‘Add Device’ screen and ask you to confirm that the Wi-Fi indicator on the Climateasy 12R2 is flashing rapidly (two times per second). At this point DO NOT touch/press ‘Confirm’ but select Access Point (AP) Mode by touching/pressing ‘AP Mode’...
- Page 16 Smart Life The App will then transfer the Wi-Fi settings to the Climateasy 12R2. This step may take a few minutes to complete. If this step is unsuccessful retry the step when prompted by the App.
-
Page 17: Controlling The Climateasy 12R2 With The Smart Life App
CONTROLLING THE CLIMATEASY 12R2 WITH THE SMART LIFE APP Basic Device Control Functions The Smart Life App provides a simple way of manging the main features and functions of Climateasy 12R2 unit. Unit Temperature Setting Operating Mode Heat/Cool/Fan/Dehumidifier Timer Function... -
Page 18: Troubleshooting
Confirm that the smartphone/device running the App is connected to the same Wi-Fi network that the Climateasy 12R2 is being connected to (same SSID). Check that the Wi-Fi network being used for the Climateasy 12R2 is a 2.4GHz network and not a 5GHz network. -
Page 19: Copyright Statement
COPYRIGHT STATEMENT Copyright © Cottage Stores LLP 2019. All rights reserved ‘Koolbreeze’ and ‘Climateasy’ are registered trademarks of Cottage Stores LLP. All other product names, trademarks, registered trademarks and logos are the property of their respective owners. Distribution of substantively changed versions of this document is prohibited without explicit permission of the copyright holder.
