Summary of Contents for Koolbreeze UNIQUE P-12000HCU
-
Page 1: Instruction For Use

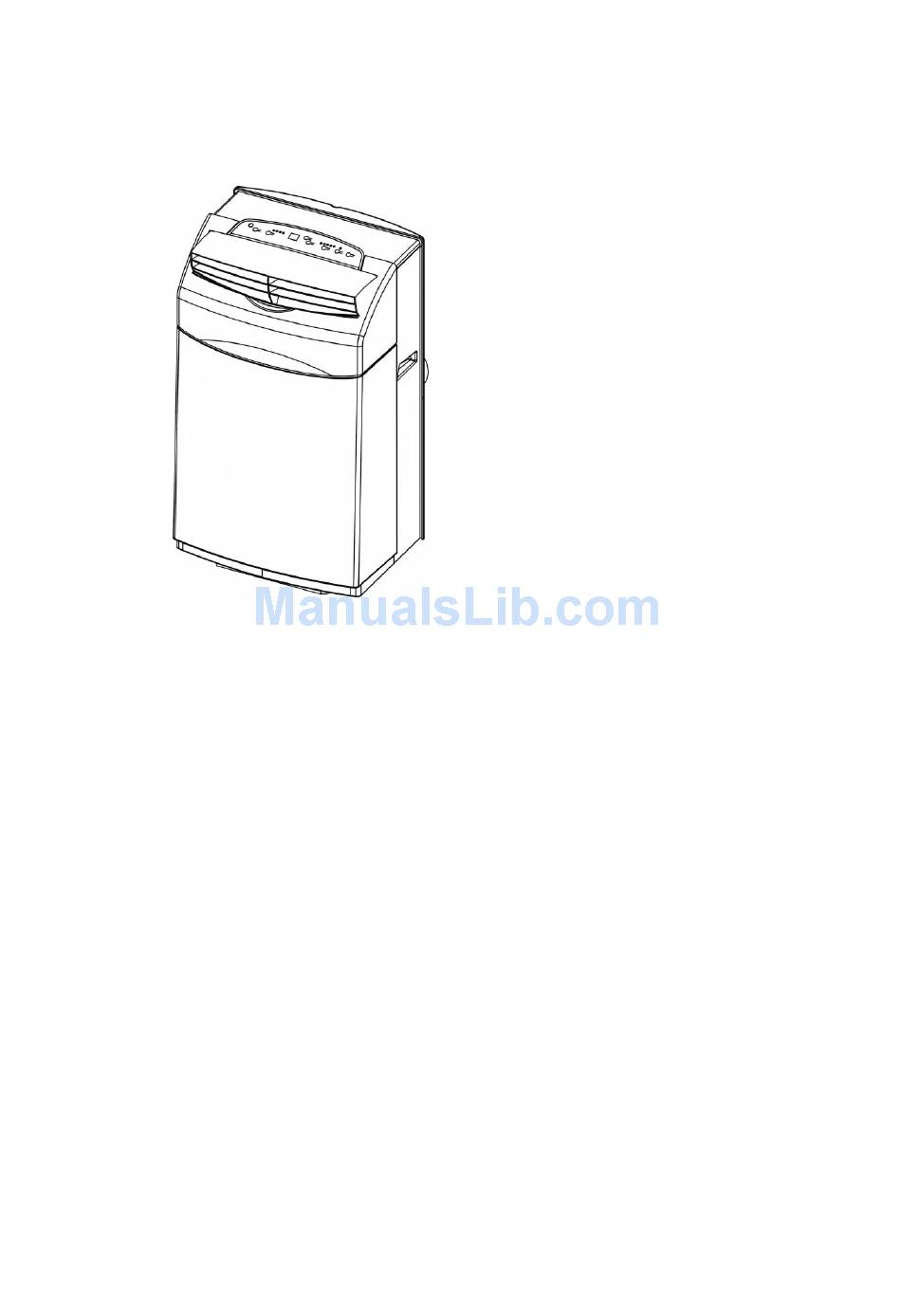

Koolbreeze UNIQUE : P-12000HCU INSTRUCTION FOR USE PORTABLE AIR CONDITIONER VERY IMPORTANT Do not install and use your mobile air conditioner unit before reading carefully this instruction guide . Please retain this manual brochure for product warranty and future reference... -
Page 2: Unpacking Instructions
CONGRATULATIONS ON YOUR SELECTION OF A QUALITY PORTABLE AIR CONDITIONER Your Air Conditioner has been designed and manufactured to the highest standards of modern engineering. Its many features not only include remote control operation that lets you control all functions with ease and convenience, but has the following features: ... - Page 3 CAUTION " DO NOT BLOCK VENTILATION "! Please keep everything away from the inlet and outlet ventilation. Operate this unit on a horizontal surface to avoid water leakage. Do not operate this unit in an explosive or corrosive atmosphere. Operate this unit in an ambient of 32 degree centigrade or less. The unit should not be operated in heating function with an indoor ambient temperature above 23 .
-
Page 4: Name Of The Parts
NAME OF THE PARTS 1. Control panel 2. Remote receiver. 3. Adjustable air vent 4. Joint tube 5. Exhaust tube 6. Cool inlet 7. Cool Air filter 8. Drain pipe 9. Hot inlet 10. Hot Air filter... -
Page 5: Control Panel & Description Of Function
CONTROL PANEL & DESCRIPTION OF FUNCTION 1.POWER KEY Press to turn unit "ON" or "OFF". 2.FUNCTION Press this key to select either refrigerated air or dehumidification or heating cycle 3.TEMPERATURE KEY Use arrow keys to adjust temperature. 4.TEMPERATURE REGULATION KEY (UP) Raises the preset temperature by 1 each time it is pressed to a maximum of 30 5.TEMPERATURE REGULATION KEY (DOWN) - Page 6 9. PROGRAMMABLE TIMER Programmable timer ON/OFF key. TIMER-ON :The timer-on is used to turn on the unit automatically after a set number of hours 1.Press the "TIMER" key at stand-by status to set the time desired. 2. Once the setting hour has come to an end, the unit will turn on automatically. 3.
-
Page 7: Remote Control Function
REMOTE CONTROL FUNCTION 1. POWER Stop/Start switch Function “MODE” selector 2. FUNC Hourly programming 3. TIMER Automatic fan speed 4. AUTO High fan speed 5. HI Low fan speed 6. LOW Night operation selector 7. SLEEP 8. TEMP. Temperature selector... -
Page 8: Power Supply
NOTICE This unit can evaporate condensation and let it flow out through the exhaust hose automatically. When the unit is running, it does not need a drain hose. Please make sure that the rubber cap is locked on the drain hose outlet when the unit is running POWER SUPPLY ... -
Page 9: Air Filter
MAINTAINANCE Please disconnect the power cord before cleaning . AIR FILTER The air filter located on the left hand side of the unit can be removed, simply by pulling the frame in an upward motion. CONDENSOR/EVAPORATOR Use a brush attachment with a vacuum cleaner. CABINET ●wipe with a damp cloth polish with a soft cloth. -
Page 10: Window Kit Installation
PLACE FOR USE Because the machine exhausts hot air, please don’t operate in a narrow place. Don’t place the machine in strong sunlight otherwise the colour of the machine could fade. Don’t operate the machine in an excessively humid place ( e.g. dry cleaners) WINDOW KIT INSTALLATION 1.
