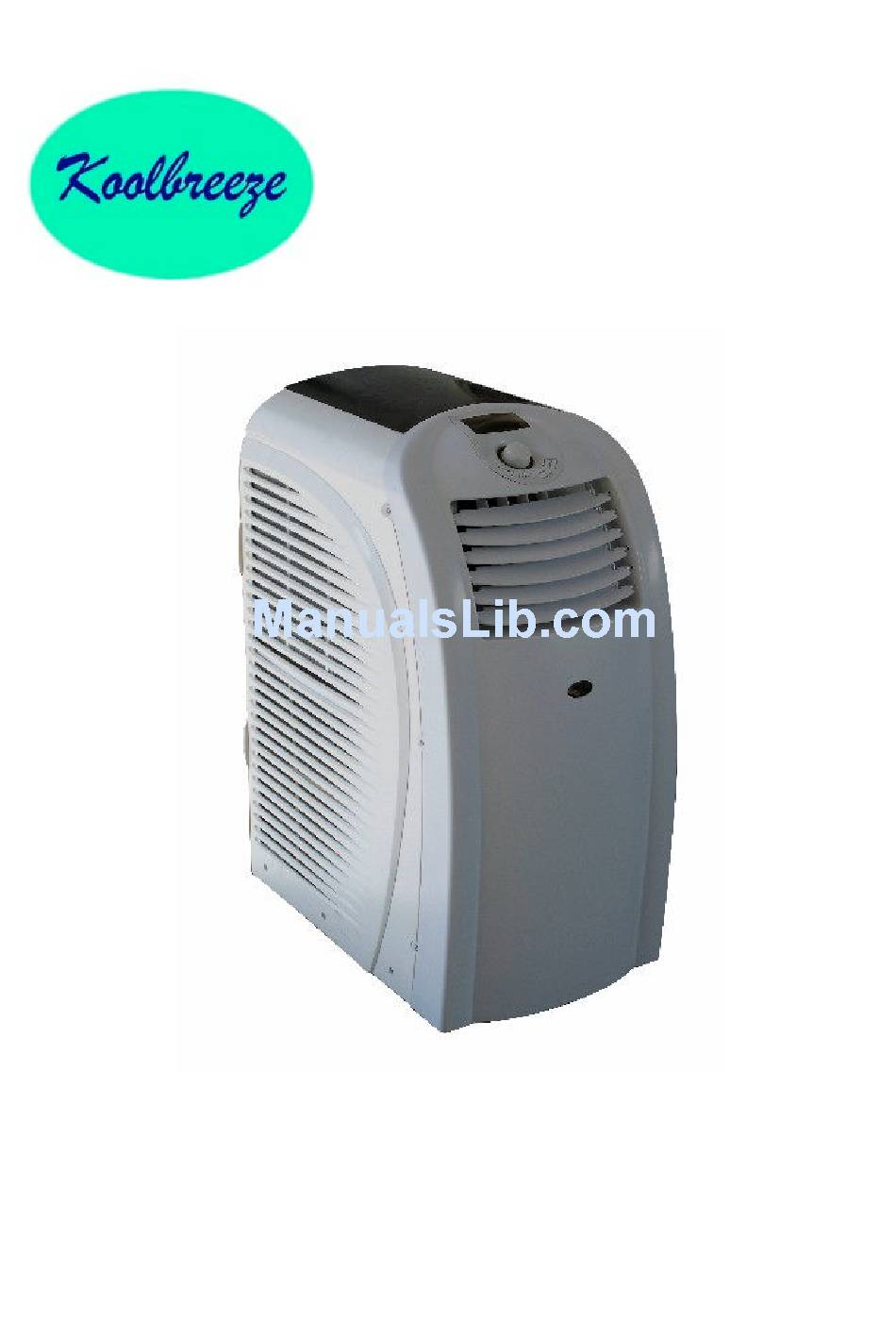

- Page 1 Portable Air Conditioner 18000 BTU Operating Instructions Model No. Kompact 18 Please read owner’s manual carefully before operating unit.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFEGUARDS………………………………………………………………………………… PRODUCT DIAGRAM………………………………………………………………………………………… INSTALLATION……………………………………………………………………………………………… 5 CONTROL PANEL AND MULTI-COLOR DISPLAY…………………………………………………………… 7 CONTROL PANEL FUNCTIONS……………………………………………………………………………… OPERATION USING THE CONTROL PANEL………………………………………………………………… 9 COOLING………………………………………………………………………………………………… 9 DEHUMIDIFYING………………………………………………………………………………………… 9 FANNING………………………………………………………………………………………………… 9 AUTO MODE……………………………………………………………………………………………… 9 SLEEP MODE…………………………………………………………………………………………… 10 REMOTE CONTROL & OPERATION…………………………………………………………………………… 11 MAINTENANCE………………………………………………………………………………………………... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Before installing and using your portable air conditioner and heater, it is important that you read this owner’s manual carefully. Store this manual in a safe place for future reference. This instruction manual is used for guidance and does not form part of a contract. It reserves the right to make technical changes without prior notice. -
Page 4: Product Diagram
PRODUCT DIAGRAM FRONT A. Control panel B. Vertical air louvers C. Air outlet D. casters E. Cable (power cord and plug) BACK Hot air outlet grill Lower air inlet grill Water Release Port ACCESSORIES Flexible exhaust hose with 2 adapters •... -
Page 5: Installation
INSTALLATION SELECTING THE LOCATION Place the unit in a flat location where the air outlets are not obstructed. Place the unit at least 20” (50cm) away from a wall or other obstacle. MOUNTING THE EXHAUST HOSE Slide the square end of the exhaust duct over the hot air outlet on the back of the unit. -
Page 6: Window Kit Installation
WINDOW KIT INSTALLATION The window kit is designed to fit into most standard vertical and horizontal windows, as well as some sliding glass doors. However, it may be necessary to modify some aspects of the installation process for certain window types. 1. -
Page 7: Control Panel And Multi-Color Display
CONTROL PANEL AND MULTI-COLOR DISPLAY CONTROL PANEL CONTROL PANEL AND VFD DISPLAY CONTROL PANEL POWER Button Press this button to turn the unit on or off. Press this button to select among the modes of MODE Button auto,cooling,dehumidifying,fanning or heating. KONB Button when the unit is not working. -
Page 8: Control Panel Functions
MULTI-COLOR DISPLAY Auto Mode Cool Mode Dehumidify Mode Fan Mode Heat Mode (if only cooling not work) Fan Speed (Low, High, Medium) Compressor is on Swing Mode Sleep Mode Temperature and Timer Time On Time Off Water full CONTROL PANEL FUNCTIONS ON/OFF BUTTON Starts or stops the unit. -
Page 9: Operation Using The Control Panel
OPERATION USING THE CONTROL PANEL COOLING 1. Properly install the exhaust hoses. 2. Plug the power cord into a grounded outlet. 3. Turn on the unit by pressing the On/Off button on the control panel. 4. Press the Mode button until “ ”... -
Page 10: Auto Mode
AUTO MODE 1. Properly install the exhaust hoses. 2. Plug the power cord into a grounded outlet. 3. Turn on the unit by pressing the On/Off button on the control panel. 4. Press the Mode button until the “ ” icon appears on the multi-color display. 5. -
Page 11: Remote Control & Operation
REMOTE CONTROL & OPERATION The remote control provided with the unit can be used to operate the portable air conditioner. The remote control uses 2 AAA batteries (provided). Install the batteries before using the remote control. The remote control can be used to do all the operations that can be programmed from the control panel. The LCD display on the remote control can show either Celsius or Fahrenheit. - Page 12 WATER DRAINAGE When used in high humidity areas (over 60% humidity) , continuous operation may be interrupted due to excessive dehumidification producing excessive water, This unit has a special built in facility to avoid the unit stopping operation. The unique design of this unit allows you to connect a water drain pipe to the upper water release port for extra convenience and ease of use.
-
Page 13: Maintenance
MAINTENANCE Always turn off and unplug the unit before cleaning to avoid electrical shock. CLEANING THE HOUSING Wipe the surface of the unit with a soft, damp cloth. Do not use abrasive chemicals or detergents to clean the surface of the unit, as the unit may become scratched or damaged. -
Page 14: Troubleshooting
TROUBLESHOOTING Before seeking repair or service, please check the following: PROBLEM POSSIBLE CAUSE REMEDY Is the unit plugged in? Securely plug the power cord into the wall outlet. Is the main power supply on? Reestablish the main power supply. Unit does not operate or only runs in fan mode. -
Page 15: Disclaimer
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE PRESENTATION OF THE MANUFACTURER. COTTAGE STORES LLP HAS NOT CONDUCTED INDEPENDENT TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN. Koolbreeze is the registered trade name of Cottage Stores LLP...
