KA01339D/06/EN/02.18
71399867
2018-08-01
Products
Brief Operating Instructions
Proline 300
EtherNet/IP
Transmitter with Coriolis sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Transmitter Brief Operating Instructions
Contain information about the transmitter.
Sensor Brief Operating Instructions →  3
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Proline 300

Summary of Contents for Endress+Hauser Proline 300

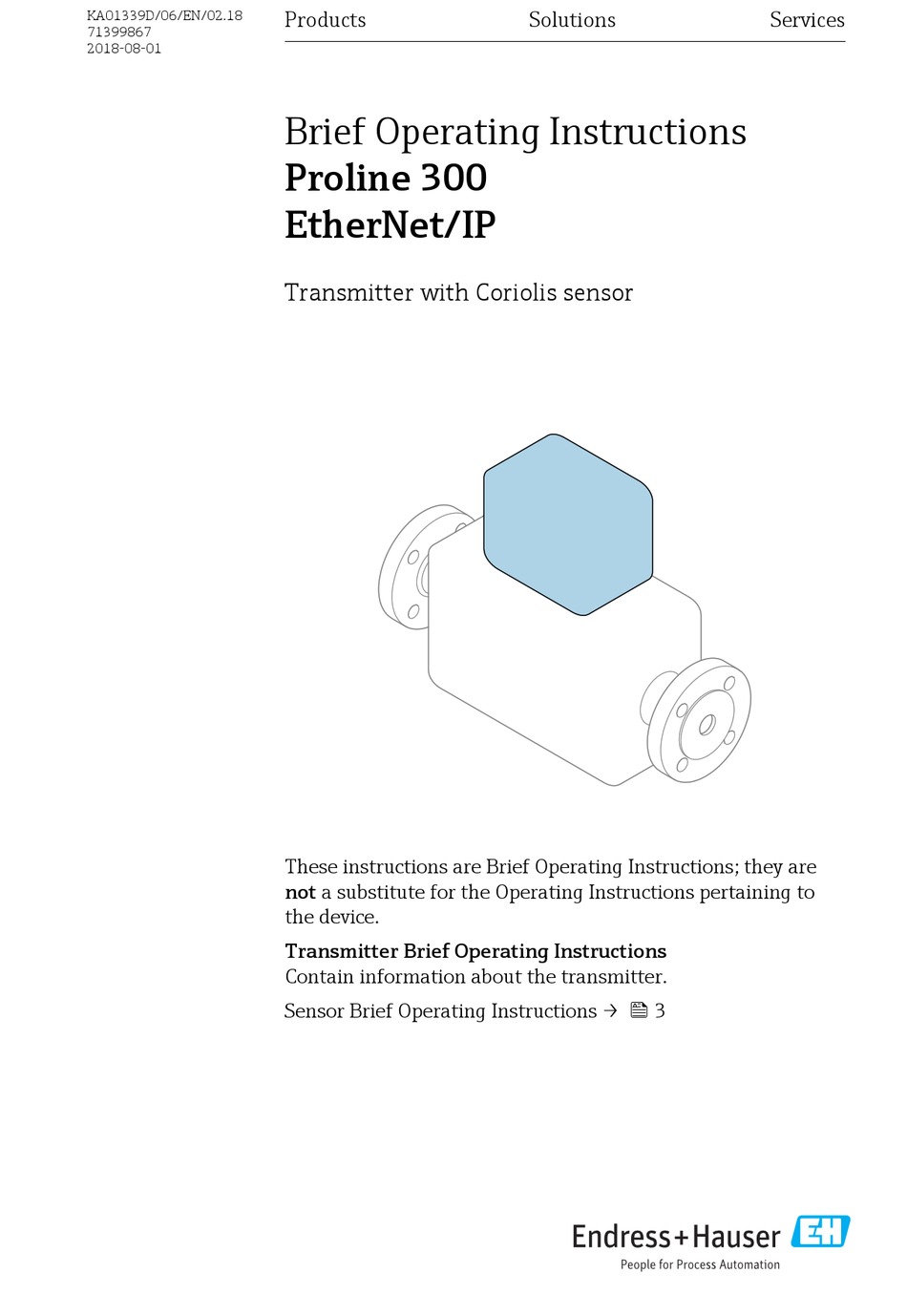

  • Page 1 Products Solutions Services KA01339D/06/EN/02.18 71399867 2018-08-01 Brief Operating Instructions Proline 300 EtherNet/IP Transmitter with Coriolis sensor These instructions are Brief Operating Instructions; they are not a substitute for the Operating Instructions pertaining to the device. Transmitter Brief Operating Instructions Contain information about the transmitter.
  • Page 2 Proline 300 EtherNet/IP Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
  • Page 3 These Brief Operating Instructions are the Transmitter Brief Operating Instructions. The "Sensor Brief Operating Instructions" are available via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App Detailed information about the device can be found in the Operating Instructions and the other documentation: • Internet: www.endress.com/deviceviewer...

  • Page 4: Table Of Contents

    Table of contents Proline 300 EtherNet/IP Table of contents Document information ............5 Symbols used .

  • Page 5: Document Information

    Proline 300 EtherNet/IP Document information Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury.
  • Page 6 Document information Proline 300 EtherNet/IP Symbol Meaning Protective Earth (PE) A terminal which must be connected to ground prior to establishing any other connections. The ground terminals are situated inside and outside the device: • Inner ground terminal: Connects the protectiv earth to the mains supply.

  • Page 7: Basic Safety Instructions

    Proline 300 EtherNet/IP Basic safety instructions Basic safety instructions Requirements for the personnel The personnel must fulfill the following requirements for its tasks: ‣ Trained, qualified specialists must have a relevant qualification for this specific function and task. ‣ Are authorized by the plant owner/operator.

  • Page 8: Workplace Safety

    Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties.

  • Page 9: Product Safety

    It meets general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security Our warranty is valid only if the device is installed and used as described in the Operating Instructions.

  • Page 10: Product Description

    Product description Proline 300 EtherNet/IP Product description The device consists of a Proline 300 transmitter and a Proline Promass or Cubemass Coriolis sensor. The device is available as a compact version: The transmitter and sensor form a mechanical unit. N ic...

  • Page 11: Installation

    Proline 300 EtherNet/IP Installation Installation For detailed information about mounting the sensor, see the Sensor Brief Operating Instructions →  3 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned.

  • Page 12: Turning The Display Module

    Installation Proline 300 EtherNet/IP Turning the display module The display module can be turned to optimize display readability and operability. – – – 3 mm A0030035 Depending on the device version: Loosen the securing clamp of the connection compartment cover.

  • Page 13: Cover Locking

    Proline 300 EtherNet/IP Installation Cover locking NOTICE Order code for "Housing", option L "Cast, stainless": The covers of the transmitter housing are provided with a borehole to lock the cover. The cover can be locked using screws and a chain or cable provided by the customer.

  • Page 14: Electrical Connection

    Electrical connection Proline 300 EtherNet/IP Electrical connection NOTICE The measuring device does not have an internal circuit breaker. ‣ For this reason, assign the measuring device a switch or power-circuit breaker so that the power supply line can be easily disconnected from the mains.
  • Page 15 Proline 300 EtherNet/IP Electrical connection Signal cable EtherNet/IP The standard ANSI/TIA/EIA-568-B.2 Annex specifies CAT 5 as the minimum category for a cable used for EtherNet/IP. CAT 5e and CAT 6 are recommended. For more information on planning and installing EtherNet/IP networks, please refer to the "Media Planning and Installation Manual.
  • Page 16 Electrical connection Proline 300 EtherNet/IP Standard cable - customer-specific cable No cable is supplied, and it must be provided by the customer (up to max. 300 m (1 000 ft)) for the following order option: Order code for DKX001: Order code 040 for "Cable", option 1 "None, provided by customer, max 300 m"...

  • Page 17: Connecting The Measuring Device

    Proline 300 EtherNet/IP Electrical connection 5.1.3 Terminal assignment Transmitter: supply voltage, input/outputs Supply voltage Input/output 1 Input/output 2 Input/output 3 1 (+) 2 (–) EtherNet/IP 24 (+) 25 (–) 22 (+) 23 (–) (RJ45 connector) Device-specific terminal assignment: adhesive label in terminal cover.
  • Page 18 Electrical connection Proline 300 EtherNet/IP 5.2.1 Connecting the transmitter A0026781 Terminal connection for supply voltage Terminal connection for signal transmission, input/output Terminal connection for signal transmission, input/output or terminal connection for network connection via service interface (CDI-RJ45); optional: connection for external WLAN antenna or...
  • Page 19 Proline 300 EtherNet/IP Electrical connection N ic N ic t e r t e r e r g ö f f e r g ö f f iz e iz e t e n t e n r ir r ir...
  • Page 20 Electrical connection Proline 300 EtherNet/IP 10. Plug in the RJ45 connector. 11. Firmly tighten the cable glands.  This concludes the EtherNet/IP connection process. Connecting the supply voltage and additional inputs/outputs 10 (0.4) mm (in) – A0033983 Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry.
  • Page 21 Proline 300 EtherNet/IP Electrical connection Fit the display module holder in the electronics compartment. Screw on the connection compartment cover. Secure the securing clamp of the connection compartment cover. Removing a cable 3 (0.12) A0029598  1 Engineering unit mm (in)
  • Page 22 Electrical connection Proline 300 EtherNet/IP 5.2.2 Integrating the transmitter into a network This section only presents the basic options for integrating the device into a network. Integrating via the service interface The device is integrated via the connection to the service interface (CDI-RJ45).
  • Page 23 Proline 300 EtherNet/IP Electrical connection Integrating into a ring topology The device is integrated via the terminal connection for signal transmission (output 1) and the connection to the service interface (CDI-RJ45). Note the following when connecting: • Recommended cable: CAT5e, CAT6 or CAT7, with shielded connector •...
  • Page 24 Electrical connection Proline 300 EtherNet/IP 5.2.3 Connecting the remote display and operating module DKX001 The remote display and operating module DKX001 is available as an optional extra . • The remote display and operating module DKX001 is only available for the following housing version: order code for "Housing": option A "Aluminum, coated"...

  • Page 25: Hardware Settings

    Proline 300 EtherNet/IP Electrical connection Hardware settings 5.3.1 Setting the device address The IP address of the measuring device can be configured for the network via DIP switches. Addressing data IP address and configuration options 1st octet 2nd octet 3rd octet 4th octet 192.

  • Page 26: Ensuring Potential Equalization

    Electrical connection Proline 300 EtherNet/IP 5.3.2 Activating the default IP address The DHCP function is enabled in the device at the factory, i.e. the device expects an IP address to be assigned by the network. This function can be disabled and the device can be set to the default IP address 192.168.1.212 by DIP switch.

  • Page 27: Post-Connection Check

    Proline 300 EtherNet/IP Electrical connection To ensure that moisture does not enter the cable entry: Route the cable so that it loops down before the cable entry ("water trap").  A0029278 Insert dummy plugs into unused cable entries. Post-connection check Are cables or the device undamaged (visual inspection)? ...

  • Page 28: Operation Options

    Operation options Proline 300 EtherNet/IP Operation options Overview of operation options A0034513 Local operation via display module Computer with Web browser (e.g. Internet Explorer) or with operating tool (e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM) Field Xpert SFX350 or SFX370...

  • Page 29: Structure And Function Of The Operating Menu

    Proline 300 EtherNet/IP Operation options Structure and function of the operating menu 6.2.1 Structure of the operating menu Operating menu for operators and maintenances Language Operation task-oriented Setup Diagnostics Operating menu for experts Expert function-oriented A0014058-EN  2 Schematic structure of the operating menu 6.2.2...

  • Page 30: Access To The Operating Menu Via The Local Display

    Operation options Proline 300 EtherNet/IP Access to the operating menu via the local display X X X X X X 19.184 mA 12.5 X X X X X X Language 20.50 Ã English Deutsch Español Français Xxxxxxx A B C D E F G H I J K M N O P Q R S T U V W +0.000 Xx...
  • Page 31 Proline 300 EtherNet/IP Operation options 6.3.1 Operational display Explanatory symbols for the measured value Status area • Depends on the device version, e.g.: The following symbols appear in the status area of the – : Volume flow operational display at the top right: –...
  • Page 32 Operation options Proline 300 EtherNet/IP Numeric editor Confirms selection. Moves the input position one position to the left. Exits the input without applying the changes. Inserts decimal separator at the input position. Inserts minus sign at the input position. Clears all entered characters.

  • Page 33: Access To The Operating Menu Via The Operating Tool

    Proline 300 EtherNet/IP System integration Keys and meaning Reduces the contrast (brighter setting). Plus/Enter key combination (press and hold down the keys simultaneously) Increases the contrast (darker setting). Minus/Plus/Enter key combination (press the keys simultaneously) For operational display:Enables or disables the keypad lock.

  • Page 34: Setting The Operating Language

    Commissioning Proline 300 EtherNet/IP Setting the operating language Factory setting: English or ordered local language X X X X X X X 20.50 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 Ã...

  • Page 35: Protecting Settings From Unauthorized Access

    Proline 300 EtherNet/IP Commissioning Example: Available submenus, wizards Meaning Partially filled pipe detection Configure partial and empty pipe detection Advanced setup Additional parameters for configuration: • Calculated process variables • Sensor adjustment • Totalizer • User interface • WLAN settings •...

  • Page 36: Diagnostic Information

    Diagnostic information Proline 300 EtherNet/IP Diagnostic information Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. The message about remedial measures can be called up from the diagnostic message, and contains important information on the fault.
