8. Remote control buttons

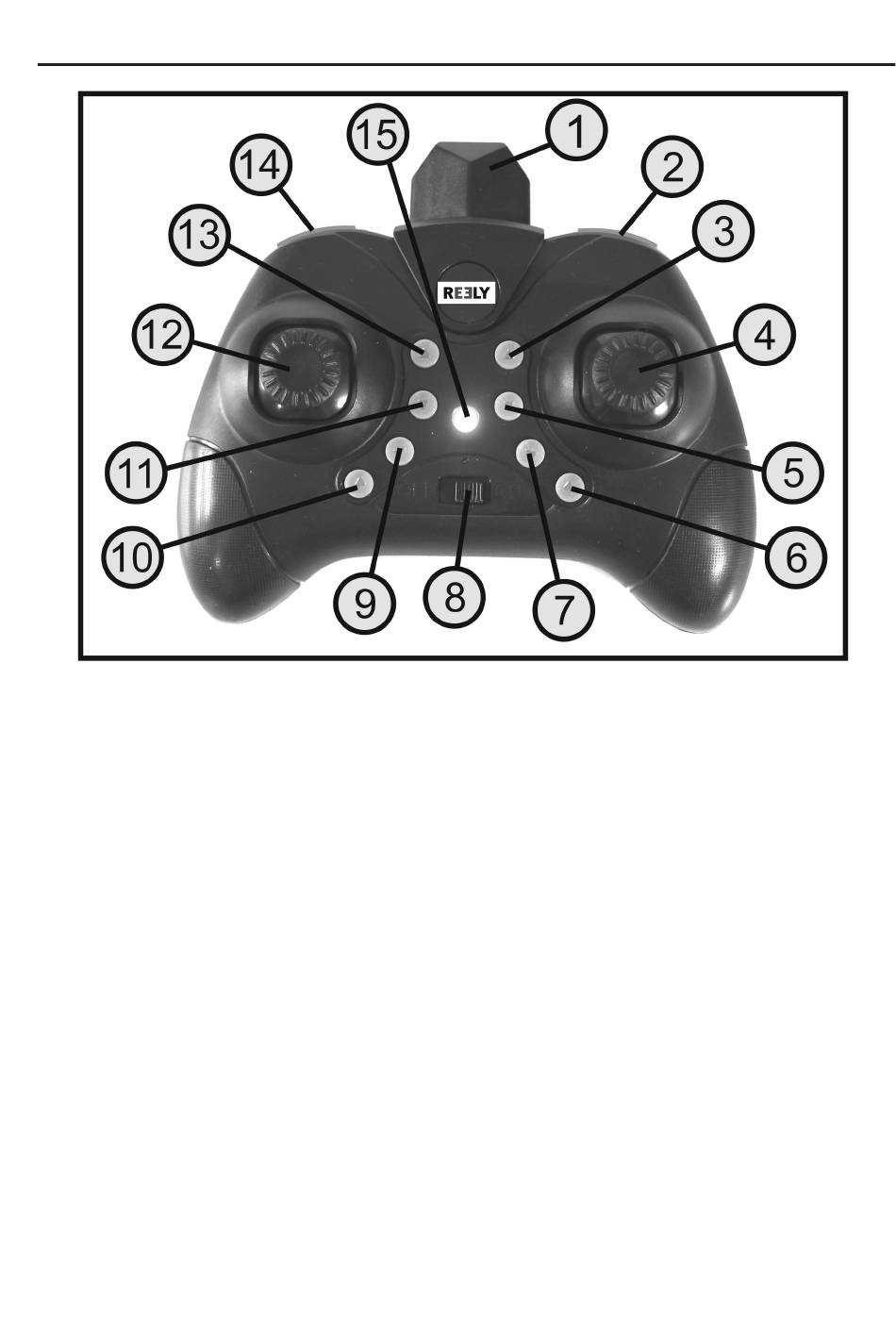

Figure 1
1 Socket for smartphone holder
2 Push button for the flip function
3 Trim button for the bob function (forwards)
4 Joystick for the bob and roll function
5 Trim button for the bob function (backwards)
6 Trim button for the roll function (right)
7 Trim button for the roll function (left)
8 On/off switch
9 Push button for the start and land function
10 Push button for the motor emergency-off function
11 Push button for the headless/return function
12 Joystick for the pitch and yaw function
13 Push button for photo and video recording (without function on this model)
14 Push button to switch between beginner, sport and expert mode
15 LED indicator
