Summary of Contents for Reely Cyclone245 FPV

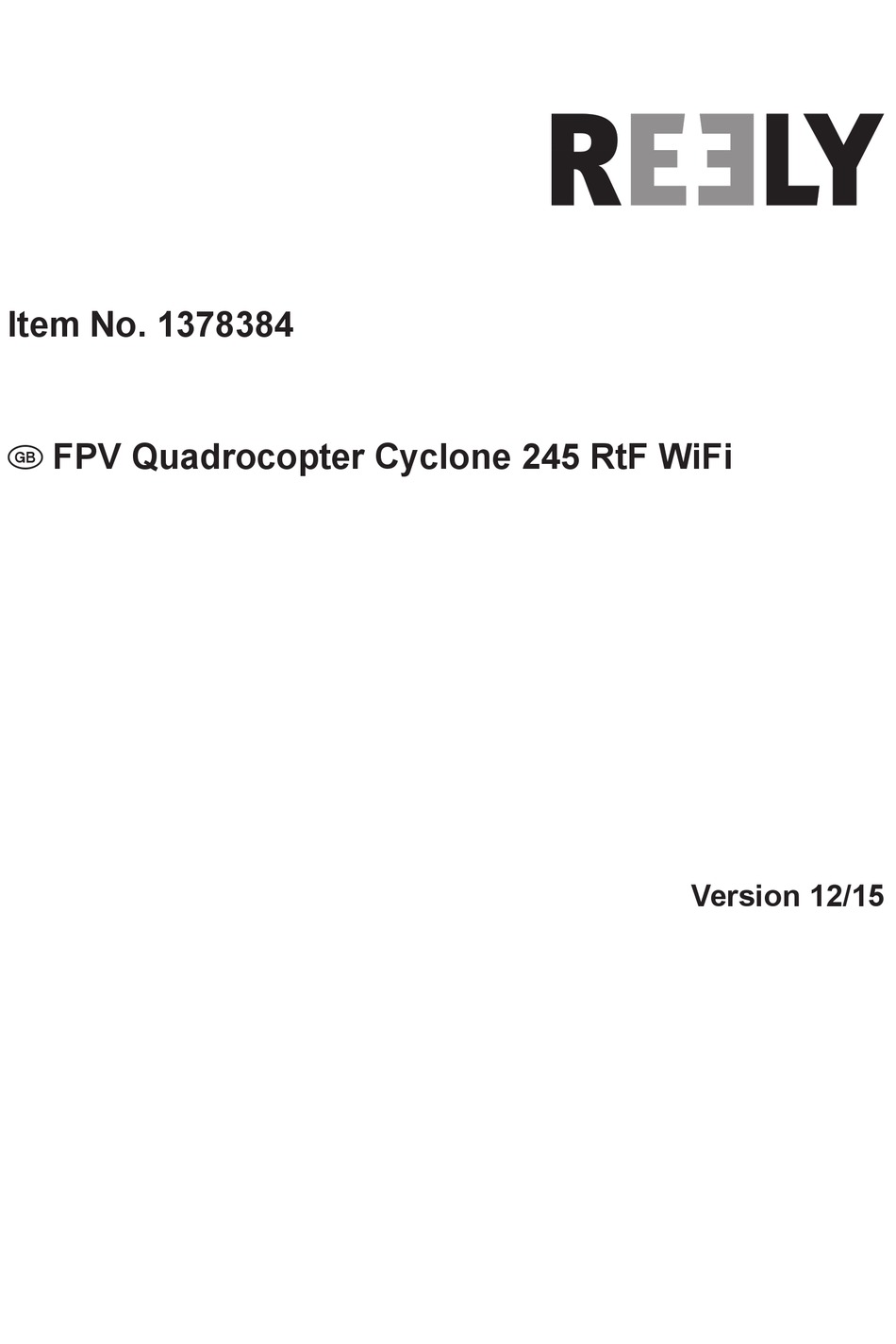

- Page 1 Item No. 1378384 t FPV Quadrocopter Cyclone 245 RtF WiFi Version 12/15...
- Page 3 CYCLONE 245 FPV INSTRUCTION MANUAL...
-
Page 4: Accessories List
Accessories list (sold separately) Part name: Upper Part name: Lower Part name: Circuit Part name: Landing housing housing board skid Part name: Lithium Part name: Carbon Part name: Bearing Part name: Rotor Battery fibre spindle blade Part name: CCW Part name: CW Part name: Green light Part name: Red light motor (black and... -
Page 5: Standard Accessories
Standard Accessories 3.7 V 730 mAh Blade x4 Charger x1 Li-Po battery x 1 Delivery content PART NAME QUANTITY V686 Instruction Manual V686 Aircraft Charger Li-Po battery Blade Remote control Optional Parts (sold separately) WATER GUN MONITOR FPV WIFI FPV CAMERA WIFI FPV BUBBLE GUN... -
Page 6: Warning
Warning ■ Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. -
Page 7: Table Of Contents
Introduction ■ Thank you for choosing this REELY product. This four-axis aircraft can fly outdoors, in order to make it easier and easier to control the aircraft, please carefully read this manual before operating this aircraft, and please keep this manual for any future adjustments and maintenance of reference you may wish to make. -
Page 8: Warning And The Guide Of Using Battery
Warning and the guide of using battery CAUTION WARNING WARNING WARNING WARNING WARNING Always use a charger Always charge Never leave charging Never charge Never Alter Batteries. Never touch or use compatible with Batteries away from Batteries unattended. damaged Batteries. hot Batteries. -
Page 9: Battery Charging
Battery Charging 1-cell 3.7V Variable Rate DC Li-Po Charger Instruction: Please only recharge LiPo flight battery with the supplied AC charger. Connect the battery to charger wire as per below illustration only. Charging line 3.7V 730mah Notice: Only use the charger provided Notice: Never attempt to power the charger from an AC outlet without the use of a proper AC to DC adapter/ power supply. - Page 10 BINDING OF RADIO TRANSMITTER AND RECEIVER Step1 Place the quadrocopter on a level surface. Li-Po 3.7V 730mAh Step2 Move the joystick for the pitch function to the lowest setting and switch the transmit- ter on with the on/off switch. Then push the joystick all the way forward and then slowly CAUTION backward again to switch the transmitter...
-
Page 11: Transmitter Control
Transmitter Control 1. Transmitter Control Power Switch Power LED Antenna Roll Video Elevator Control stick Throttle Control stick Elevator trim Throttle trim Rudder trim Aileron trim X-axis calibration key / Steering sensitivity indicator: 40% Steering sensitivity indicator: 100% Y-axis calibration key / Steering sensitivity indicator: 60% One key to return home / Light control Steering sensitivity... -
Page 12: First Flight Instruction
First Flight instruction If you are not familiar with the controls of your V636, take a few minutes to familiarize yourself with them before attempting your first flight. Throttle Throttle up Climb Throttle down Descend Rudder Rudder Rudder Nose Yaws Right Nose Yaws Left right Left... -
Page 13: One Key Return To Home
One Key return to home Press and hold light control switch button for 2 seconds. Transmitter will emit a single continuous sound to confirm, rear light will blink quickly at the same time. Quadrocopter begins to return home. Note: Please note one key return to home will not work if 1.) during start up, stand behind quadrocopter and that the quadrocopter is not aligned with the green propellers facing forward. -
Page 14: Schematic Circuit Board
1. Rotor blades damaged Main rotor spins but unable 1. Replace main blades to takeoff. 2. Charge or replace with a fully 2. Flight battery depleted charged battery. 1.Rotor deformation 1. Replace the rotor Strong vibration of quadrocopter. Replace the rotor Quadrocopter drifts sideways 1. - Page 15 Exploding View Black A forward Black B Green B Green A...
-
Page 16: Parts List
Parts Listing PART NAME QUANTITY Propeller guard Main rotor blade Upper housing Receiver board Bearing Battery cover Battery Electric motor LED light LED light cover Lower housing Carbon fibre spindle Tail light plate Bearing Tail LED Landing skid Quadrocopter specifications Length 375 mm Height... - Page 17 Live Video Streaming and flight control via WiFi This quadrocopter comes with a WiFi camera already pre-installed. The device uses advanced image compression technology to enable you to stream live video on your smartphone at a distance of 50 to 70 meters using WiFi.
- Page 18 Phone Holder assembly WIFI Webcam Phone Holder (Illustration) QR code for QR code for (GooglePlay Android) WIFI UFO WIFI UFO (GooglePlay)
- Page 19 Technical specification Function Specifications 0.3 megapixel Camera Video encoding format H.264 rate of 25 to 30 frames per second Video sampling Image Resolution VGA (640*840) Transmitting frequency range 2.412-2.484 GHz Supports standard support WI-FI 802.11 b / g / n standards Transmission bit rate 135/54/48/36/24/18/12/9/6 1M ( adaptive ) Throughput...
