ControlNet Coax BNC2TNC
Adapter
Catalog Number 1786-BNC2TNC
What's in This Document
Use this document as a guide when you install a ControlNet™ BNC2TNC Adapter.
Topic:
For information on how to plan and install your
IMPORTANT
ControlNet cable system, see the ControlNet Coax
Media System Planning and Installation Manual,
publication 1786-6.2.1 and the ControlNet Ex Media
Planning and Installation Manual, 1797-6.2.1.
Installation Instructions
Page:
2
3
4
4
5
6
8
9
9
Publication 1786-IN002A-US-P - May 2000
Advertisement
Table of Contents
Related Manuals for Allen-Bradley ControlNet 1786-BNC2TNC
Summary of Contents for Allen-Bradley ControlNet 1786-BNC2TNC
-
Page 1: Installation Instructions

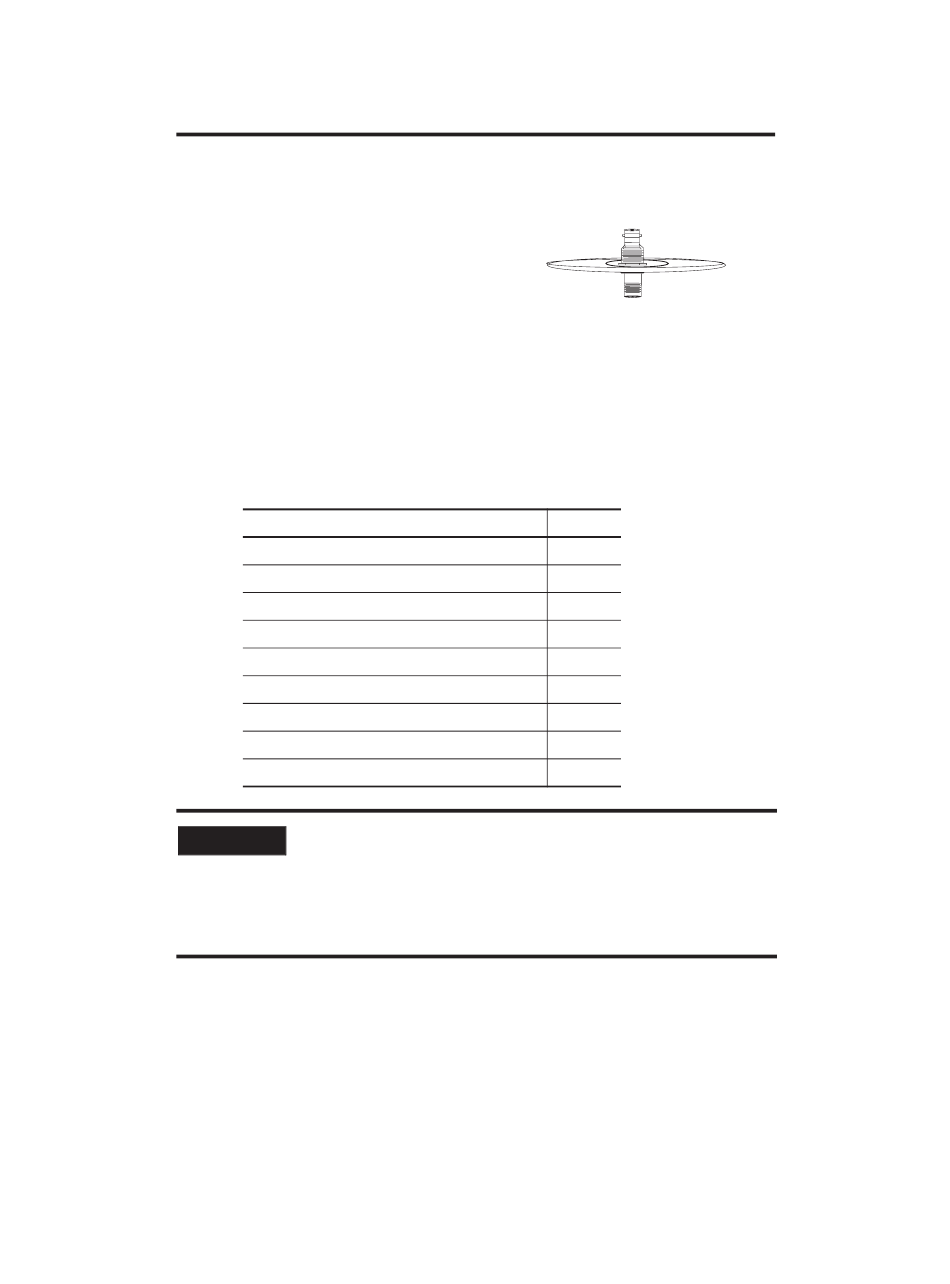

Installation Instructions ControlNet Coax BNC2TNC Adapter Catalog Number 1786-BNC2TNC What’s in This Document Use this document as a guide when you install a ControlNet™ BNC2TNC Adapter. Topic: Page: Important User Information European Communities (EC) Directive Compliance Verify Your Package Contents Why Use the 1786-BNC2TNC Coax Adapter Select a Location to Install the Adapter Install the Connector... - Page 2 ControlNet Coax BNC2TNC Adapter Verify Your Package Contents Be certain that you have these items before you discard any packing material. D ring lock washer adapter If an item is missing or incorrect, contact your distributor or sales office. Why Use the 1786-BNC2TNC Coax Adapter Use the BNC2TNC Coax adapter to connect a BNC coax cable segment to a TNC coax cable segment.
- Page 3 ControlNet Coax BNC2TNC Adapter 4. Attach cables according to your network topology. Harsh Environment Enclosure To Node 1786-RPA 1786-RPCD 1786-RPCD 1786-RPCD 1786-RPCD REPEATER DUAL COPPER MODULE REPEATER DUAL COPPER MODULE REPEATER DUAL COPPER MODULE REPEATER DUAL COPPER MODULE 1786-RPCD 1786-RPCD 1786-RPCD 1786-RPCD Sealed...
-
Page 4: Specifications
ControlNet Coax BNC2TNC Adapter Specifications The following table lists the specifications for the ControlNet BNC2TNC Adapter. Environmental Specifications Operating temperature -0 to 60°C (32 to 140°F) Storage temperature -40 to 85°C (-40 to 185°F) Relative humidity 5 to 95% noncondensing Certifications IP67 truck/tap connection When adapter is wired and locked on:...
