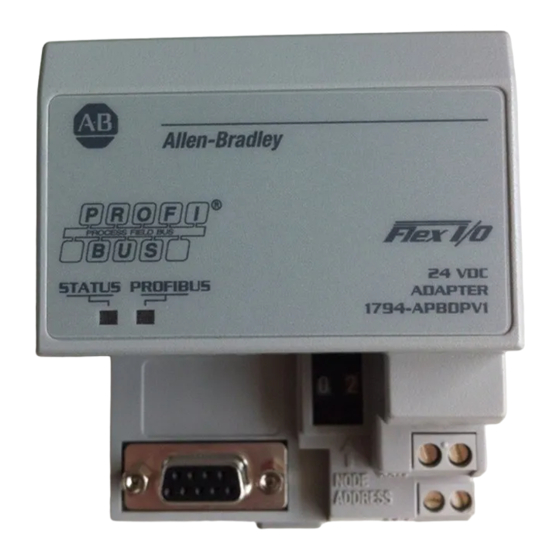

FLEX I/O PROFIBUS Communications
Adapter
1794-APBDPV1
Important User Information
Solid state equipment has operational characteristics differing from those of
electromechanical equipment. Safety Guidelines for the Application, Installation and
Maintenance of Solid State Controls (Publication
Automation sales office or online at http://www.literature.rockwellautomation.com) describes
some important differences between solid state equipment and hard-wired electromechanical
devices. Because of this difference, and also because of the wide variety of uses for solid
state equipment, all persons responsible for applying this equipment must satisfy themselves
that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or
consequential damages resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes.
Because of the many variables and requirements associated with any particular installation,
Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the
examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of
information, circuits, equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of
Rockwell Automation, Inc., is prohibited.
Throughout this manual we use notes to make you aware of safety considerations.
Identifies information about practices or circumstances that can cause an
WARNING
explosion in a hazardous environment, which may lead to personal injury or
death, property damage, or economic loss.
Identifies information that is critical for successful application and understanding
IMPORTANT
of the product.
Identifies information about practices or circumstances that can lead to
ATTENTION
personal injury or death, property damage, or economic loss. Attentions
help you:
• identify a hazard
• avoid a hazard
• recognize the consequence
Environment and Enclosure
ATTENTION
This equipment is intended for use in a Pollution Degree 2 industrial
environment, in overvoltage Category II applications (as defined in IEC
publication 60664-1), at altitudes up to 2000 meters (6562 ft) without
derating.
This equipment is considered Group 1, Class A industrial equipment
according to IEC/CISPR Publication 11. Without appropriate precautions,
there may be potential difficulties ensuring electromagnetic compatibility
in other environments due to conducted as well as radiated disturbance.
This equipment is supplied as open-type equipment. It must be mounted
within an enclosure that is suitably designed for those specific
environmental conditions that will be present and appropriately designed
to prevent personal injury resulting from accessibility to live parts. The
enclosure must have suitable flame-retardant properties to prevent or
minimize the spread of flame, complying with a flame spread rating of
5VA, V2, V1, V0 (or equivalent) if non-metallic. The interior of the
enclosure must be accessible only by the use of a tool. Subsequent
sections of this publication may contain additional information regarding
specific enclosure type ratings that are required to comply with certain
product safety certifications.
In addition to this publication, see:
• Industrial Automation Wiring and Grounding Guidelines, for
additional installation requirements, Allen-Bradley publication
1770-4.1.
• NEMA Standards publication 250 and IEC publication 60529, as
applicable, for explanations of the degrees of protection provided by
different types of enclosure.
SGI-1.1
available from your local Rockwell
Installation Instructions
FLEX I/O is grounded through the DIN rail to chassis ground. Use zinc
ATTENTION
plated yellow-chromate steel DIN rail to assure proper grounding. The use
of other DIN rail materials (for example, aluminum or plastic) that can
corrode, oxidize, or are poor conductors, can result in improper or
intermittent grounding. Secure DIN rail to mounting surface approximately
every 200 mm (7.8 in.) and use end-anchors appropriately.
Preventing Electrostatic Discharge
ATTENTION
This equipment is sensitive to electrostatic discharge, which can cause
internal damage and affect normal operation. Follow these guidelines
when you handle this equipment:
• Touch a grounded object to discharge potential static.
• Wear an approved grounding wriststrap.
• Do not touch connectors or pins on component boards.
• Do not touch circuit components inside the equipment.
• If available, use a static-safe workstation.
• Store the equipment in appropriate static-safe packaging when not
in use.
European Hazardous Location Approval
The following modules are European Zone 2 approved: 1794-APBDPV1
European Zone 2 Certification (The following applies when the product bears the
Ex or EEx Marking)
This equipment is intended for use in potentially explosive atmospheres as defined by
European Union Directive 94/9/EC and has been found to comply with the Essential Health
and Safety Requirements relating to the design and construction of Category 3 equipment
intended for use in potentially explosive atmospheres, given in Annex II to this Directive.
Compliance with the Essential Health and Safety Requirements has been assured by
compliance with EN 60079-15.
Observe the following additional Zone 2 certification requirements:
IMPORTANT
• This equipment is not resistant to sunlight or other sources of UV
radiation.
• This equipment must be installed in an enclosure providing at least
IP54 protection when applied in Class I, Zone 2 environments.
• This equipment shall be used within its specified ratings defined by
Allen-Bradley.
• Provision shall be made to prevent the rated voltage from being
exceeded by transient disturbances of more than 40% when applied in
Class I, Zone 2 environments.
• Secure any external connections that mate to this equipment by using
screws, sliding latches, threaded connectors, or other means provided
with this product.
• Do not disconnect equipment unless power has been removed or the
area is known to be nonhazardous.
Publication 1794-IN114A-EN-P - July 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLEX I/O 1794-APBDPV1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Allen-Bradley FLEX I/O 1794-APBDPV1

  • Page 1 In addition to this publication, see: • Industrial Automation Wiring and Grounding Guidelines, for additional installation requirements, Allen-Bradley publication 1770-4.1. • NEMA Standards publication 250 and IEC publication 60529, as applicable, for explanations of the degrees of protection provided by different types of enclosure.
  • Page 2: Explosion Hazard

    2 FLEX I/O PROFIBUS Communications Adapter North American Hazardous Location Approval FLEX I/O PROFIBUS Adapter 1794-APBDPV1 The following modules are North American Hazardous Location approved: 1794-APBDPV1. The following information applies Informations sur l’utilisation de cet when operating this equipment in équipement en environnements dangereux : hazardous locations: Products marked “CL I, DIV 2, GP A, B, C, D”...
  • Page 3 FLEX I/O PROFIBUS Communications Adapter 2. Disconnect any wiring jumpered to the adjacent terminal base. Connect Wiring for your Module If you connect or disconnect the PROFIBUS cable with power applied to this If you connect or disconnect wiring while the field-side power is on, an WARNING WARNING module or any device on the network, an electrical arc can occur.
  • Page 4 4 FLEX I/O PROFIBUS Communications Adapter 7. Connections G and F are used to pass +V DC power (G) and -V common Indicators (F) to the next module in the series (if required). When connecting wiring, torque terminal screws D, E, F, and G to 0.8 Nm ATTENTION (7 lb-in).
  • Page 5: Mounting Dimensions

    Mounting Dimensions Environmental Specifications Module 1794-APBDPV1 Millimeters Operating temperature IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, Operating Dry Heat), (Inches) (2.3) IEC 60068-2-14 (Test Nb, Operating Thermal Shock): (1.4) 0…55 °C (32…131 °F) Storage temperature IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), (0.83) IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock):...
