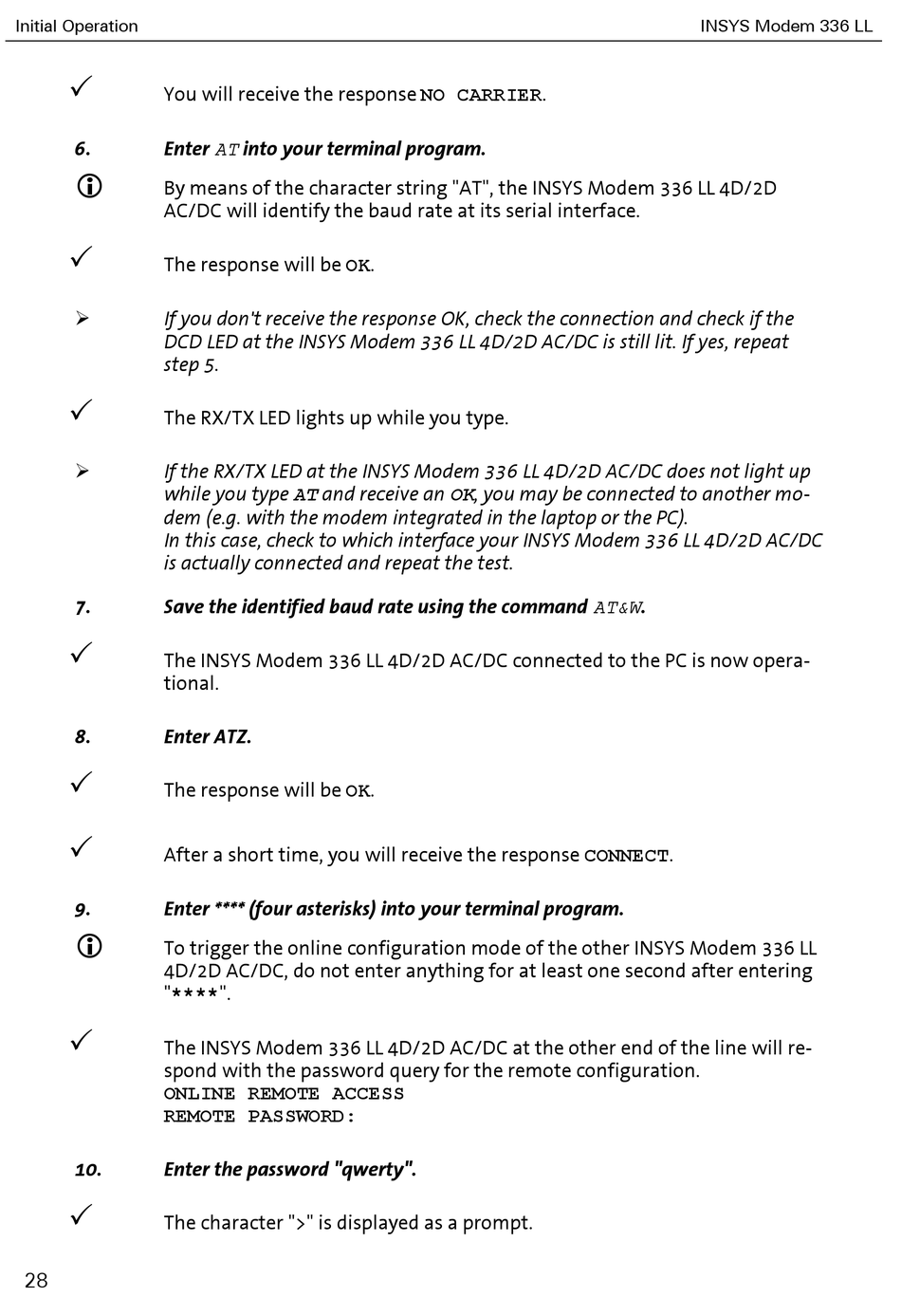

Initial Operation

You will receive the response NO CARRIER.
6. Enter AT into your terminal program.

By means of the character string "AT", the INSYS Modem 336 LL 4D/2D
AC/DC will identify the baud rate at its serial interface.

The response will be OK.

If you don't receive the response OK, check the connection and check if the
DCD LED at the INSYS Modem 336 LL 4D/2D AC/DC is still lit. If yes, repeat
step 5.

The RX/TX LED lights up while you type.

If the RX/TX LED at the INSYS Modem 336 LL 4D/2D AC/DC does not light up
while you type AT and receive an OK, you may be connected to another mo-
dem (e.g. with the modem integrated in the laptop or the PC).
In this case, check to which interface your INSYS Modem 336 LL 4D/2D AC/DC
is actually connected and repeat the test.
7. Save the identified baud rate using the command AT&W.

The INSYS Modem 336 LL 4D/2D AC/DC connected to the PC is now opera-
tional.
8. Enter ATZ.

The response will be OK.

After a short time, you will receive the response CONNECT.
9. Enter **** (four asterisks) into your terminal program.

To trigger the online configuration mode of the other INSYS Modem 336 LL
4D/2D AC/DC, do not enter anything for at least one second after entering
"****".

The INSYS Modem 336 LL 4D/2D AC/DC at the other end of the line will re-
spond with the password query for the remote configuration.
ONLINE REMOTE ACCESS
REMOTE PASSWORD:
10. Enter the password "qwerty".

The character ">" is displayed as a prompt.
