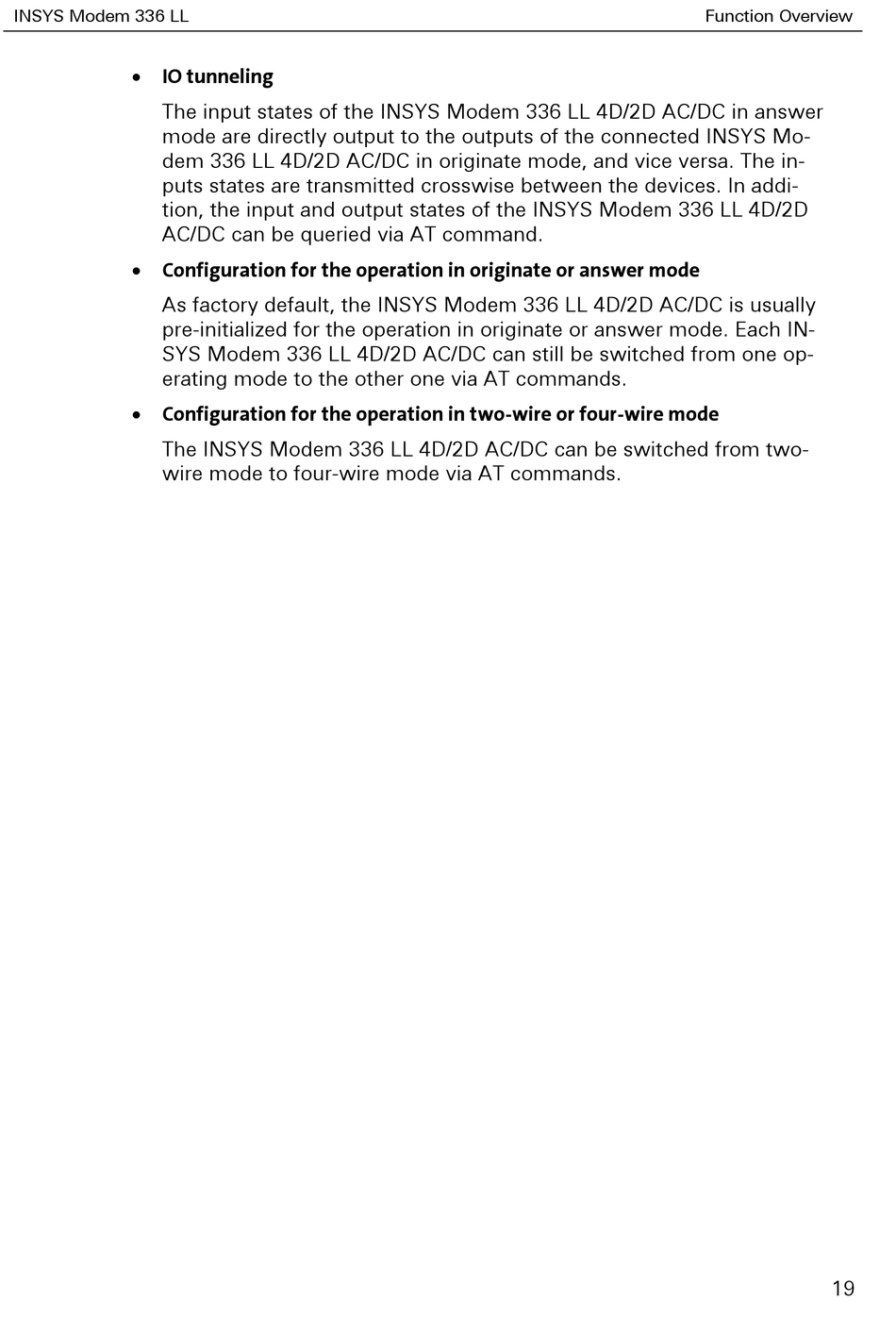

INSYS Modem 336 LL

 IO tunneling

The input states of the INSYS Modem 336 LL 4D/2D AC/DC in answer

mode are directly output to the outputs of the connected INSYS Mo-

dem 336 LL 4D/2D AC/DC in originate mode, and vice versa. The in-

puts states are transmitted crosswise between the devices. In addi-

tion, the input and output states of the INSYS Modem 336 LL 4D/2D

AC/DC can be queried via AT command.

 Configuration for the operation in originate or answer mode

As factory default, the INSYS Modem 336 LL 4D/2D AC/DC is usually

pre-initialized for the operation in originate or answer mode. Each IN-

SYS Modem 336 LL 4D/2D AC/DC can still be switched from one op-

erating mode to the other one via AT commands.

 Configuration for the operation in two-wire or four-wire mode

The INSYS Modem 336 LL 4D/2D AC/DC can be switched from two-

wire mode to four-wire mode via AT commands.

Function Overview
