INSYS Modem 336 LL
6.2
Terminal Connections on the Top

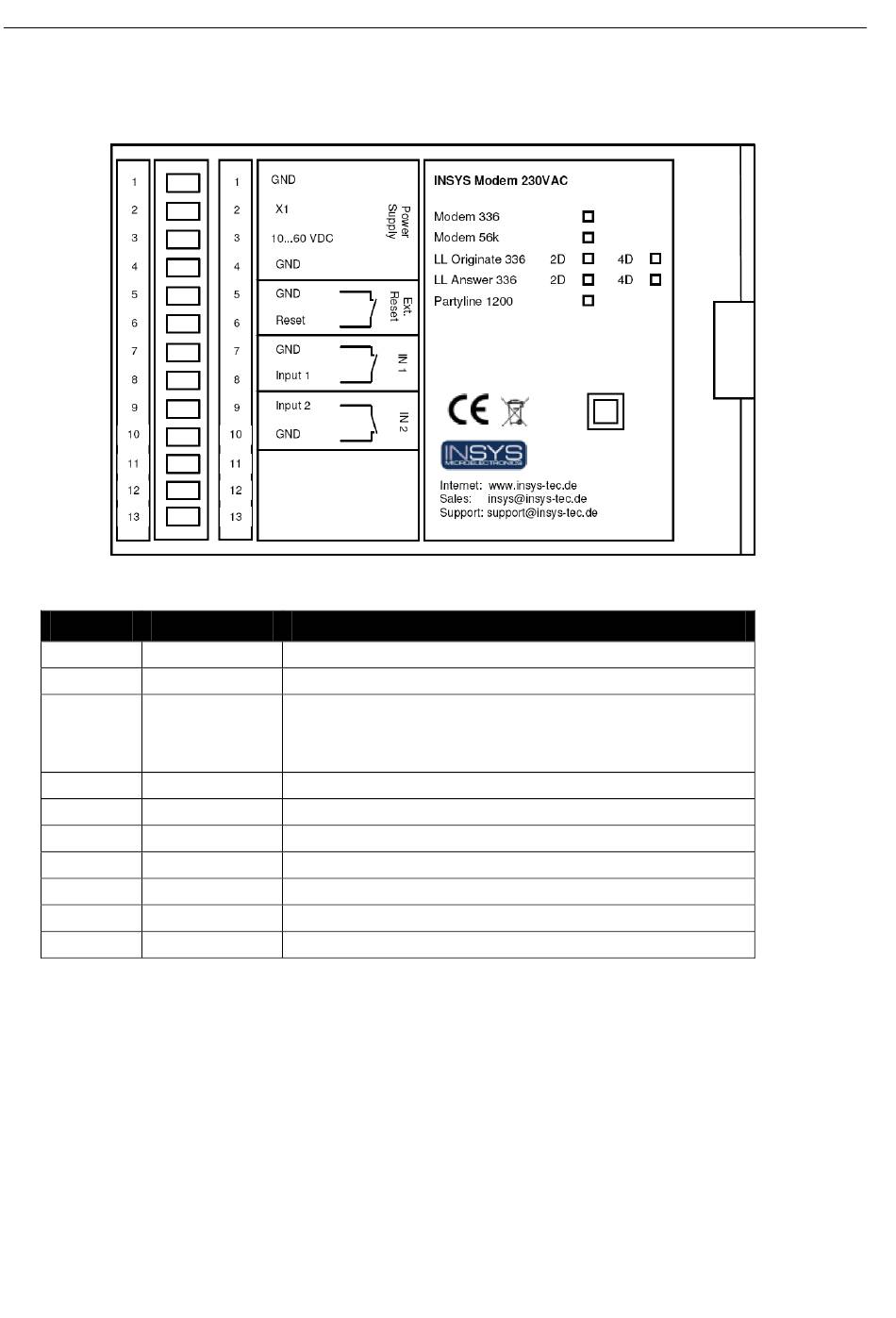

Figure 3: Connections on the top of the device
Terminal Description
1
GND
2
X1
3
10..60V DC
4
GND
5
GND
6
Reset
7
GND
8
Input 1
9
Input 2
10
GND
Table 7: Description of the connections on the top of the device
Description
Ground
Reserved
Power supply 10 – 60 V DC (as an alternative or also redun-
dant to the operation with 100 – 240 V AC at the terminals
14 and 15)
Ground
Ground
Reset input
Ground
Alarm input 1
Alarm input 2
Ground
Connections
15
